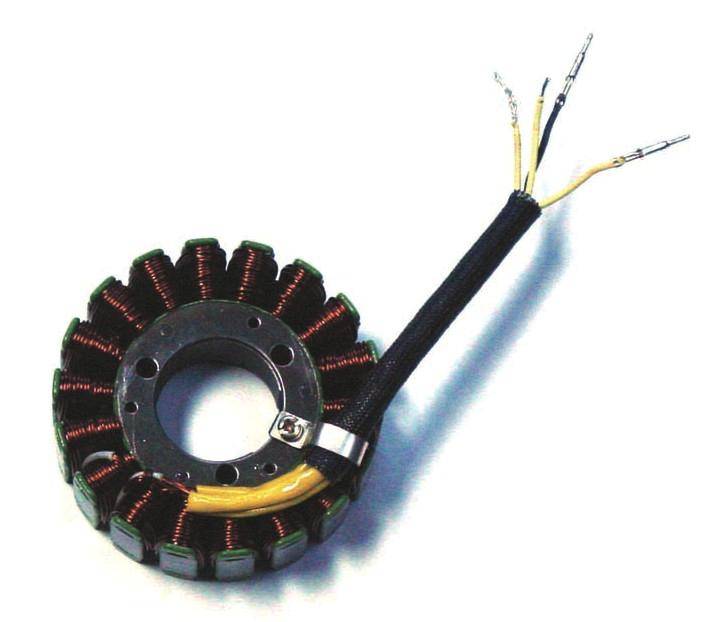

Magneto Stator Compatible With 1995-2003 Sea-Doo Gsx Gtx Spx Xp 800 Rx Rx X Xp Ltd 951 Lrv Sp 720

004-200*3
Replaces Part Numbers

290886588 / 420886588
Cross-Reference: 14-104 (SBT)
Cross-Reference: RM01340 (RM Stator)


Specifications

Type: 18-Pole Magneto Stator, 6-Wire
Resistance: 0.9 Ohms (Yellow-to-Yellow)
Output: 45-70 VAC @ 3500 RPM
Engine: Rotax 787/947 2-Stroke Twin RAVE
Not for DI (Direct Injection) models


Applications

SP 720, GSX/GTX/SPX/XP 800, GSX/GTX/LRV/RX/RX X/XP/XP LTD 951
Challenger 800/1800, Speedster 800, Sportster LE 951 (1995-2003)


Magneto Stator for Sea-Doo Rotax 2-Stroke 800 951 PWC
Replacement magneto stator for Sea-Doo OEM 420886588, cross-references 14-104 and RM01340. The stator is the charging and ignition power source for the Rotax 787 and 947 RAVE engines. When the stator windings short or open, electrical output drops, causing battery drain, weak spark, misfires, and eventual no-start. The Rotax 2-stroke twin engine was used across Sea-Doo PWC and jet boat models from 1995 through 2003. Test stator resistance with a multimeter — specification is 0.9 ohms between yellow wires. Plug-in replacement with OEM-matched 6-pin connector.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $282.47
Sale: $161.41
Save: 43%
Save: $121.06
Qty:
Free Shipping!

Description

Applications

Sea-Doo Personal Watercraft (1995-2002):
SP 720, GSX 800, GTX 800, SPX 800, XP 800
GSX 951, GTX 951, LRV 951, RX 951, RX X 951
XP 951, XP LTD 951

Sea-Doo Jet Boat (1996-2003):
Challenger 800/1800, Speedster 800, Sportster LE 951

Details

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W1.0000” x H1.0000” x L1.0000”
  • Free Shipping!
