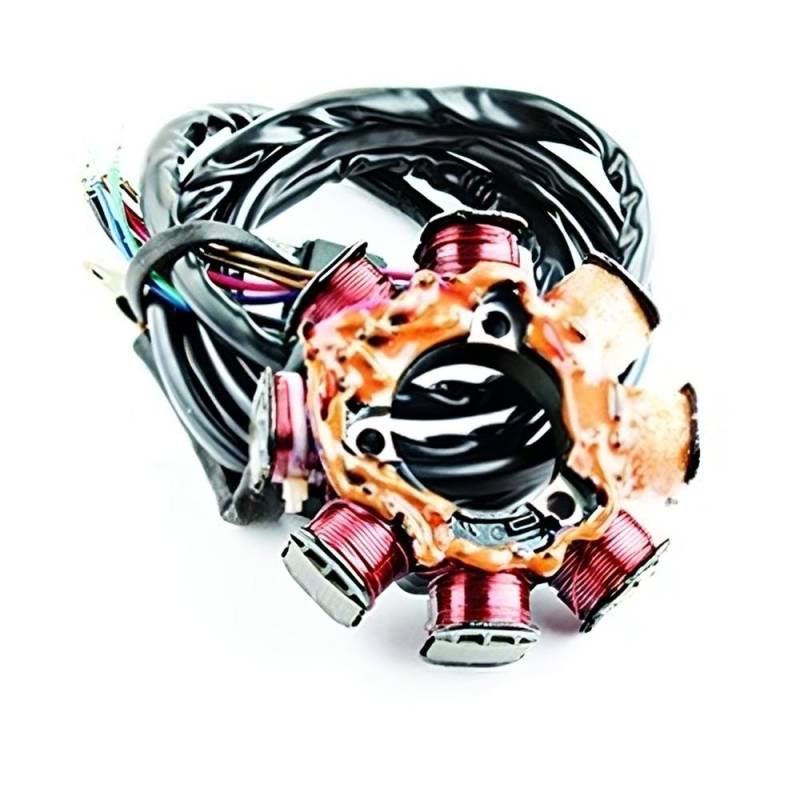

Stator Coil Assembly Compatible With 1995 Kawasaki Zxi 750 Jh750-C1 743Cc 2-Cylinder 2-Stroke Twin

004-205-04A1
Replaces Part Numbers

Kawasaki: 21003-3731
SBT: 14-207
RM Stator: RM01532


Specifications

Type: Magneto Stator Assembly
Alternator: 1.2 Ohms (Brown-Brown)
Pickup Coil: 522 Ohms (Green-Blue)
Source Coil: 345 Ohms (Red-Purple)
Configuration: 7-Wire
Engine: 743cc 2-Stroke Twin 83 HP


Applications

1995 Kawasaki 750 ZXI (JH750-C1)


Replacement Stator for 1995 Kawasaki ZXI 750
Direct replacement for Kawasaki OEM 21003-3731 on the 1995 750 ZXI. The magneto stator is the primary power source for the electrical and ignition system on the 743cc 2-stroke twin engine. The stator generates AC voltage as the flywheel magnets spin past the coil poles. Over time, stator windings degrade from heat and vibration, causing weak output that results in a dead battery, misfires, and no-start conditions. Test alternator resistance: 1.2 ohms between brown wires. Pickup coil: 522 ohms between green and blue. 7-wire configuration with OEM connector. Easy installation with standard hand tools.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $238.88
Sale: $136.50
Save: 43%
Save: $102.38
Qty:
Free Shipping!

Description

Applications

Kawasaki ZXI 750 (1995):
750 ZXI JH750-C1
743cc 2-Cylinder 2-Stroke Twin 83 HP

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 3.1 lbs.
  • W7.0000” x H7.0000” x L11.0000”
  • Free Shipping!
