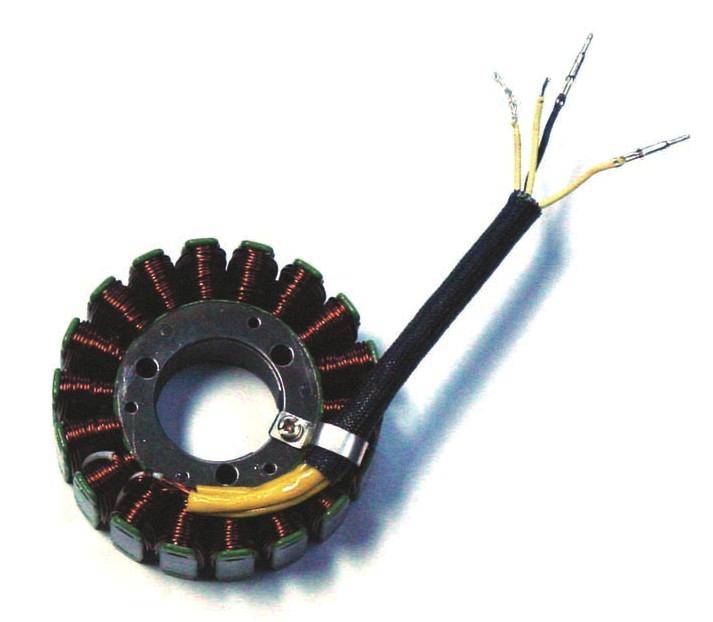

Stator Coil Assembly Compatible With 1995-2003 Sea-Doo Gsx Gtx Xp Spx 800 951 Rx Lrv Sp 720

004-200*2
Replaces Part Numbers

290886588 / 420886588
Cross-Reference: 14-104 (SBT)
Cross-Reference: RM01340 (RM Stator)


Specifications

Type: 18-Pole Magneto Stator, 6-Wire
Resistance: 0.9 Ohms (Yellow-to-Yellow)
Output: 45-70 VAC @ 3500 RPM
Engine: Rotax 787/947 2-Stroke Twin RAVE
Not for DI (Direct Injection) models


Applications

SP 720, GSX/GTX/SPX/XP 800, GSX/GTX/LRV/RX/RX X/XP/XP LTD 951
Challenger 800/1800, Speedster 800, Sportster LE 951 (1995-2003)


Replacement Stator for Sea-Doo GSX GTX XP RX Rotax 787 947
Direct replacement for Sea-Doo OEM 290886588. The magneto stator is the primary power source for the electrical system on carbureted Rotax 2-stroke engines. The stator generates AC voltage as the flywheel magnets spin past the 18 coil poles. Over time, stator windings degrade from heat and vibration, causing weak output that results in a dead battery, misfires, and no-start conditions. This replacement fits all 1995-2003 Sea-Doo 800cc and 951cc carbureted models including GSX, GTX, SPX, XP, RX, LRV, and jet boat models. Easy installation with standard hand tools.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $282.47
Sale: $161.41
Save: 43%
Save: $121.06
Qty:
Free Shipping!

Description

Applications

Sea-Doo Rotax 800cc/951cc (1995-2003):
GSX, GTX, SPX, XP 800, SP 720
GSX, GTX, LRV, RX, RX X, XP, XP LTD 951
Challenger 800/1800, Speedster, Sportster LE

Details

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W1.0000” x H1.0000” x L1.0000”
  • Free Shipping!
