OEM PART NUMBERS:
• General Pump: TS1511 / TSS1511 / TS4040
• Interpump: WS151
• Hotsy: 5-2332 / 5-2335 / 8.715-355.0 / 87153550 / 830162
• Karcher: 8.753-483.0 / 87534830 / 8.702-650.0 / 87026500
• Landa/Karcher: 102084 / 87026360 / 8.702-636.0
• Graco: 801472
SPECIFICATIONS:

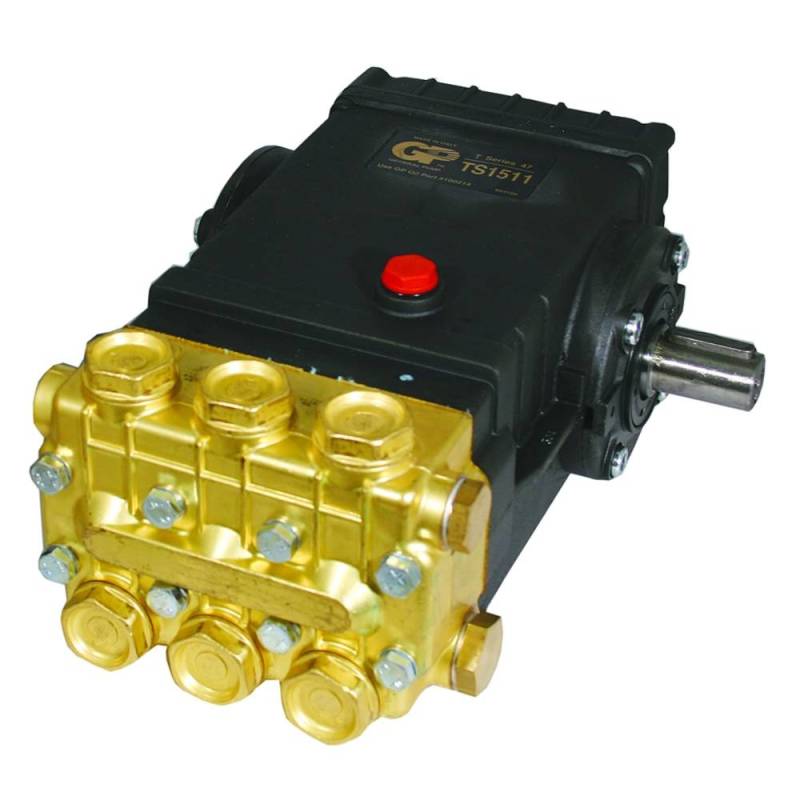

• Type: Triplex Plunger Pump (Belt Drive)
• Series: General Pump T-47 Series
• Shaft: 24mm (0.945") Solid — Right Hand
• Max Discharge Pressure: 3500 PSI
• Max Volume: 4.0 GPM
• Max Pump Speed: 1450 RPM
• Required HP: 9.6 EBHP / 13.0 GHP
• Plunger Bore: 0.787" (20mm)
• Plunger Stroke: 0.472" (12mm)
• Max Inlet Pressure: 125 PSI
• Max Fluid Temperature: 165°F
• Crankcase Oil Capacity: 40.6 oz (SAE 30W Non-Detergent)
• Inlet Ports: 1/2" FPT (x2)
• Discharge Ports: 3/8" FPT (x2)
• Manifold: Forged Brass (Lifetime Warranty)
• Plungers: Solid Ceramic
• Bearings: Heavy-Duty Tapered Roller
• Valves: Unitized Stainless Steel Inlet/Discharge
• Crankcase: Die-Cast Anodized Aluminum Oil-Bath
• Weight: 32 lbs
• Condition: New
APPLICATIONS:
• Commercial / Industrial Belt-Drive Cold-Water Pressure Washers
• NorthStar, Hotsy, Landa, Karcher, Graco Belt-Drive Models
• Custom Skid-Mount / Trailer-Mount Pressure Wash Systems
• Car Wash / Self-Service Bay Systems
• Requires 24mm Solid Shaft — Unloader Sold Separately
