OEM PART NUMBERS:
• Scag: 46020 / 461663 / 46400 / 46631
• Scag: 41001 / 41007 / 41008
• Ferris: 1530301 / 30301 / 5030301
• Ferris: 5061033 / 5061033SM
• Encore: 71460007
• Snapper/Kees: 303630
• Wright: 71460007 / 71460126
SPECIFICATIONS:
• Product Type: Spindle Assembly
• Housing Material: Cast Iron

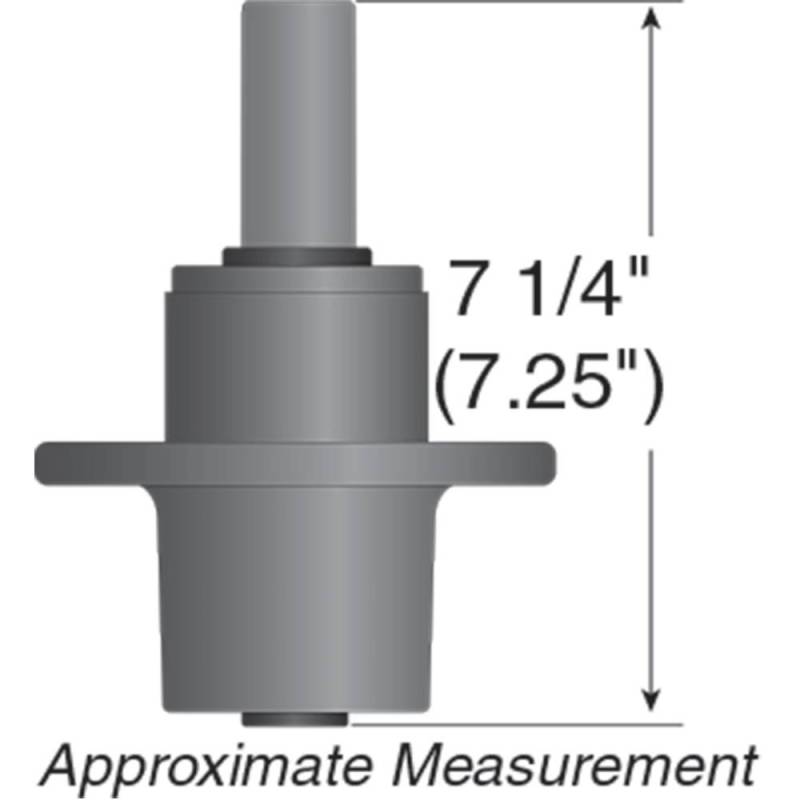

• Overall Height: 7-1/4"
• Shaft OD: 1-1/8"
• Bearing Type: Taper Roller Bearings
• Includes: Grease Fitting
• Mounting Holes: 4
• Deck Sizes: 36" / 42" / 48" / 52" / 61" / 72"
• Condition: New
APPLICATION:
• Ferris: ISZ Zero Turn, Dual Drive Walk Behind, IS1000Z/IS3000Z/IS4000Z
• Scag: Cheetah, Cheetah II, Tiger Cat, Tiger Cat II, Tiger Cub
• Scag: Sabre Tooth Tiger, Turf Tiger, Turf Tiger II, Wildcat
• Scag: Walk Behind, V-Ride, Simply SSZ Series
• Encore, Wright Stander, Snapper models
• Verify OEM part number from your original unit before ordering

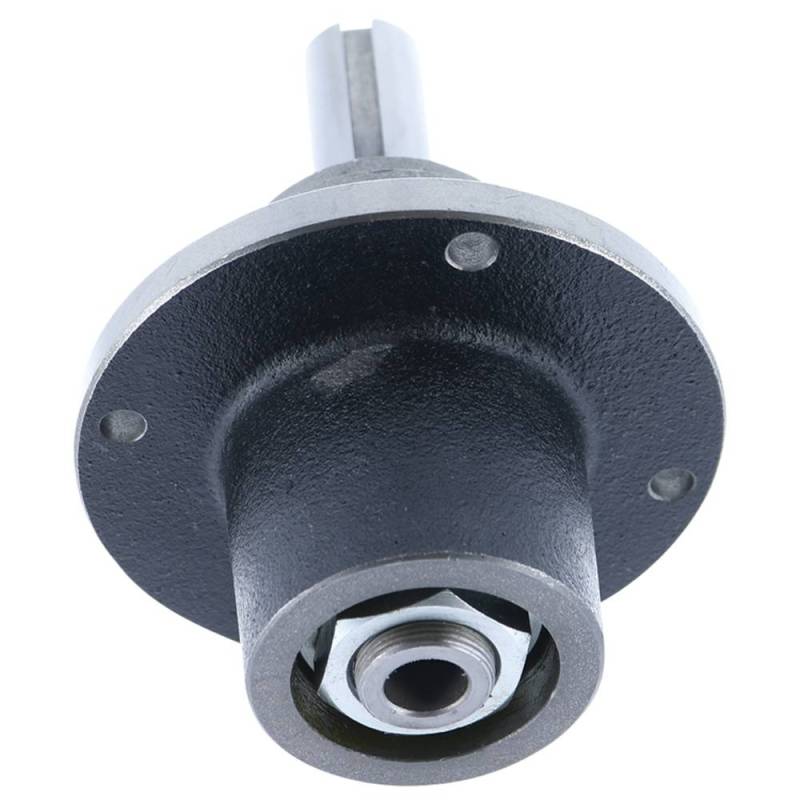

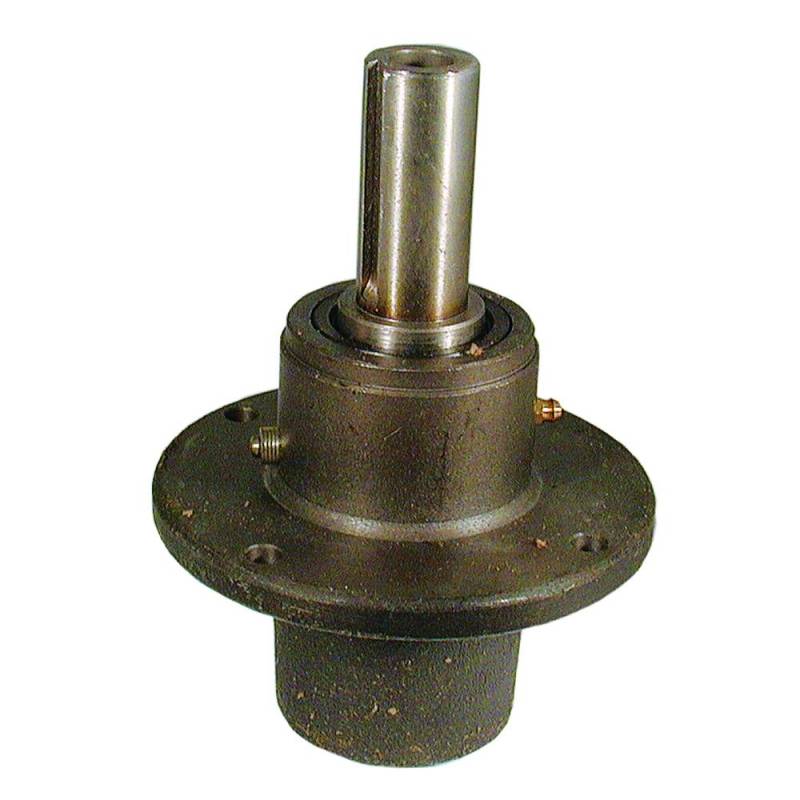

Cast Iron Spindle Assembly for Commercial Zero Turn and Walk Behind Mowers
Direct replacement cast iron spindle assembly for Scag, Ferris, Encore, Wright, and Snapper commercial mowers. This heavy-duty spindle features a 7-1/4" overall height with 1-1/8" shaft OD, cast iron housing, and taper roller bearings with included grease fitting. Fits 36" through 72" cutting decks across Cheetah, Cheetah II, Tiger Cat, Tiger Cat II, Tiger Cub, Sabre Tooth Tiger, Turf Tiger, Turf Tiger II, Wildcat, V-Ride, and walk behind models. Replaces Scag 46020, 461663, 46400, 46631, Ferris 1530301, 5061033, and all superseded OEM numbers.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
