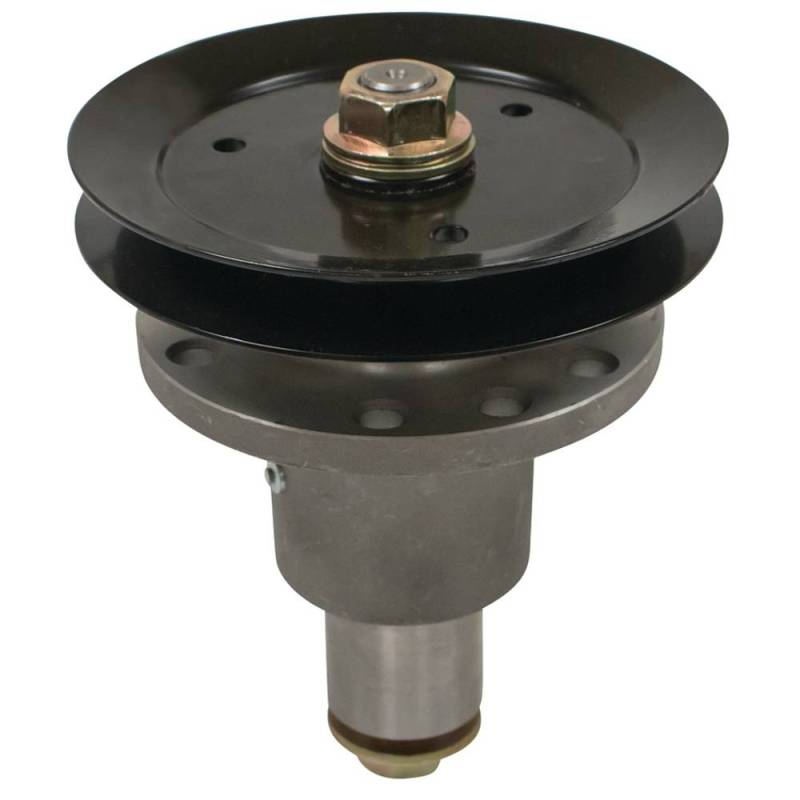

Heavy Duty Spindle Assembly Compatible With Exmark Lazer Z Ac Xs Turf Ranger Tracer 52 60 72 Inch

OEM PART NUMBERS:
• Exmark: 103-3200 / 1033200 (superseded)
• Exmark: 103-8075 / 1038075 (current)
• Exmark: 103-8323 / 1038323
• Exmark: 103-3206 / 1033206

SPECIFICATIONS:
• Type: Complete Cutter Housing Assembly (Spindle Assembly)
• Overall Height: 6-1/2"
• Housing Outer Diameter: 5-1/2"
• Pulley Outer Diameter: 6-1/2"
• Bolt: 5/8"-18 x 1-3/8"
• Includes: Pulley, Pulley Nut, Cup Washers, Bolt, Dust Cover, Relief Valve, Grease Zerk
• Condition: New

APPLICATION:
• Exmark Turf Tracer 52"/60" Deck
• Exmark Turf Ranger 52" Deck
• Exmark Front Mount FMD524/FMD604
• Exmark Lazer Z AC/AS/LC/XP/XS 52"/60"/72" Deck
• Exmark Lazer Z Diesel 60"/72" Deck
• May be outer spindle only on some models — verify with parts diagram

Deck Spindle Assembly - Exmark Turf Tracer Turf Ranger and Lazer Z Mowers
High-quality replacement spindle assembly for Exmark commercial mowers with 52-inch, 60-inch, and 72-inch cutting decks. Precision-machined housing at 6-1/2 inch height with 5-1/2 inch OD and 6-1/2 inch pulley. Complete with pulley, nut, cup washers, bolt, dust cover, relief valve, and grease zerk. Replaces Exmark 103-3200, 103-8075, 103-8323, and 103-3206.
