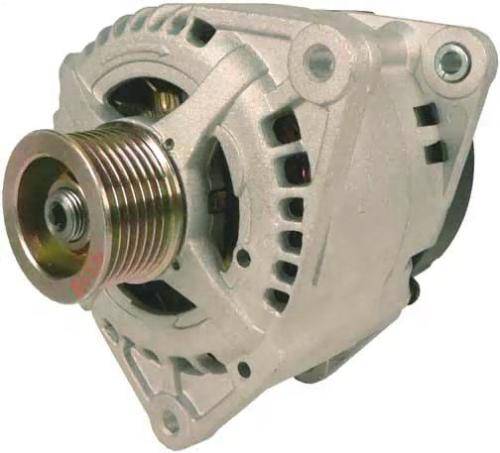

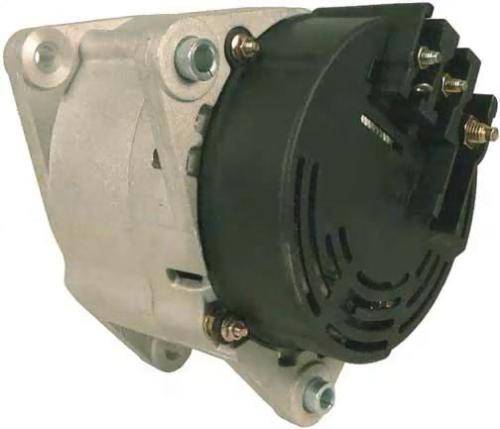

100A 12V Magneti Marelli Type Alternator Compatible With 1994-1999 Land Rover Discovery 3.9L 4.0L

OEM PART NUMBERS:
• Land Rover: AMR3107 / AMR3107E
• Land Rover: AMR4247 / YLE10124
• Land Rover: AMR2938 / AMR2938E
• Land Rover: AMR3021
• Magneti Marelli: 63321243 / 63341243 / MAN648
• Magneti Marelli: 63321240 / 63341240 / MAN822
• Magneti Marelli: 63321352 / 63321353 / 63341353
• Magneti Marelli: 54022487 / 54022543
• Magneti Marelli: 063341353010 / 063341240010
• Magneti Marelli: 20110283 / 20110284

SPECIFICATIONS:
• Type: Alternator
• Design: Magneti Marelli Type PMA (Permanent Magnet)
• Voltage: 12V
• Amperage: 100A
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley: 7-Groove Serpentine (S7) 66mm OD Solid
• B+ Terminal: M6x1.0
• Plug Code: 381
• Regulator Clock: 9:00
• Case OD: 138mm
• Polarity: Negative
• Weight: 14.545 lbs / 6.61 kg
• Condition: New

VEHICLE APPLICATIONS:
• Land Rover Discovery 3.9L/4.0L V8 (1994-1999)
• Land Rover Range Rover 3.9L/4.0L/4.6L V8 (1995-1998)
• Land Rover Defender 90 4.0L V8 (1997)
