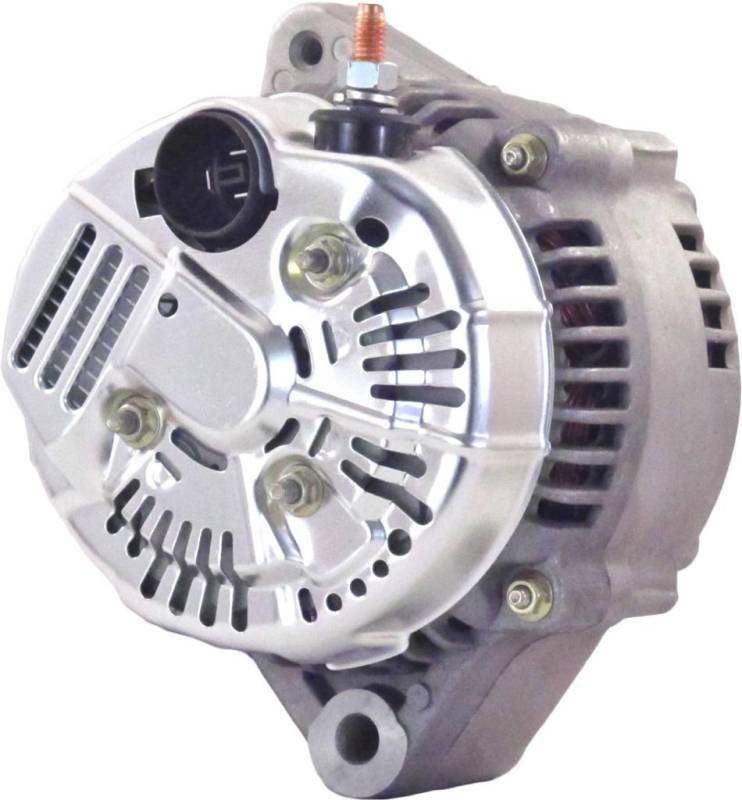

100A 12V Type Alternator Compatible With 1991-1992 Toyota Mr2 Turbo 2.0L 3S-Gte Dohc 16V Sw20 Mr2

OEM PART NUMBERS:
• Toyota: 27060-74180 / 2706074180 / 27060-74180-84 / 270607418084
• Toyota: 27060-74170 / 2706074170 / 27060-74170-84 / 270607417084
• Toyota: 27060-74250 / 2706074250 / 27060-11060 / 2706011060
• 100211-6110 / 1002116110
• 100211-8060 / 1002118060 / 100211-8380 / 1002118380
• 100211-8381 / 1002118381 / 100211-8440 / 1002118440

SPECIFICATIONS:
• Type: Alternator
• Design: Type PMA (Permanent Magnet)
• Voltage: 12V
• Amperage: 100A
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley: 4-Groove Serpentine (S4) 55mm Grooved OD / 60mm Overall OD Solid
• B+ Terminal: M6x1.0 (Output Stud: M8x1.25)
• Terminals: S (Spade) / IG (Spade) / L (Spade)
• Mount: Spool — M8x1.25 Threaded + 10.5mm Unthreaded
• Regulator Clock: 11:00
• Polarity: Negative
• Weight: 13.9 lbs / 6.32 kg
• Condition: New

VEHICLE APPLICATIONS:
• Toyota MR2 Turbo (SW20) 2.0L 3S-GTE 200HP w/ PS (1991-1992)
• Toyota MR2 (SW21) 2.2L 5S-FE 135HP w/ PS (1991-1992)
• NOTE: 100A option with power steering — verify OEM part number
