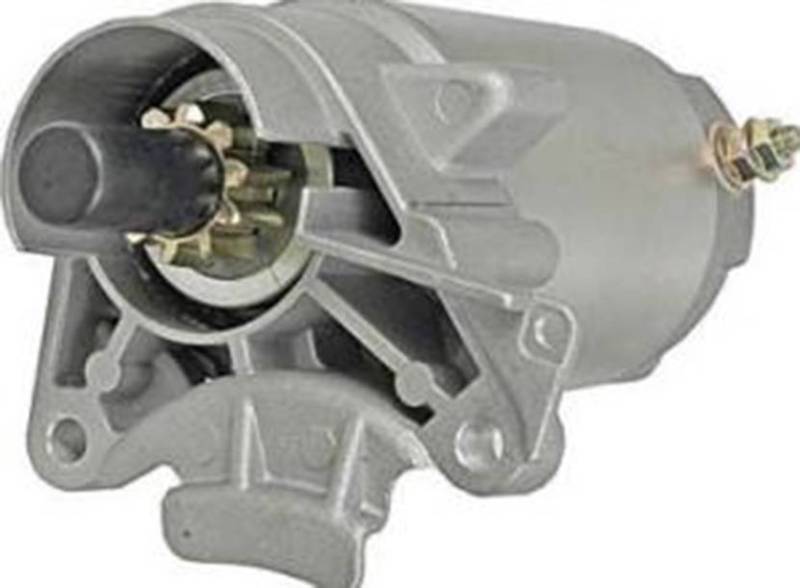

New 12V Ccw Pmdd Starter 10-Tooth Compatible With Honda H1011 H2013 H2113 Riding Mower Lawn Tractor

HONDA GXV-SERIES SMALL ENGINES (PRIMARY ENGINE FAMILY):
• Honda GXV340 — 10.7HP Single-Cylinder OHV Vertical-Shaft Small Engine (337cc displacement)
• Honda GXV390 — 13HP Single-Cylinder OHV Vertical-Shaft Small Engine (389cc displacement)
• Both engines part of Honda's GXV-series of vertical-shaft engines designed primarily for ride-on lawn equipment

HONDA H-SERIES RIDING MOWERS & LAWN TRACTORS:
• Honda H1011 Series Riding Mower with Honda GXV340 / GXV390 Vertical-Shaft Engine
• Honda H2013 Series Riding Mower with Honda GXV340 / GXV390 Vertical-Shaft Engine
• Honda H2113 Series Riding Mower / Lawn Tractor with Honda GXV340 / GXV390 Vertical-Shaft Engine

TORO ZERO-TURN MOWER WITH HONDA ENGINE (2005-2007):
• 2005-2007 Toro Precision Z320 H Riding Mower with Honda GXV390 13HP Vertical-Shaft Engine

HONDA GXV-SERIES ENGINE CONTEXT:
• The GXV designation in Honda's small engine lineup indicates Vertical-Shaft (V) configuration of the GX-series engine family
• Honda GXV340 produces approximately 10.7HP at 3600 RPM with 337cc displacement
• Honda GXV390 produces approximately 13HP at 3600 RPM with 389cc displacement
• Both engines are commercial-grade with cast-iron cylinder sleeves and pressurized lubrication
• Used extensively in lawn and garden equipment, light commercial applications, and industrial pressure washers

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.193" (30.3mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Honda / Johnson Electric design
• Field housing length: 88mm
• Mounting: 2 ears (both 8mm unthreaded)
• Weight: 6 lbs (2.73 kg)
• OEM Manufacturer: Honda / Johnson Electric
• Will NOT fit Honda GX-series HORIZONTAL-SHAFT engines (GX240/GX270/GX340/GX390 — those use a different starter family)
• Will NOT fit Honda GXV160 / GXV200 smaller vertical-shaft engines (different starter family)
• Will NOT fit Honda GXV530 / GXV610 / GXV620 / GXV630 V-Twin engines (different starter family)
• Will NOT fit Honda GCV160 / GCV190 / GCV200 V-series engines (different starter family)
• Will NOT fit Honda GX160 / GX200 / GX270 horizontal-shaft engines (different starter family)
• Will NOT fit Honda HRX-series push mowers (different starter family)
• Will NOT fit Toro mowers with Briggs & Stratton, Kohler, or Kawasaki engines (different starter families)
• Always verify your engine model (GXV340 OR GXV390) and Honda OEM part number before ordering
