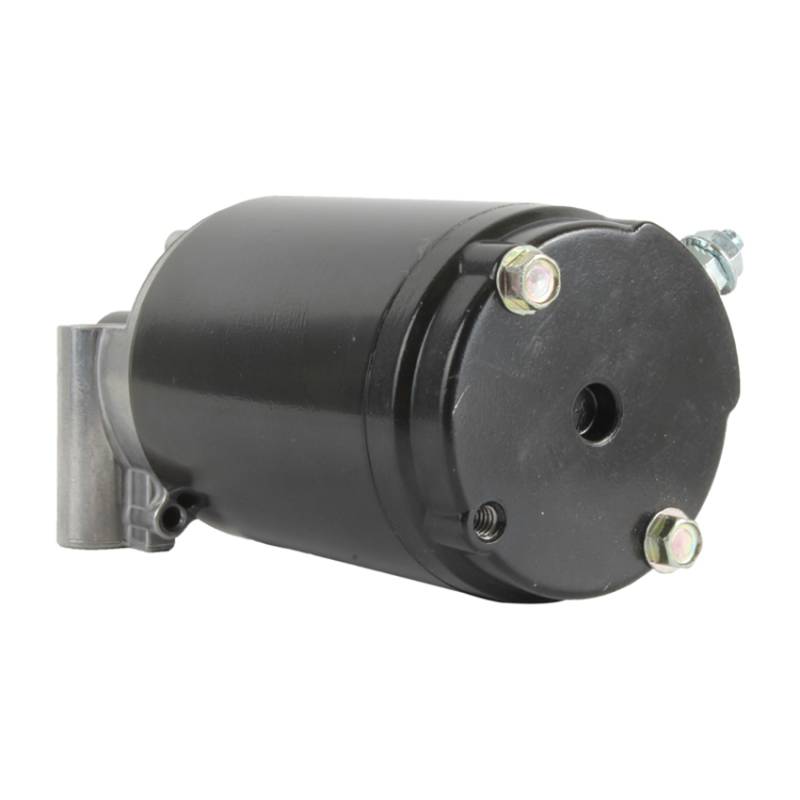

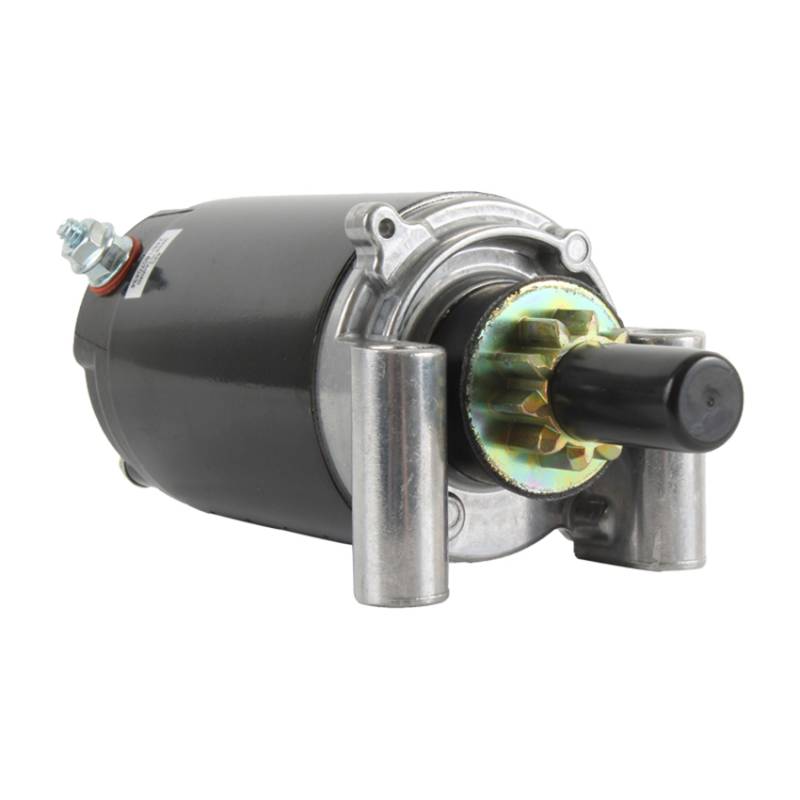

New 12V Ccw Pmdd Starter 10-Tooth Compatible With Kohler 25-098-04 25-098-05 25-098-06 25-098-07

JOHN DEERE LT-SERIES LAWN TRACTORS — KOHLER COMMAND CV (2002-2005):
• 2002 John Deere LT150 Lawn Tractor with Kohler CV15 15HP Single-Cyl Vertical-Shaft
• 2003-2005 John Deere LT150 Lawn Tractor with Kohler CV15 15HP Single-Cyl 0.43L (426cc / 26CID) Vertical-Shaft
• 2002-2005 John Deere LT160 Lawn Tractor with Kohler CV16 16HP Single-Cyl Vertical-Shaft

JOHN DEERE / SABRE 1948 LAWN TRACTORS — KOHLER CV20 V-TWIN (2000-2002):
• 2000 John Deere/Sabre 1948GV Lawn Tractor with Kohler CV20S-65560 / CV20S-65571 19.9HP V-Twin
• 2000-2002 John Deere/Sabre 1948HV Lawn Tractor with Kohler CV20S-65560 / CV20S-65571 19.9HP V-Twin

JOHN DEERE / SABRE 2148 / 2354 LAWN TRACTORS — KOHLER CV22 / CV23 V-TWIN (2000-2002):
• 2000-2002 John Deere/Sabre 2148HV Lawn Tractor with Kohler CV22S-75529 / CV22S-75542 21HP V-Twin (48" Deck)
• 2000-2002 John Deere/Sabre 2354HV Lawn Tractor with Kohler CV23S-75531 / CV23S-75541 23HP V-Twin

SCOTTS LAWN & GARDEN TRACTOR — KOHLER 23HP V-TWIN (2000-2001):
• 2000-2001 Scotts S2348 Lawn & Garden Tractor with Scotts 2-Cyl 0.67L (674cc / 41CID) Kohler CV23 23HP V-Twin Engine

KOHLER COMMAND ENGINE FAMILY — STANDALONE APPLICATIONS:
• Kohler Command CV15 — 15HP Single-Cylinder Vertical-Shaft (LT150 application)
• Kohler Command CV16 — 16HP Single-Cylinder Vertical-Shaft (LT160 application)
• Kohler Command CV20S-65560 / CV20S-65571 — 19.9HP V-Twin Vertical-Shaft (Sabre 1948 application)
• Kohler Command CV22S-75529 / CV22S-75542 — 21HP V-Twin Vertical-Shaft (Sabre 2148 application)
• Kohler Command CV23S-75531 / CV23S-75541 — 23HP V-Twin Vertical-Shaft (Sabre 2354 / Scotts S2348)

CRITICAL DIFFERENTIATION FROM:
• (this starter): 9.0mm mounting holes, 50mm flange thickness, 5.5 lbs weight, NO battery terminal on field case
• (separate starter): 8.0mm mounting holes, 53mm flange thickness, 7 lbs weight, HAS battery terminal on field case
• Both and are 12V CCW PMDD 10-tooth starters with very similar specs and overlapping applications
• They are NOT interchangeable due to the mounting hole diameter difference (9.0mm vs 8.0mm)
• Buyers must verify the mounting hole diameter on their original starter before ordering

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.211" (30.77mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric / UT design
• Field case length: 3.81" / 97mm
• Mounting: 2 ears (both 9.0mm ID unthreaded) with 50mm thick mounting flanges
• Weight: 5.5 lbs (2.50 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• Will NOT fit applications using starter (different 8.0mm mounting holes)
• Will NOT fit John Deere STX30 / STX38 / STX46 (those use with 8.0mm mounting holes)
• Will NOT fit Kohler K-Series K-161/K-181 cast-iron L-head engines (those use )
• Will NOT fit Kohler M-Series Magnum M-8 thru M-16 engines (those use )
• Will NOT fit Kohler Courage SV-Series engines (different starter family)
• Will NOT fit John Deere D100/D110/D120/D130/D140/D150/D160/D170 (different engine/starter)
• Will NOT fit John Deere LA105/LA115/LA125/LA135/LA145/LA155/LA165/LA175 (different engine/starter)
• Will NOT fit John Deere X300/X310/X324/X340 (different engine/starter)
• Always verify your OEM part number AND mounting hole diameter from the original starter before ordering
