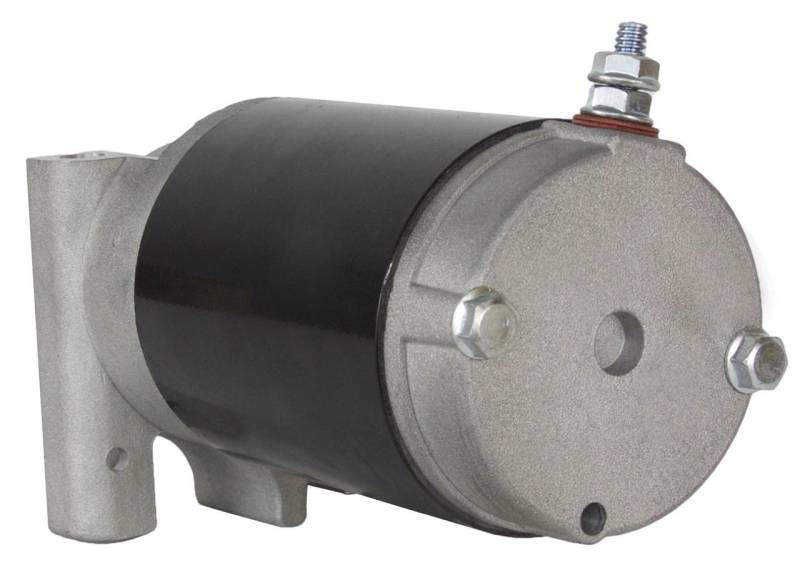

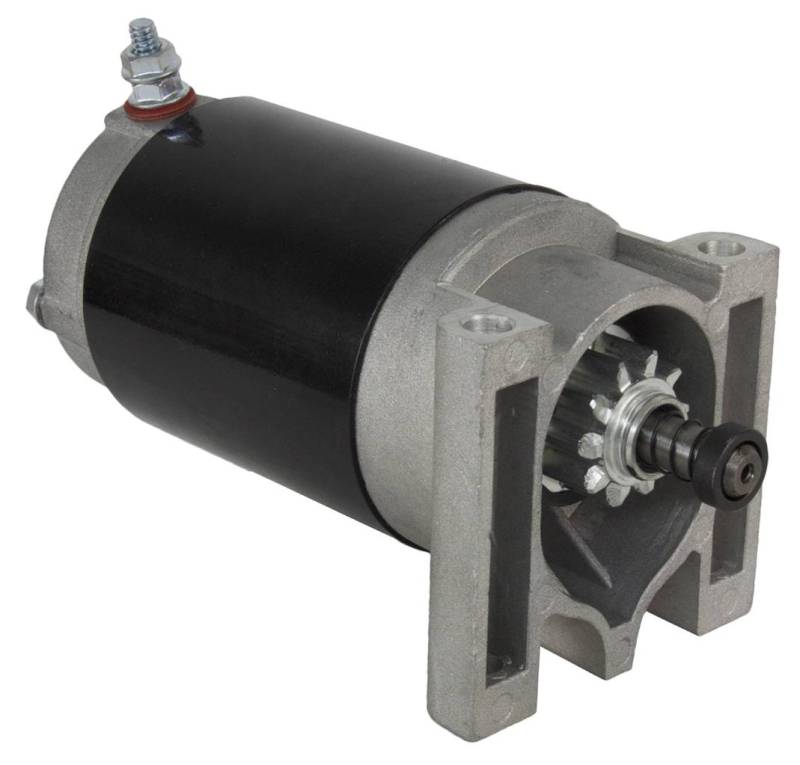

New 12V Ccw Pmdd Starter 10-Tooth Compatible With Honda Gx610 18Hp Gx620 20Hp V-Twin

HONDA GX/GXV 600-SERIES V-TWIN ENGINE FAMILY (PRIMARY ENGINES):
• Honda GX610 — 18HP V-Twin OHV Horizontal-Shaft Engine (614cc displacement)
• Honda GX620 — 20HP V-Twin OHV Horizontal-Shaft Engine (614cc displacement)
• Honda GXV610 — 18HP V-Twin OHV Vertical-Shaft Engine (614cc displacement)
• Honda GXV620 — 20HP V-Twin OHV Vertical-Shaft Engine (614cc displacement)
• Honda GX620K1 — 20HP V-Twin Horizontal-Shaft Engine (K1 first major revision)
• All engines part of Honda's GX/GXV 600-series workhorse commercial V-Twin family

HONDA POWER EQUIPMENT — GENERATORS, MOWERS & OUTDOOR POWER:
• Honda EB11000 11000-Watt Industrial Generator with GX/GXV 600-Series V-Twin Engine
• Honda HA4118 Riding Mower with GX610 / GXV610 18HP V-Twin Engine
• Honda HA4120 Riding Mower with GX620 / GXV620 20HP V-Twin Engine
• Honda HRC7020 Commercial Walk-Behind Mower with GX610 18HP V-Twin Engine

DITCH WITCH INDUSTRIAL TRENCHING EQUIPMENT (1995-2005):
• 1995-2005 Ditch Witch Trencher 1820 with Honda GX610 18HP V-Twin Engine

RAMMAX SOIL & ASPHALT COMPACTION EQUIPMENT:
• Rammax FP2SP Plate Compactor with Honda GX620 20HP V-Twin Engine
• Rammax SP2 Self-Propelled Compactor with Honda GX620 20HP V-Twin Engine

TERRAMITE COMPACT TRACTOR/BACKHOE EQUIPMENT (1991-2005):
• 1991-2005 Terramite T5C Tractor / Backhoe / Loader with Honda GX620K1 20HP V-Twin Engine

HONDA GX/GXV 600-SERIES ENGINE CONTEXT:
• The Honda GX/GXV 600-series V-Twin engines are workhorse commercial-grade engines used widely across multiple industries
• GX = Horizontal-Shaft configuration / GXV = Vertical-Shaft configuration
• 610 designation = approximately 18HP at 3600 RPM with 614cc displacement
• 620 designation = approximately 20HP at 3600 RPM with 614cc displacement (higher-output tune)
• K1 designation = first major engine revision/update
• Used widely in commercial mowers, generators, soil compactors, asphalt compactors, trenchers, water pumps, pressure washers, and compact tractor/backhoe equipment
• Production era: primarily 1991-2005 with continued aftermarket support

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.217" (30.9mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Honda / Johnson Electric / UT design
• Field case length: 3.5" / 88.9mm
• Mounting: 2 ears (both 9.0mm unthreaded)
• Weight: 5.3 lbs (2.41 kg)
• OEM Manufacturer: Honda / Johnson Electric / United Technologies
• Will NOT fit Honda GX340 / GX390 / GX420 single-cylinder horizontal engines (different starter family)
• Will NOT fit Honda GXV340 / GXV390 single-cylinder vertical engines (use — different starter family)
• Will NOT fit Honda GX670 / GXV670 24HP V-Twin engines (different starter family)
• Will NOT fit Honda GXV630 / GXV660 / GXV690 V-Twin engines (different starter family)
• Will NOT fit Honda 4-Stroke Outboard Marine engines (different starter family)
• Will NOT fit Cub Cadet / Toro mowers with Kawasaki, Briggs & Stratton, or Kohler engines (different starter families)
• Always verify your engine model and Honda OEM part number before ordering
