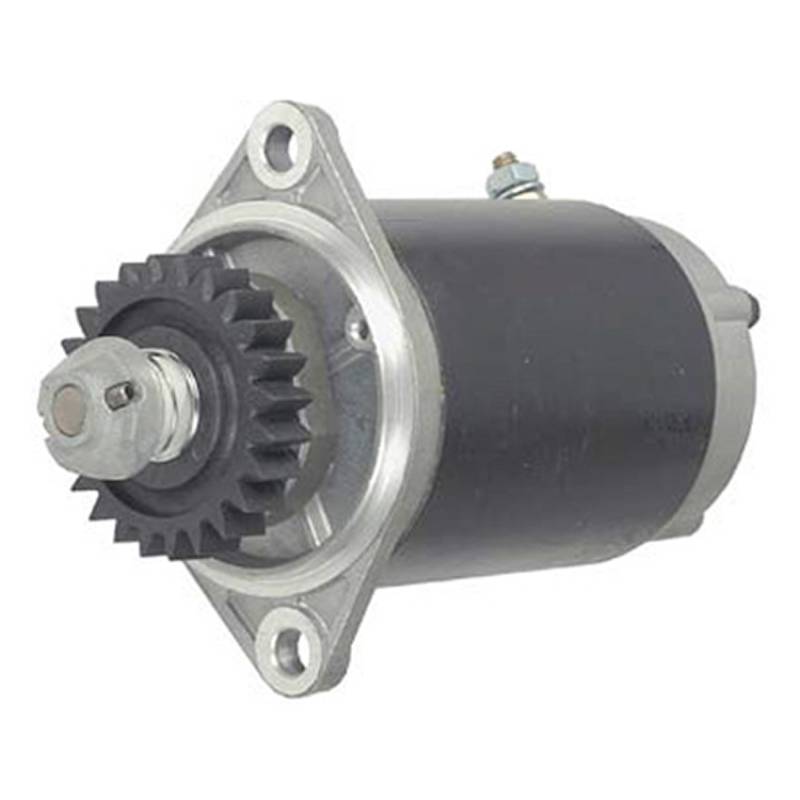

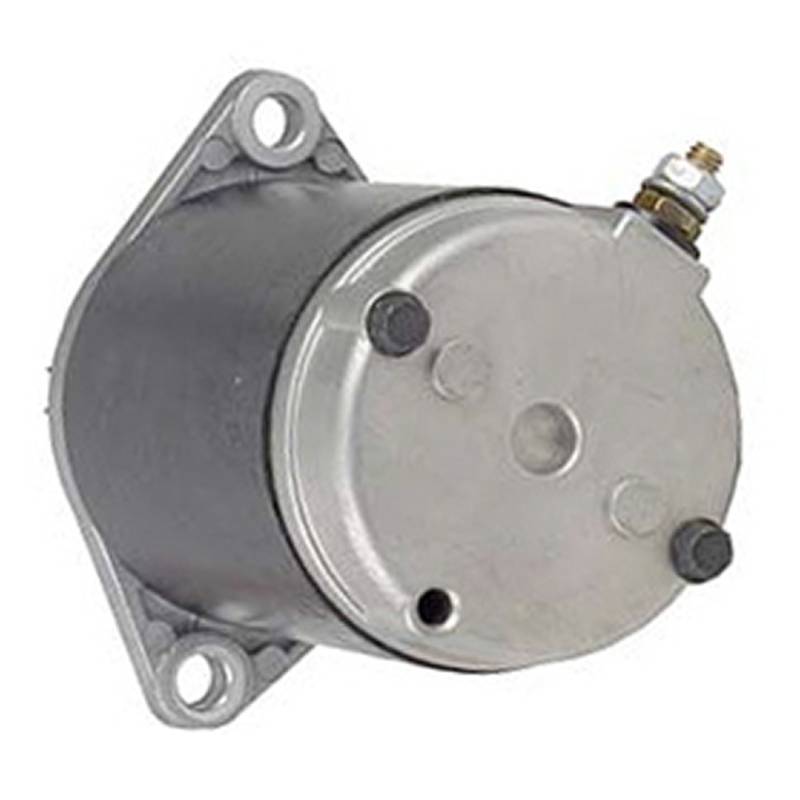

New 12V Ccw Pmdd Starter 24-Tooth Compatible With Onan Microlite Microquiet Camppower Rv Genset Kv

(0) Reviews: Write first review
5919
OEM CROSS-REFERENCE PART NUMBERS — ONAN (CUMMINS-ONAN):
• Onan: 191-1798 / 1911798
• Onan: 191-2312 / 1912312
• Onan: 191-2351 (current production supersession part — replaces 191-1798 & 191-2312)

OEM CROSS-REFERENCE PART NUMBERS — JOHNSON ELECTRIC:
• Johnson Electric: 6020940
• Johnson Electric: SM60209

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES:
• United Technologies: 6020940MO20SM
• United Technologies: SM60209

SPECIFICATIONS:
• Product Type: Onan KV / KVC / KVD / KY RV Genset Engine Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric / Onan (Cummins-Onan post-1992)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 24 (UNUSUAL HIGH tooth count for compact starter)
• Gear OD: 58mm / 2.283"
• Field Case Length: 3.43" / 87.1mm
• Mounting Ear 1: 9.0mm ID Unthreaded
• Mounting Ear 2: 9.0mm ID Unthreaded
• Weight: 4.91 lbs / 2.23 kg
• Engine: Onan KV / KVC / KVD (diesel) / KY RV Genset Engine Family
• Application: Onan MicroLite / MicroQuiet / CampPower RV Generator Sets (Cummins-Onan)
• Condition: New

APPLICATION SUMMARY — ONAN KV-SERIES RV GENSETS:
• Onan MicroLite Series RV Generator Sets with KV / KVC engines (gas & LP variants)
• Onan MicroLite Diesel Series RV Generator Sets with KVD engine
• Onan MicroQuiet Series RV Generator Sets with KV / KY engines (quiet-operation variant)
• Onan CampPower Series RV Generator Sets with KV / KY engines (camping-focused series)
• Used in motorhomes, travel trailers, fifth wheels, and truck campers for onboard 120V AC power

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $148.51
Sale: $84.86
Save: 43%
Save: $63.65
Qty:
Free Shipping!

Description

ONAN KV-SERIES RV GENSET ENGINE FAMILY (PRIMARY ENGINES):
• Onan KV — RV Genset Engine (2.8kW Gas / 2.5kW LP — Spec A & B + Spec C through G)
• Onan KVC — RV Genset Engine Variant
• Onan KVD — RV Genset DIESEL Engine Variant (Microlite Diesel — Spec A)
• Onan KY — RV Genset Engine (Microlite / Microquiet — Spec A)
• All engines designed specifically for RV onboard power generation

ONAN MICROLITE RV GENERATOR SETS:
• Onan MicroLite Series RV Genset (KV / KVC engines) — Compact RV generator for motorhomes / travel trailers / campers
• Onan MicroLite Diesel Series RV Genset (KVD engine) — Diesel variant for diesel-powered RVs

ONAN MICROQUIET RV GENERATOR SETS:
• Onan MicroQuiet Series RV Genset (KV / KY engines) — Quiet-operation variant for premium RVs

ONAN CAMPPOWER RV GENERATOR SETS:
• Onan CampPower Series RV Genset (KV / KY engines) — Camping-focused RV generator series

ONAN-CUMMINS RV GENSET CONTEXT:
• Onan was acquired by Cummins Inc. in 1992 — post-1992 RV gensets are Cummins-Onan branded
• Onan KV-series RV gensets typically rated 2.5-3.6kW for AC power generation
• MicroLite series = compact entry-level RV genset / MicroQuiet series = quiet-operation variant
• CampPower series = camping-focused RV genset series
• These RV generator sets are widely used in Class A / Class B / Class C motorhomes, fifth wheels, travel trailers, and truck campers for onboard AC electrical power
• Used to power roof-mounted AC units, microwaves, refrigerators, televisions, and other 120V AC appliances when boondocking or off-grid

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 24-tooth pinion (UNUSUAL HIGH tooth count), 2.283" (58mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric / Onan design
• Field case length: 3.43" / 87.1mm (compact form factor for tight RV genset compartment)
• Mounting: 2 ears (both 9.0mm unthreaded)
• Weight: 4.91 lbs (2.23 kg)
• OEM Manufacturer: Johnson Electric / Onan (Cummins-Onan post-1992)
• Will NOT fit Onan BG / BGD / BGE / BGM Series RV gensets (different starter family)
• Will NOT fit Onan Marquis / Marquis Gold Series RV gensets (different starter family)
• Will NOT fit Onan HGJAA / HGJAB / HGJAC commercial gensets (different starter family)
• Will NOT fit Onan Quiet Diesel QD series 5500-12500 watt RV gensets (different starter family)
• Will NOT fit Onan Emerald / Emerald Plus / Emerald Advantage Series gensets (different starter family)
• Will NOT fit Onan industrial standby gensets (different starter family)
• Always verify your Onan engine model (KV / KVC / KVD / KY) and Onan OEM part number before ordering
