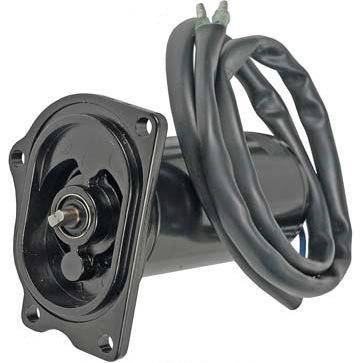

Tilt Trim Motor Compatible With Mercury Mariner 25Hp 30Hp 40Hp 45Hp 50Hp Outboard 2-Stroke 4-Stroke

OEM PART NUMBERS:
• Mercury Marine: 827675A1 / 827675A-1



AFTERMARKET CROSS REFERENCE:
• API Marine: PT498NM
• Arco Marine: 6255
• 18-6286
SPECIFICATIONS:
• Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire / Crimp Terminals
• Shaft OD: 7.2mm / 0.283in
• Shaft Type: 3.8mm Drive Tang (Slotted)
• Field Housing OD: 52mm / 2.047in
• Overall Length: 134mm / 5.276in
• Mounting: (4) 6.7mm ID Unthreaded Holes
• Weight: 6 lbs
• Condition: New

MERCURY/MARINER APPLICATIONS:
• 25HP 4-Stroke (1997-2006)
• 30HP 2-Stroke / Jet (1994-2006)
• 40HP 2-Stroke (1994-2006, 2010) / 4-Stroke (1995-1998)
• 45HP 4-Stroke (1995-1998)
• 50HP 2-Stroke (1997-2006, 2010) / 4-Stroke (1995-1998) / BigFoot (1994-2006)

FORCE APPLICATIONS:
• 40EL / 40ELPT / 50EL / 50ELPT (1995-1999)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
