OEM PART NUMBERS:
• Mercury Marine: 811628
• Mercury Marine: 828708A1
• Mercury Marine: 878265A2
• Mercury Marine: 878265A6
• Mercury Marine: 85974
AFTERMARKET CROSS REFERENCE:
• API Marine: PT485NMK-3
• Arco Marine: 6279
• 18-6774
SPECIFICATIONS:

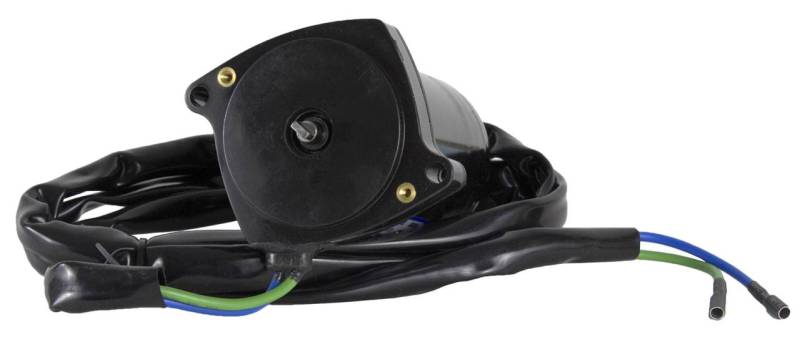

• Type: Tilt Trim Motor (Motor Only — No Pump)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 3-Wire
• Terminals: 1/4 Inch Ring Terminal (x3)
• Shaft OD: 7.4mm / 0.291in
• Shaft Type: Blade
• Field Housing OD: 78.1mm / 3.075in
• Overall Length: 138.4mm / 5.449in
• Mount: 2-Bolt / Flat Blade Coupler
• System: Design II, 3-Ram, Aft Fill Integral Trim/Tilt
• Replaces: Square Eaton Style Motor
• Weight: 5.95 lbs / 2.70 kg
• Condition: New
MERCURY / MARINER APPLICATIONS:
• 3-Cyl: 75-90HP (1990-1993)
• 4-Cyl: 100-125HP (1988-1995)
• V6: 135-225HP (1992-1998)
• EFI Pro Max/Super Mag: 150-225HP (1994-1997)
• Jet: 105-140HP (1992-1996)
• Magnum II 2.5L V6 (1990-1991)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
