THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

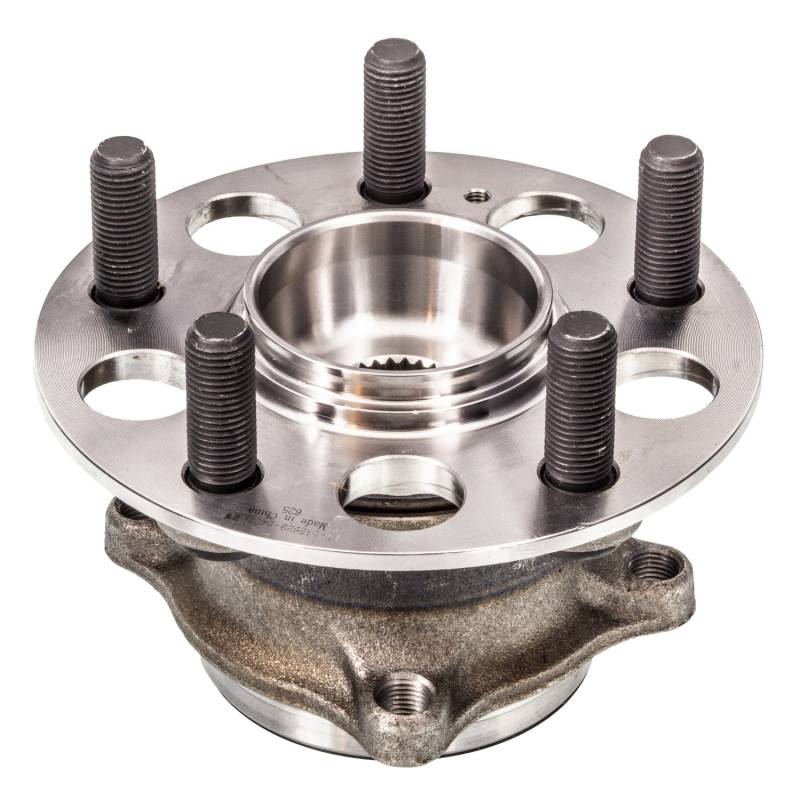

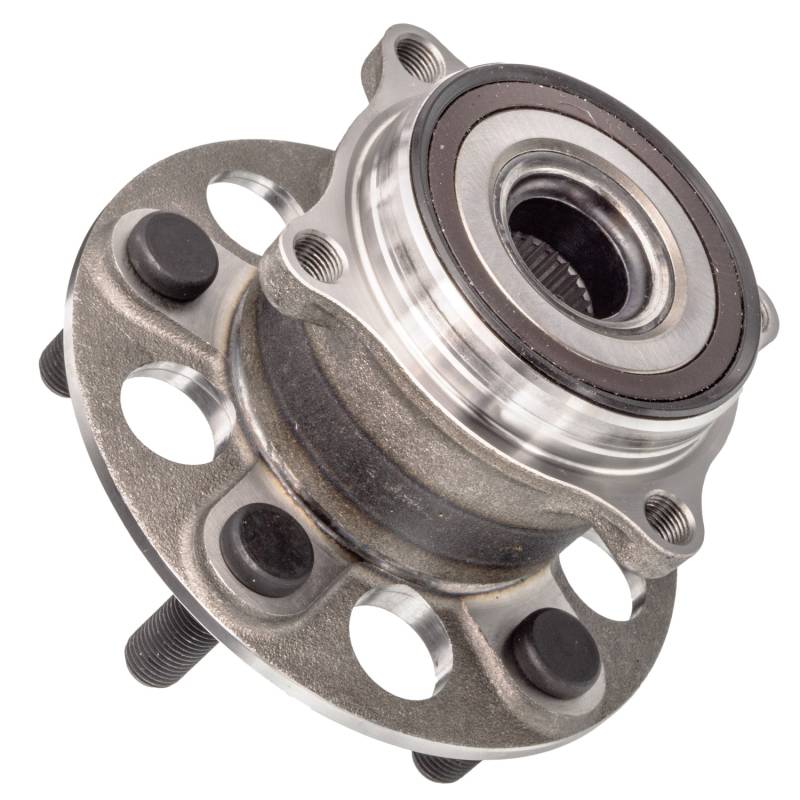

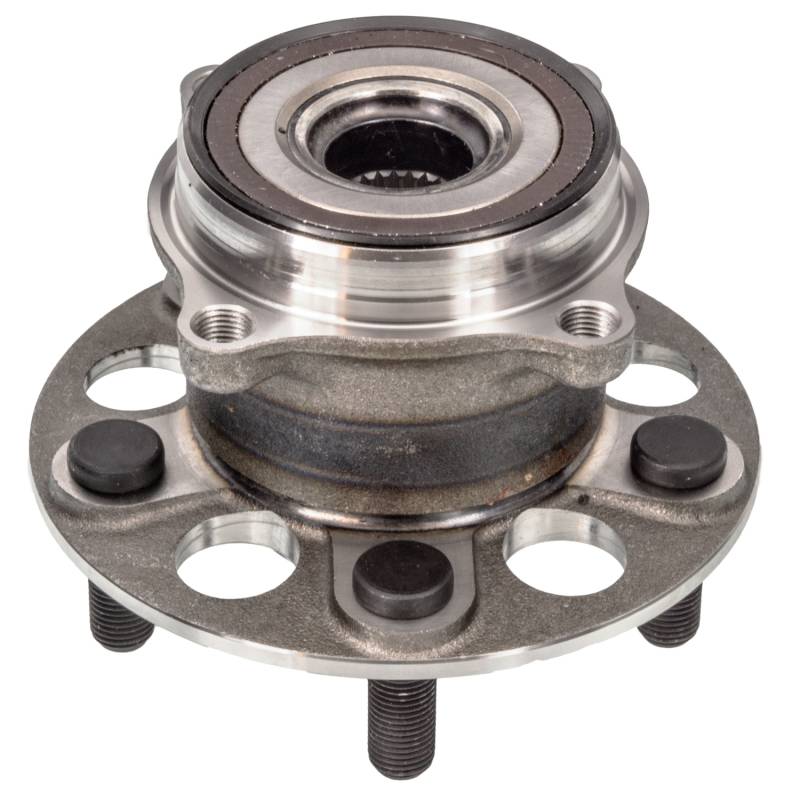

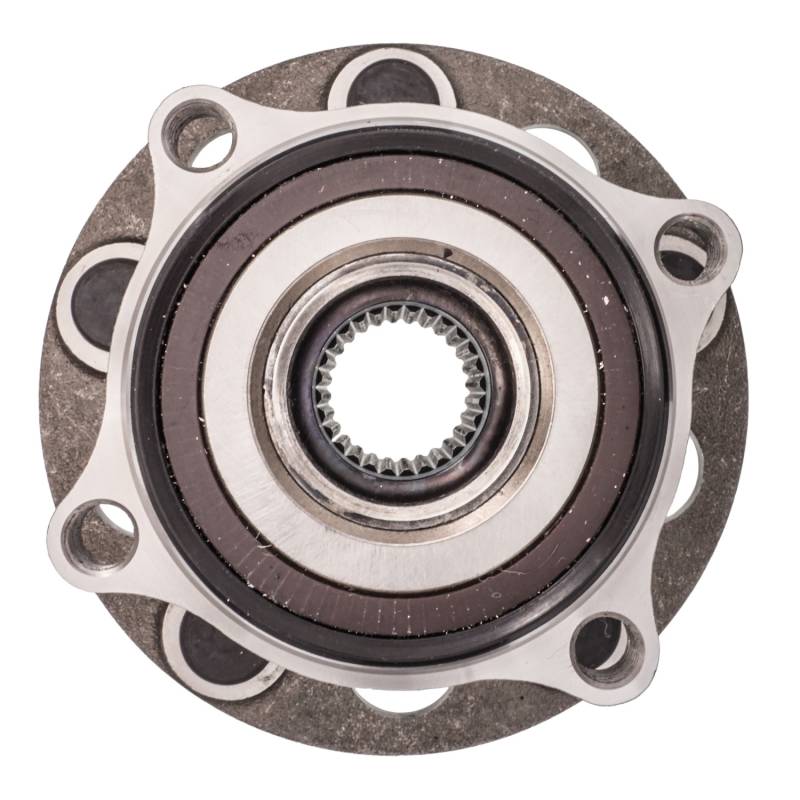

PRODUCT TYPE: HUB ASSEMBLY

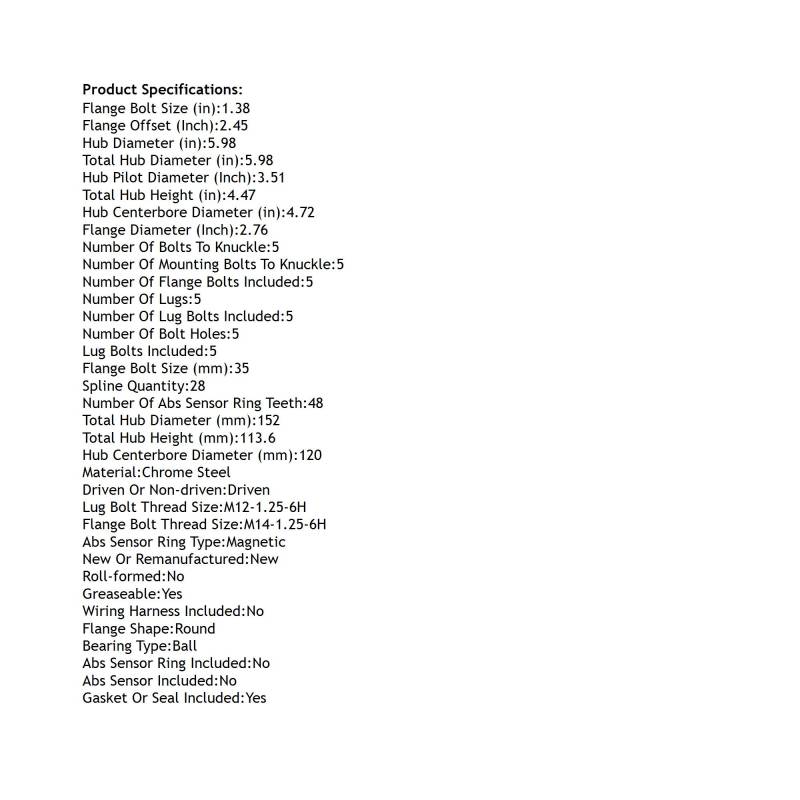

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.38
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M14-1.25-6H
FLANGE DIAMETER (INCH): 2.76
FLANGE OFFSET (INCH): 2.45
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.98
HUB PILOT DIAMETER (INCH): 3.51
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.98
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 4.47
TOTAL HUB HEIGHT (MM): 113.6
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-605200
BCA: WE61888
MOOG HUB ASSEMBLIES: 512629
APPLICATIONS:
HONDA PILOT (2016-2022)
ACURA MDX (2017-2020)
HONDA PASSPORT (2019-2023)
