THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

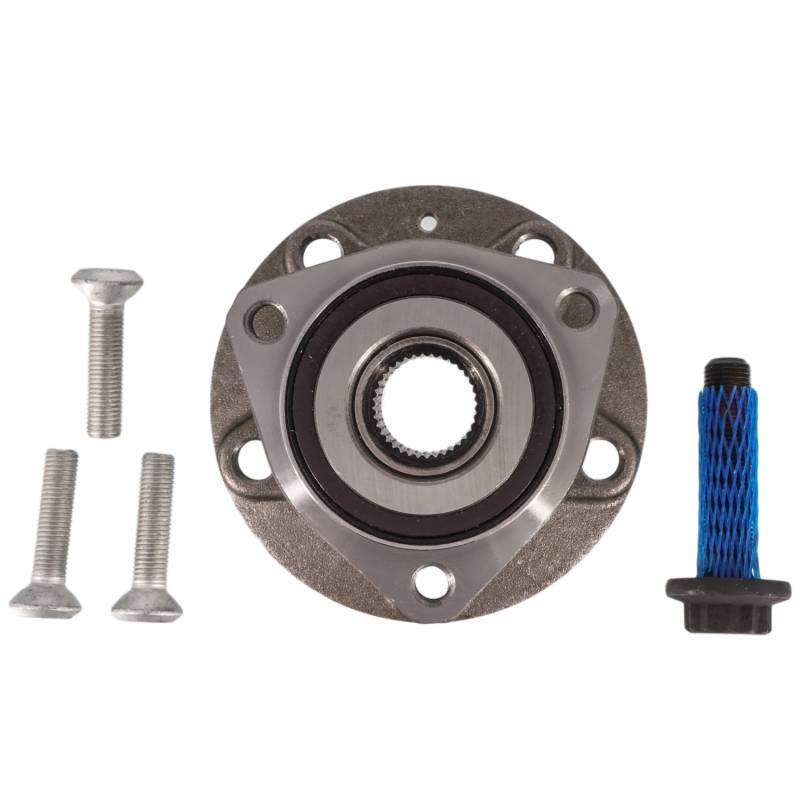

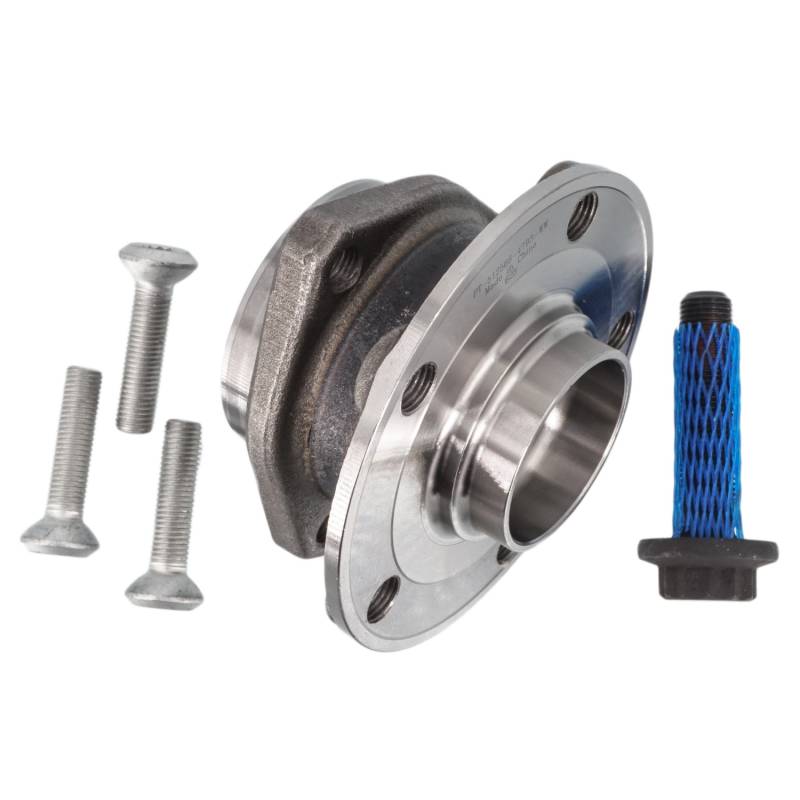

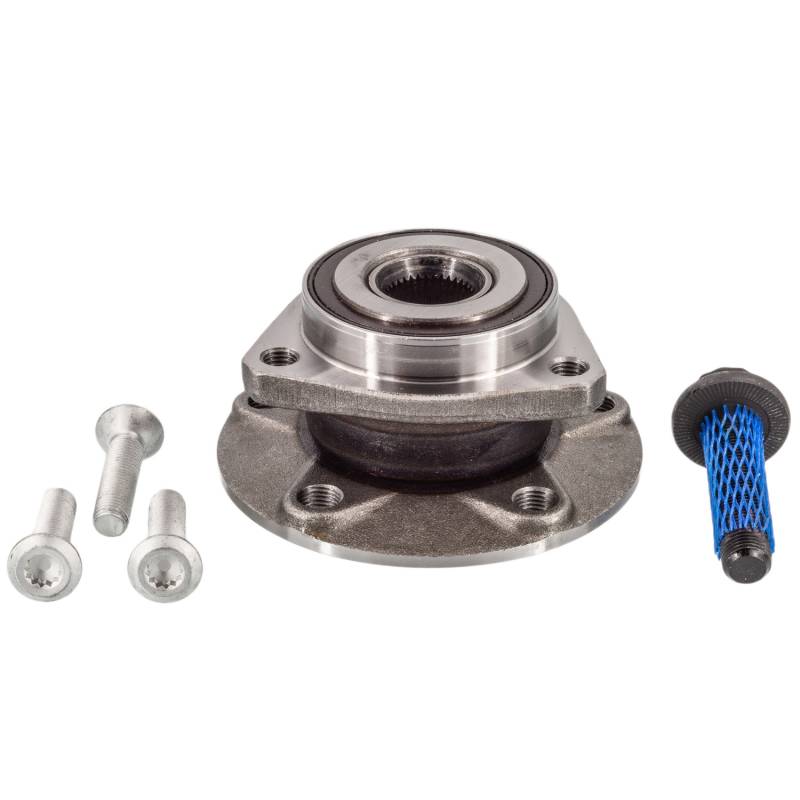

PRODUCT TYPE: HUB ASSEMBLY

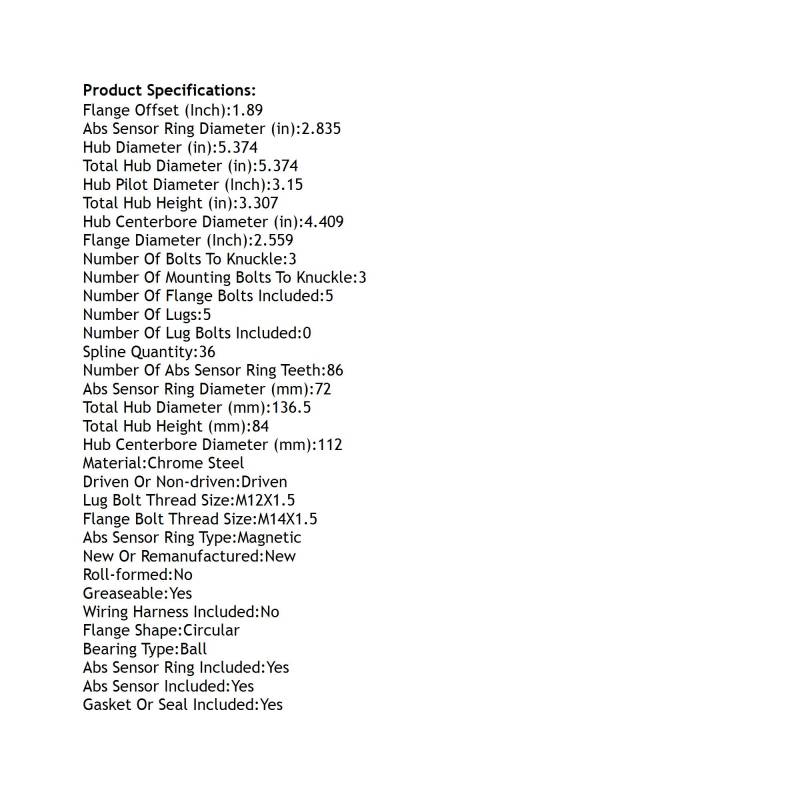

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.835
ABS SENSOR RING DIAMETER (MM): 72
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.559
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.409
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.374
HUB PILOT DIAMETER (INCH): 3.15
LUG BOLT THREAD SIZE: M12X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 86
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 36
TOTAL HUB DIAMETER (IN): 5.374
TOTAL HUB DIAMETER (MM): 136.5
TOTAL HUB HEIGHT (IN): 3.307
TOTAL HUB HEIGHT (MM): 84
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-583302
BCA: WE61815
BECK/ARNLEY: 051-6489
GSP: 234262
MEVOTECH: MB61815
MOOG HUB ASSEMBLIES: 512566
APPLICATIONS:
AUDI A3 QUATTRO (2015-2023)
AUDI A3 (2015-2020)
AUDI S3 (2015-2023)
VOLKSWAGEN GOLF R (2015-2023)
AUDI A3 SPORTBACK E-TRON (2016-2018)
AUDI RS3 (2017-2023)
VOLKSWAGEN GOLF ALLTRACK (2018-2019)
VOLKSWAGEN GOLF SPORTWAGEN (2018-2019)
