THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

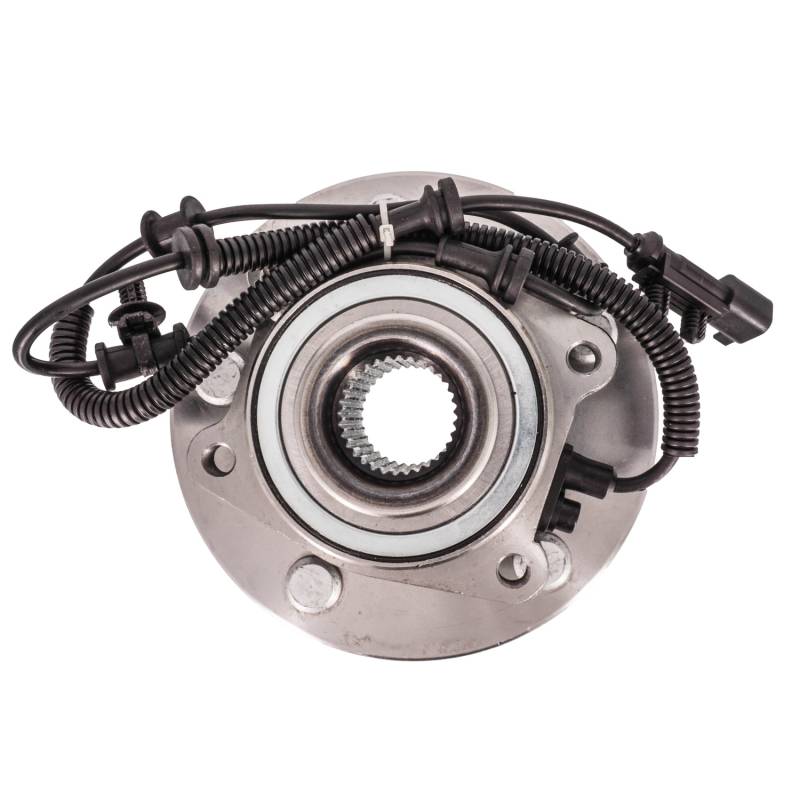

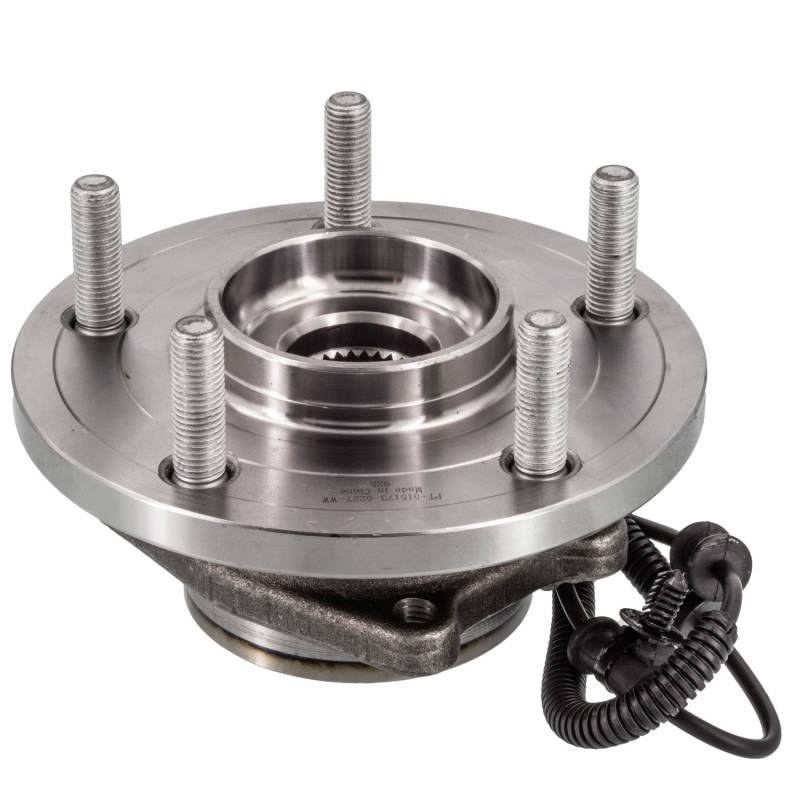

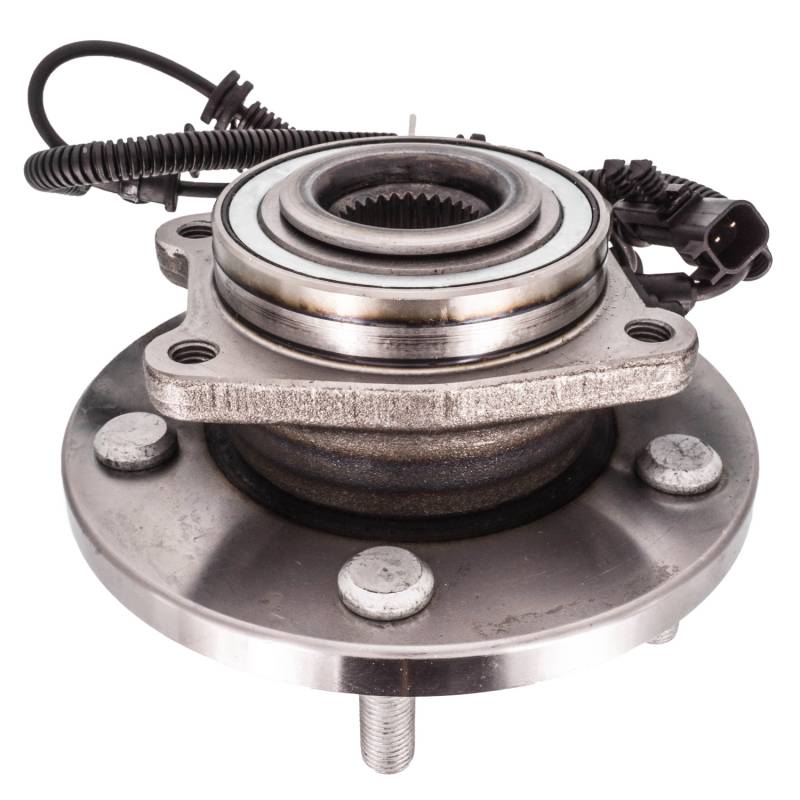

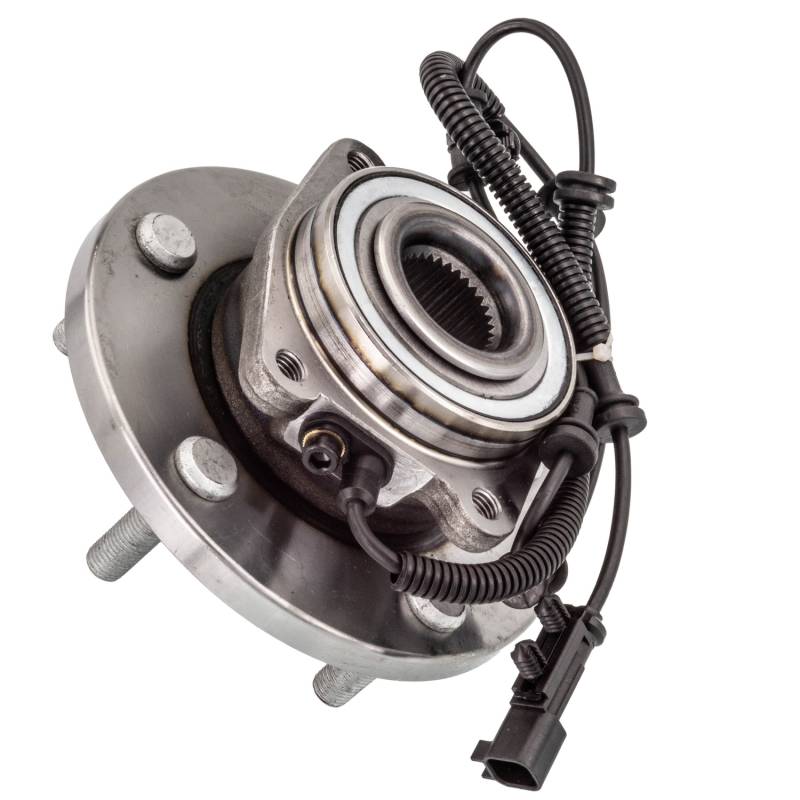

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.48
FLANGE BOLT SIZE (MM): 37.5
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.85
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 5.97
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLT THREAD SIZE: M10-1.5-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.97
TOTAL HUB DIAMETER (MM): 151.6
TOTAL HUB HEIGHT (IN): 4.11
TOTAL HUB HEIGHT (MM): 104.4
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 36
REPLACES:
AUTOPART INTERNATIONAL: 1411-605360
BCA: WE61810
CHRYSLER: 668223504AG 68223504AB 68223504AC 68223504AF 68429524AA 68522906AA 68522906AB
MOOG HUB ASSEMBLIES: 515173
NAPA: PBR930951
APPLICATIONS:
CHRYSLER PACIFICA (2017-2023)
CHRYSLER VOYAGER (2020-2022)
