THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

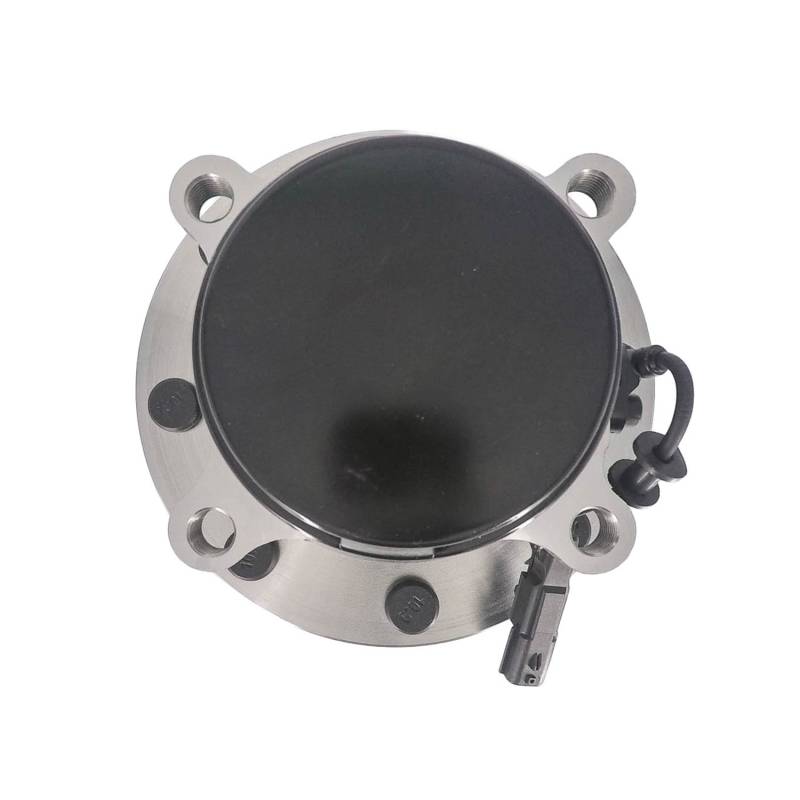

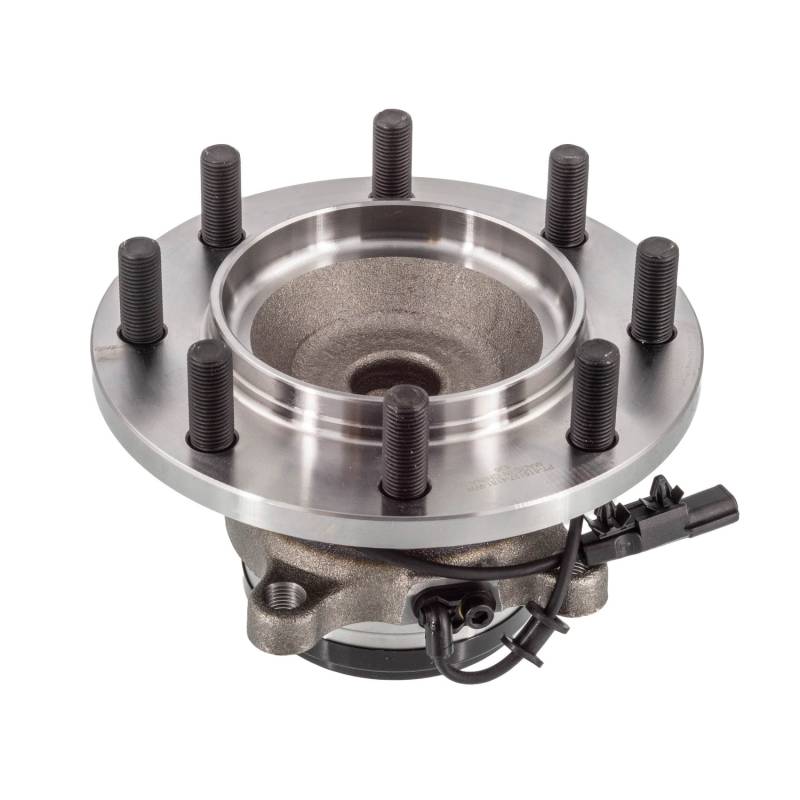

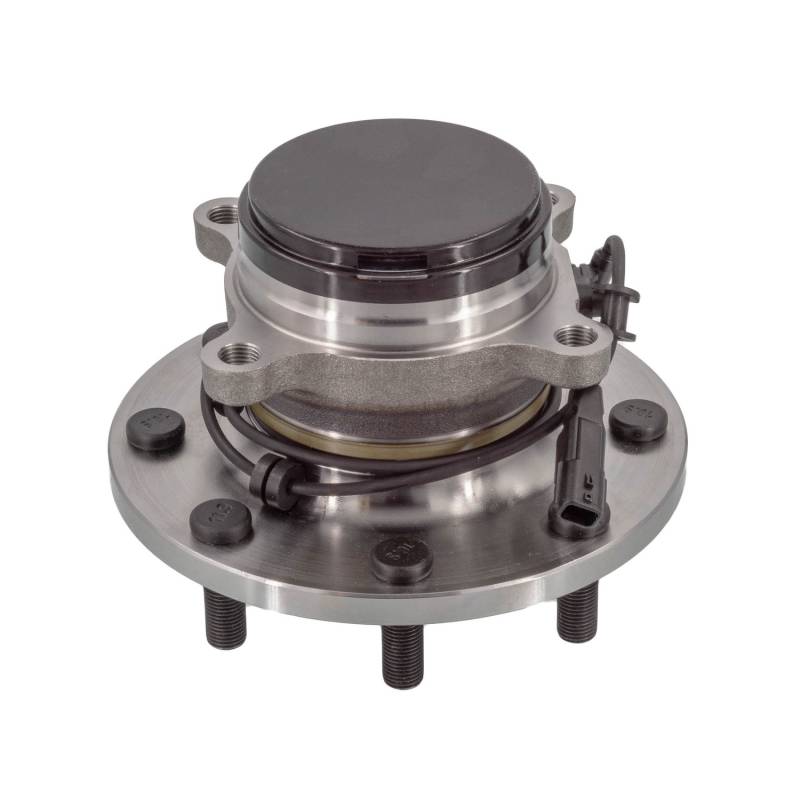

PRODUCT TYPE: HUB ASSEMBLY

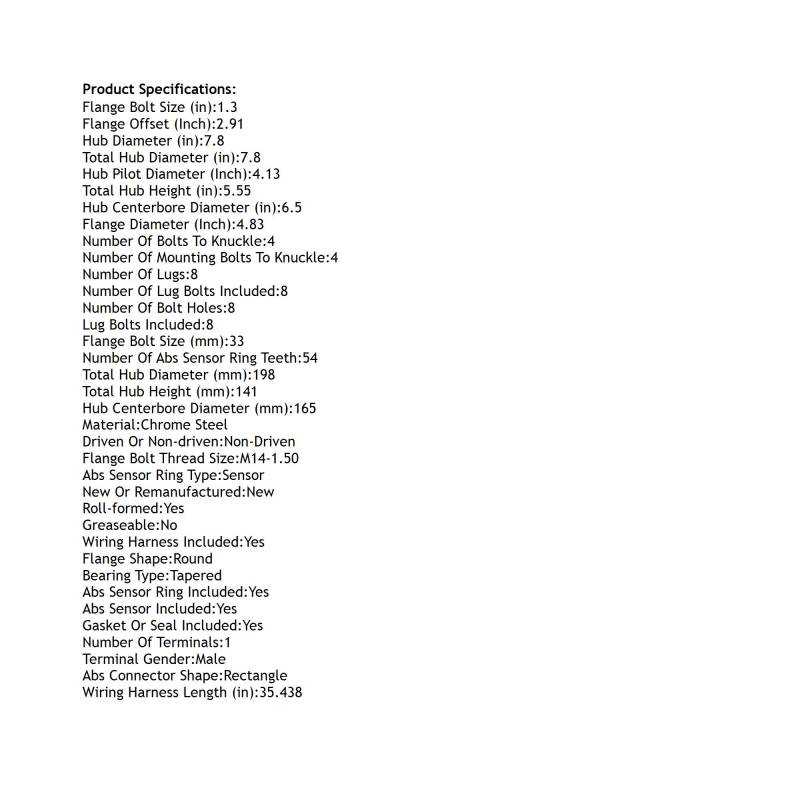

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.3
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.83
FLANGE OFFSET (INCH): 2.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 7.8
HUB PILOT DIAMETER (INCH): 4.13
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.8
TOTAL HUB DIAMETER (MM): 198
TOTAL HUB HEIGHT (IN): 5.55
TOTAL HUB HEIGHT (MM): 141
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 35.438
REPLACES:
AUTOPART INTERNATIONAL: 1411-556351
BCA: WE61937
CENTRIC PARTS: 40242005
FAG US: 102312
MEVOTECH: H515137
MOOG HUB ASSEMBLIES: 515137
NAPA: PBR930834
ZZZN: D0202-1PA0JNW D02021PA0JNW D040202-1PA0A
APPLICATIONS:
NISSAN NV1500 (2012-2021)
NISSAN NV2500 (2012-2021)
NISSAN NV3500 (2012-2021)
