THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY

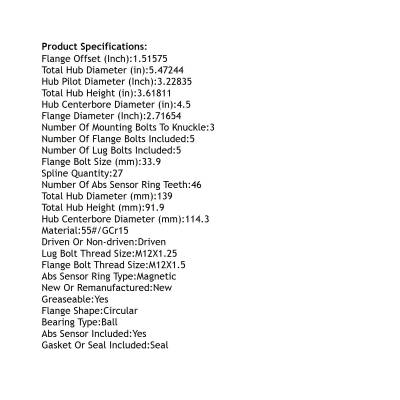

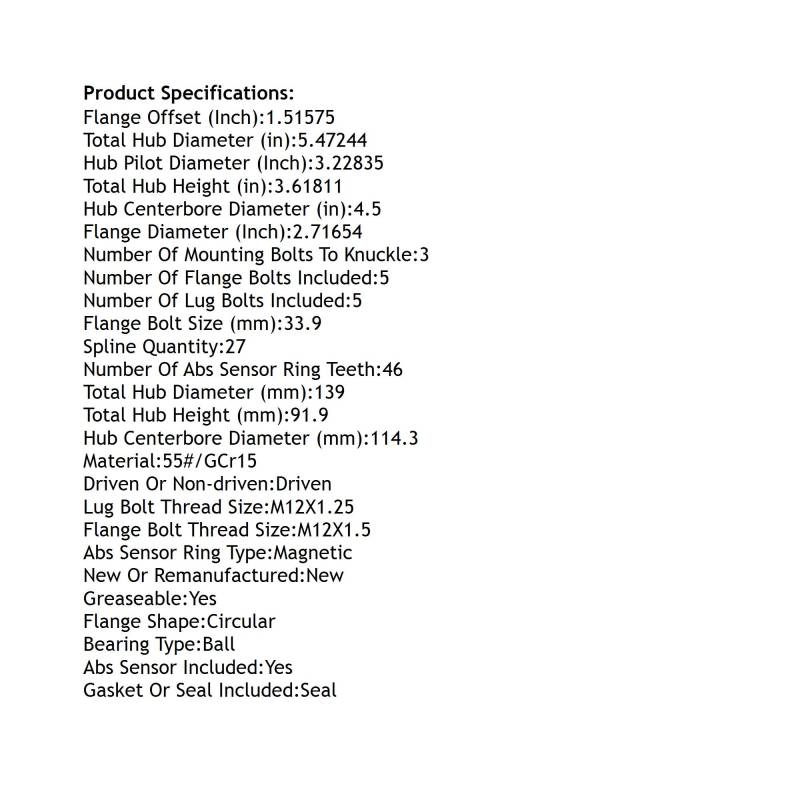

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (MM): 33.9
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.71654
FLANGE OFFSET (INCH): 1.51575
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: SEAL
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB PILOT DIAMETER (INCH): 3.22835
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: 55#/GCR15
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.47244
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.61811
TOTAL HUB HEIGHT (MM): 91.9
REPLACES:
AUTOPART INTERNATIONAL: 1411-729999
COAST TO COAST: 900025
MOOG HUB ASSEMBLIES: 513420
ZZZN: 51730 M6000
APPLICATIONS:
KIA FORTE (2019-2024)
KIA FORTE5 (2020-2023)
HYUNDAI ELANTRA N (2021-2024)
HYUNDAI ELANTRA (2021-2024)
KIA NIRO EV (2023-2023)
KIA NIRO (2023-2023)
