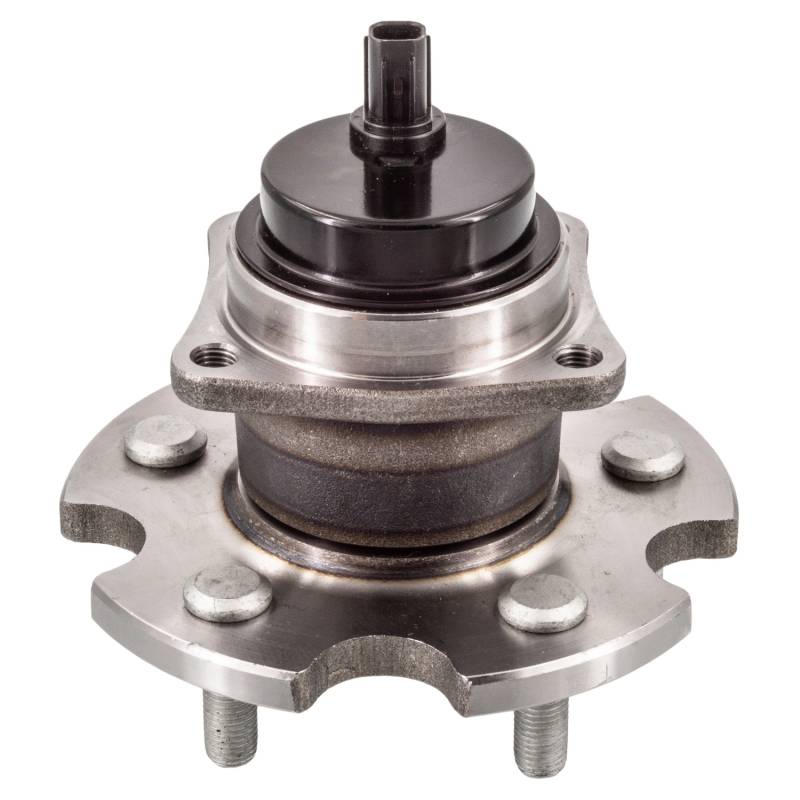

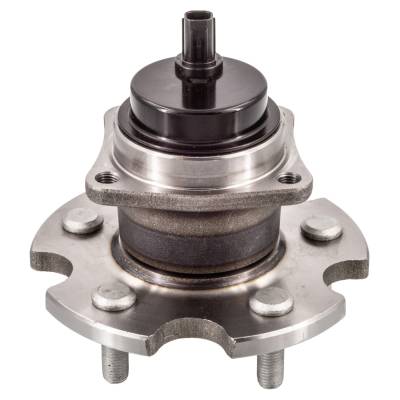

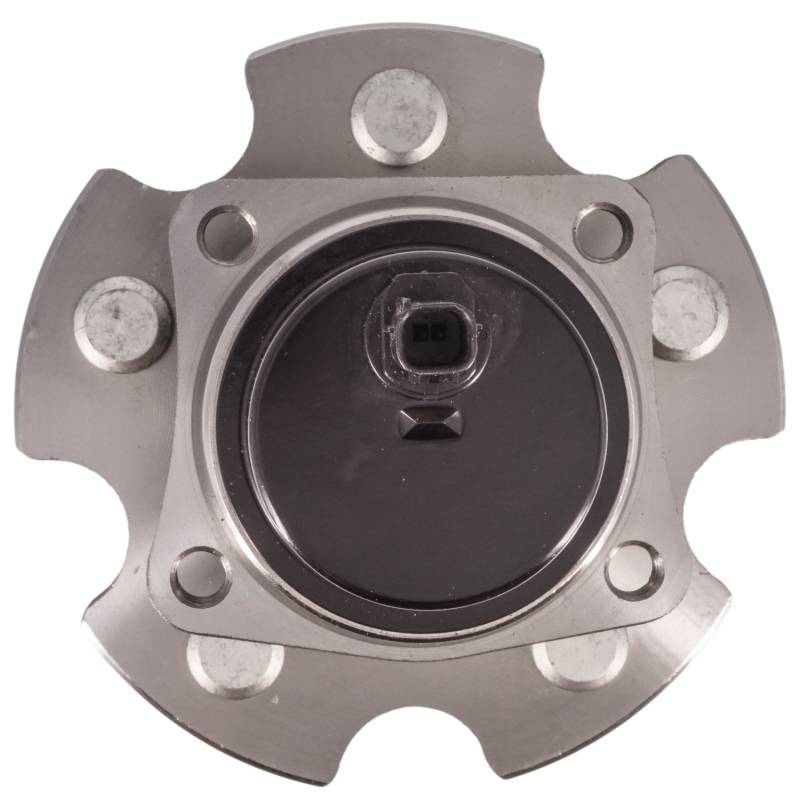

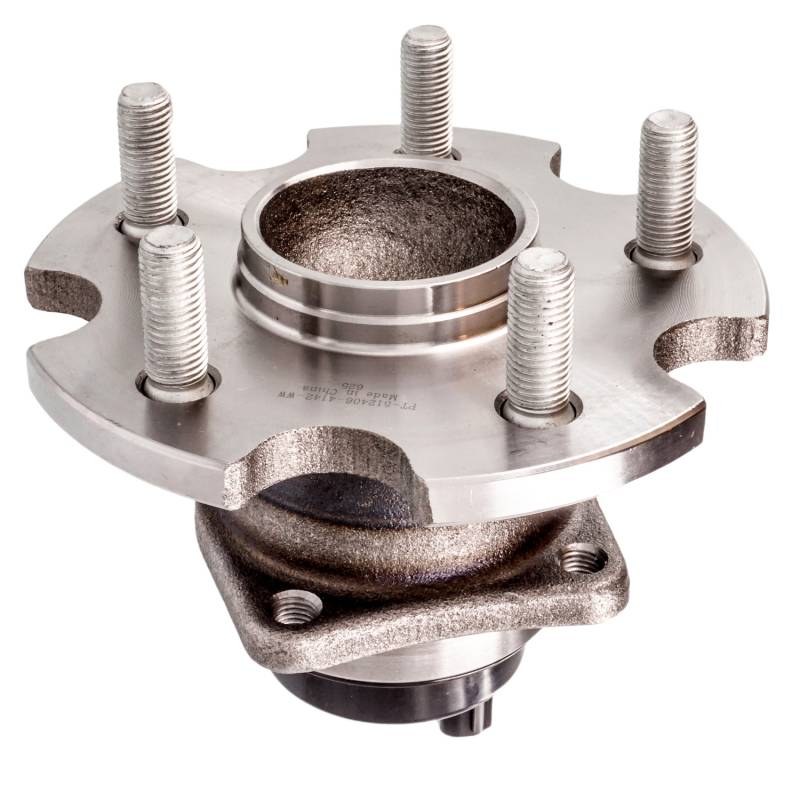

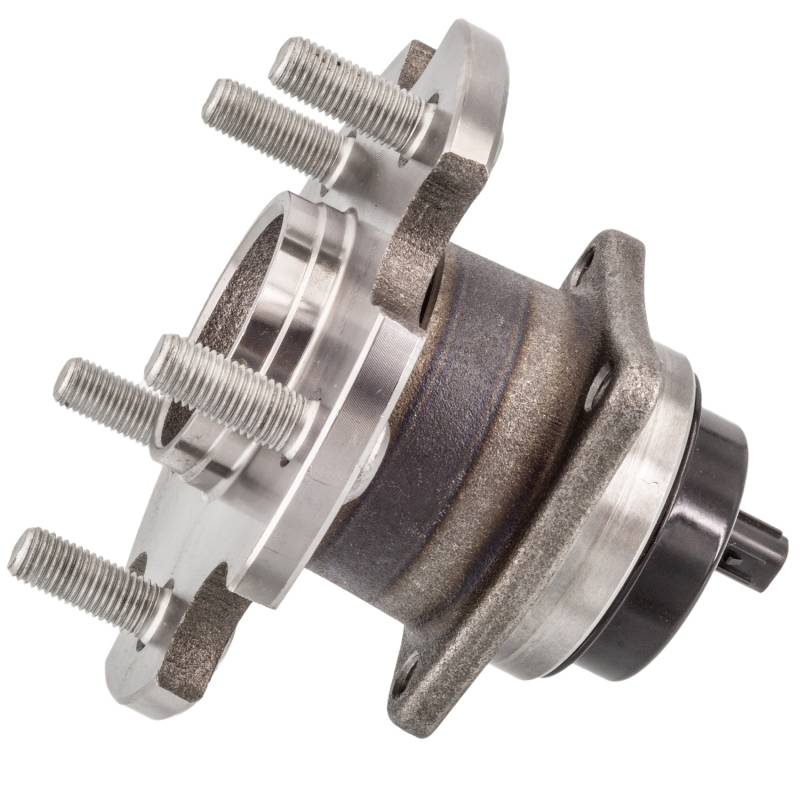

New Hub Assembly Compatible With Toyota Matrix 2.4L 2009 2010 2011 2012 By Part Numbers Br930714

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

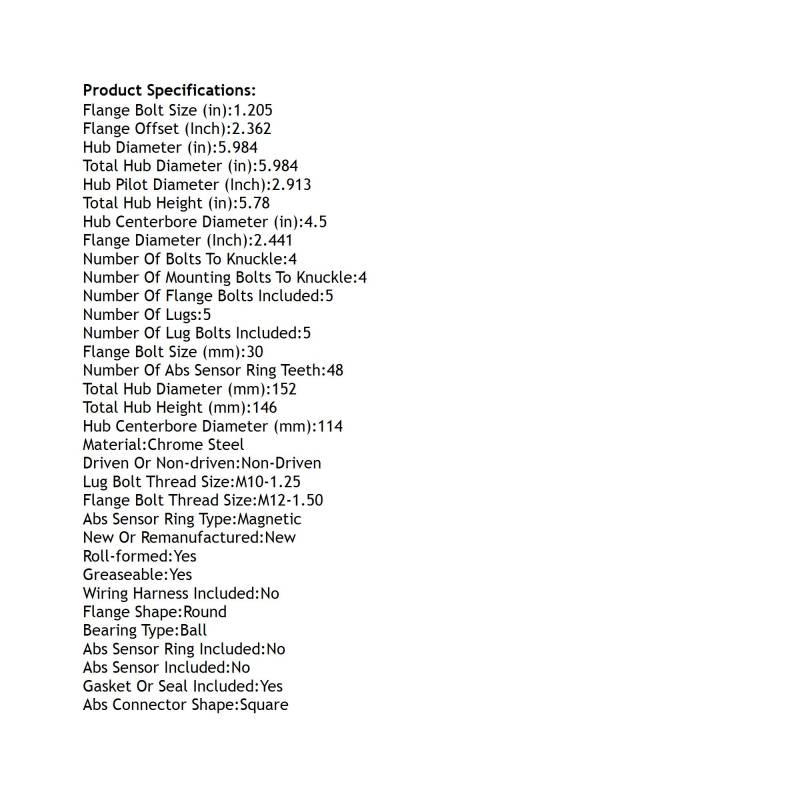

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.205
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 2.362
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.984
HUB PILOT DIAMETER (INCH): 2.913
LUG BOLT THREAD SIZE: M10-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.984
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 5.78
TOTAL HUB HEIGHT (MM): 146
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-115
AUTOPART INTERNATIONAL: 1411-425149
CENTRIC PARTS: 40744016
GENERAL MOTORS: 19184270
GSP: 693406
MEVOTECH: H512406
MOOG HUB ASSEMBLIES: 512406
NAPA: PBR930714

APPLICATIONS:
TOYOTA MATRIX (2009-2012)
