THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

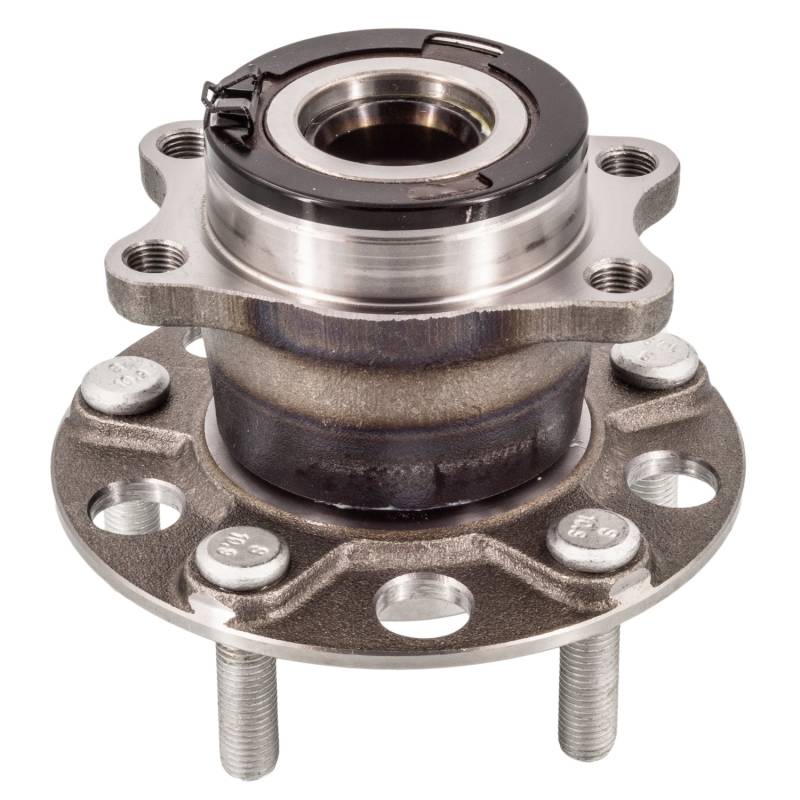

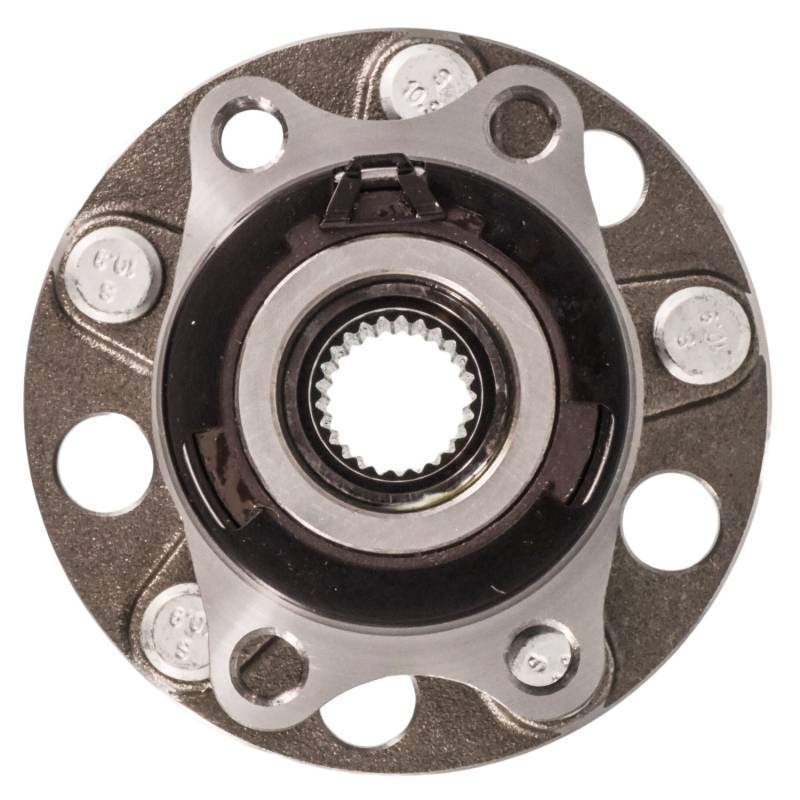

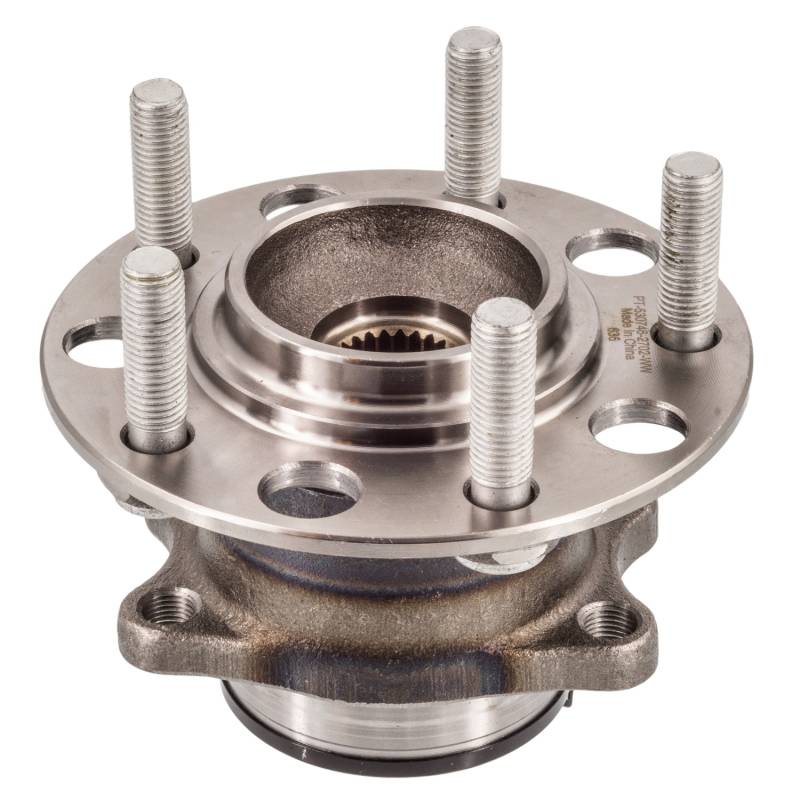

PRODUCT TYPE: HUB ASSEMBLY

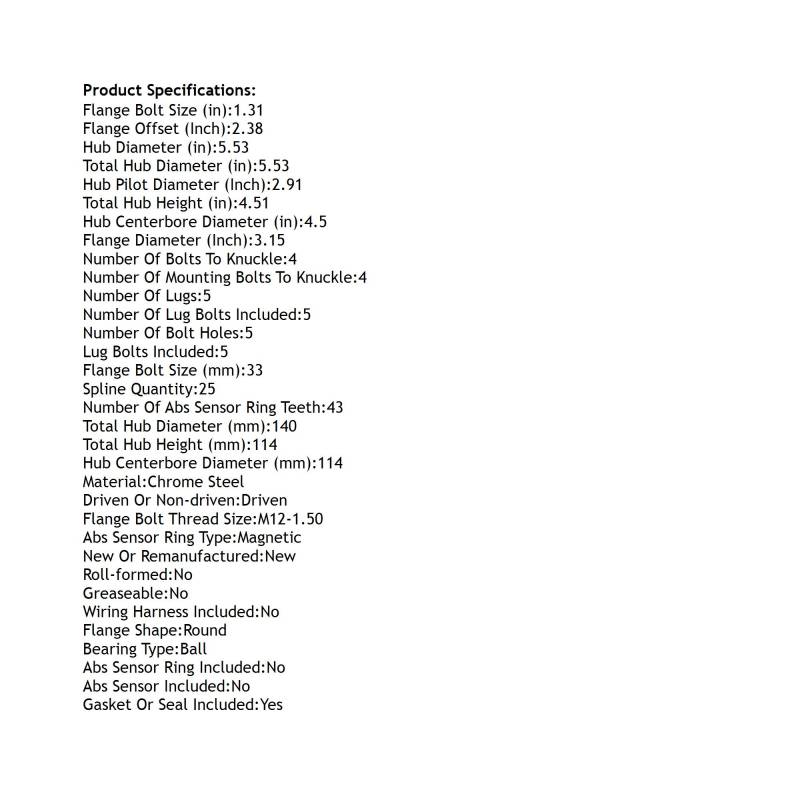

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.31
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.15
FLANGE OFFSET (INCH): 2.38
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.53
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 25
TOTAL HUB DIAMETER (IN): 5.53
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 4.51
TOTAL HUB HEIGHT (MM): 114
WIRING HARNESS INCLUDED: NO
REPLACES:
APPLICATIONS:
MITSUBISHI OUTLANDER (2007-2013)
MITSUBISHI OUTLANDER SPORT (2011-2013)
MITSUBISHI LANCER (2012-2017)
