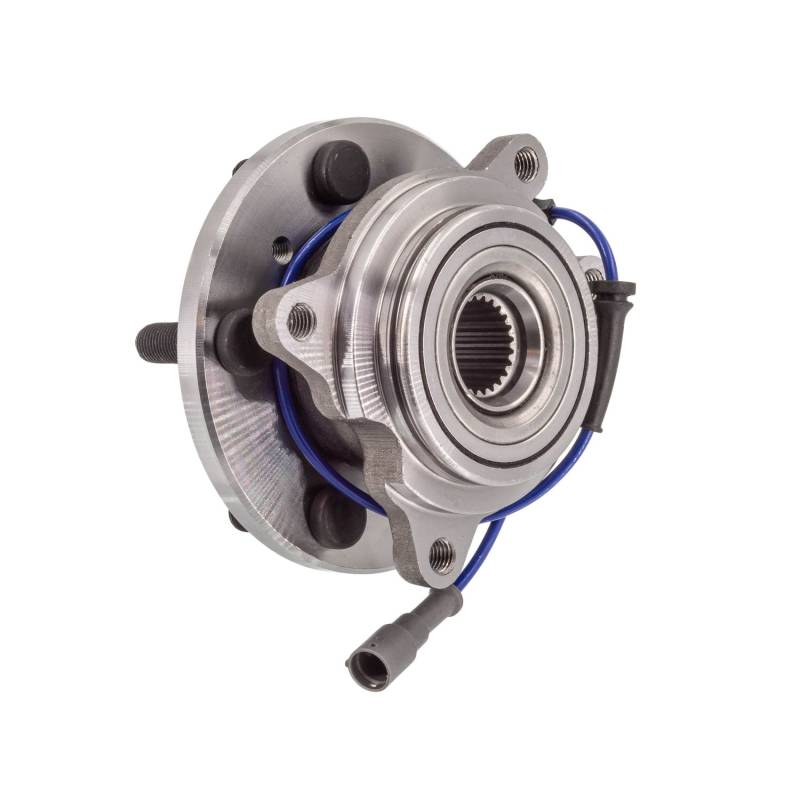

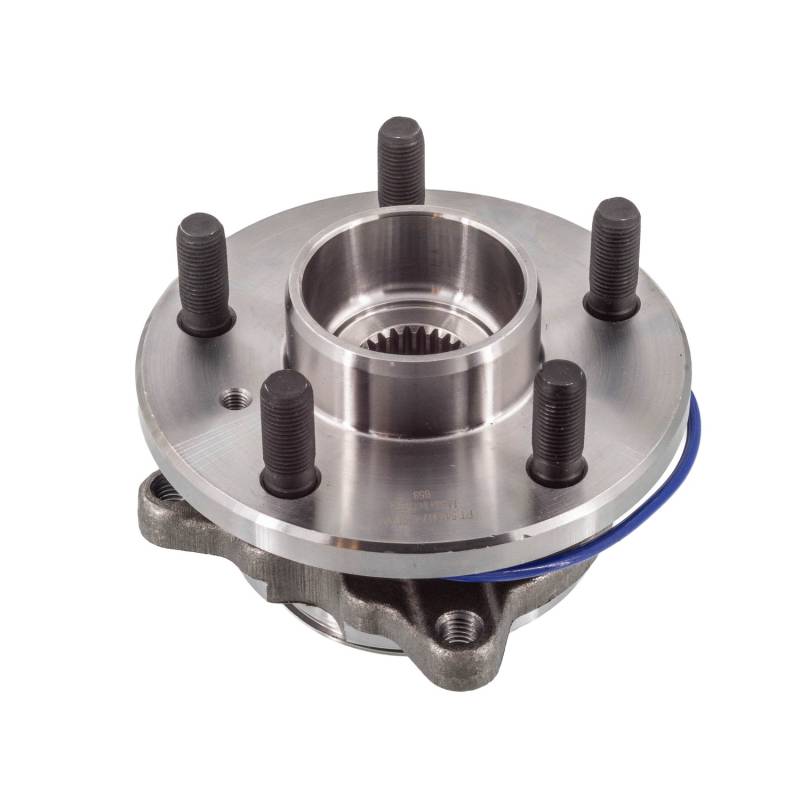

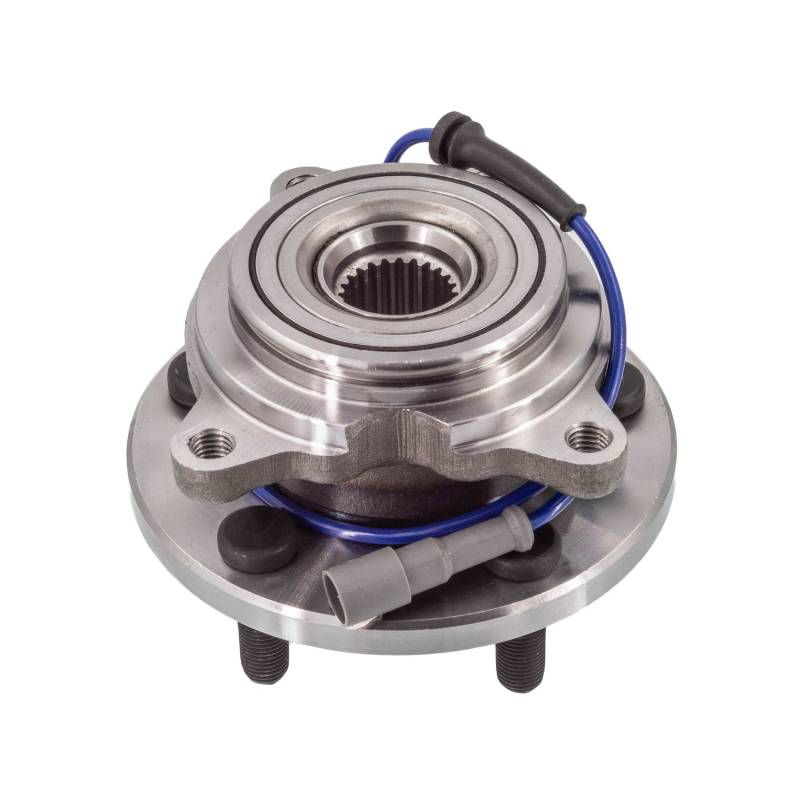

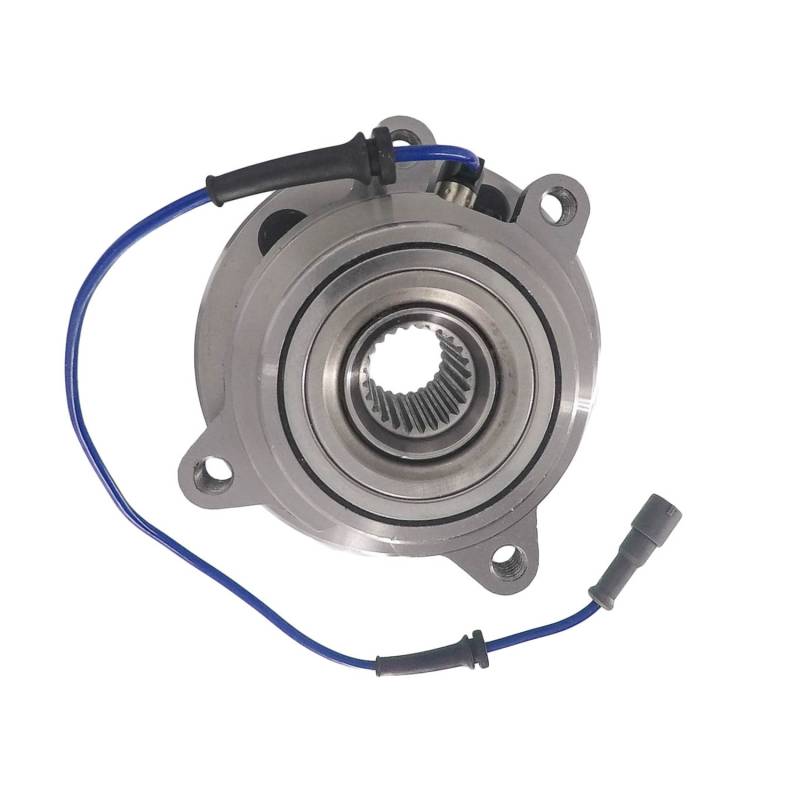

New Hub Assembly Compatible With Land Rover Discovery 4.0L 4.6L 1999 2000 2001 2002 2003 2004 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

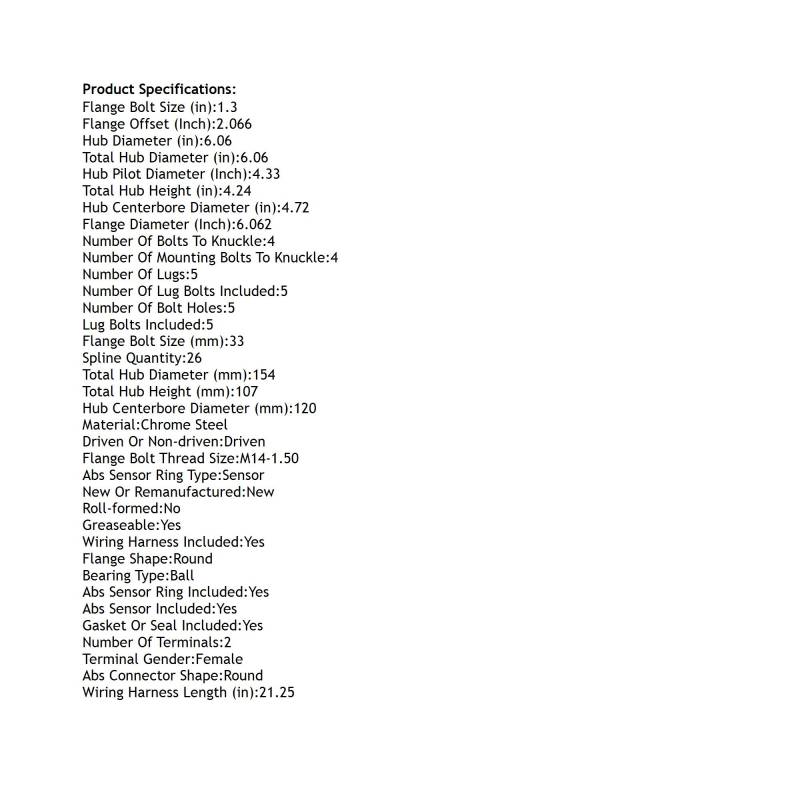

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.3
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 6.062
FLANGE OFFSET (INCH): 2.066
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.06
HUB PILOT DIAMETER (INCH): 4.33
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 2
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.06
TOTAL HUB DIAMETER (MM): 154
TOTAL HUB HEIGHT (IN): 4.24
TOTAL HUB HEIGHT (MM): 107
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 21.25

REPLACES:
AUTOPART INTERNATIONAL: 1411-44439
MOOG HUB ASSEMBLIES: 541017

APPLICATIONS:
LAND ROVER DISCOVERY (1999-2004)
