THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

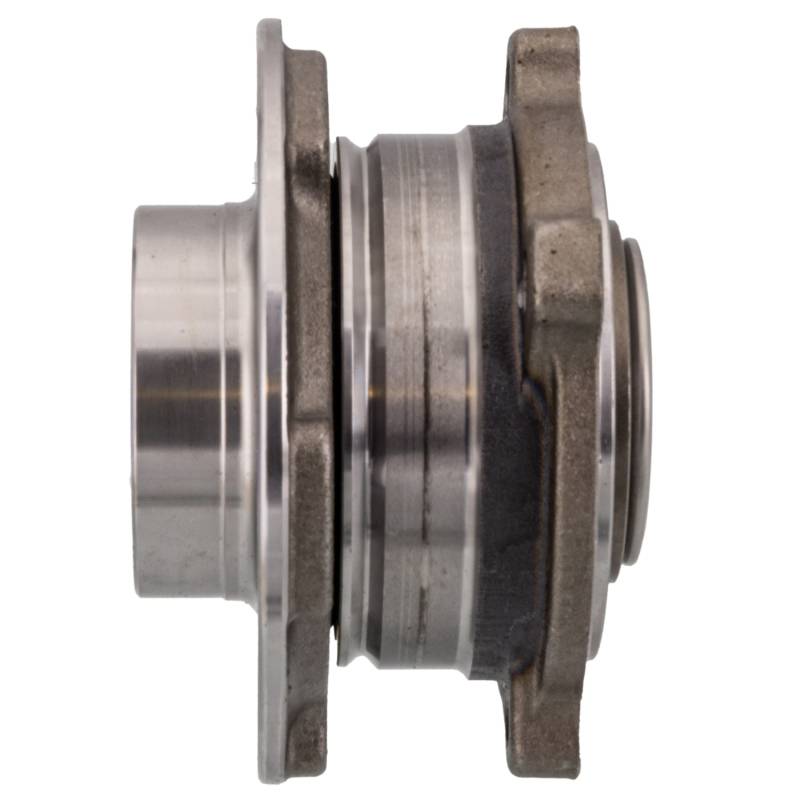

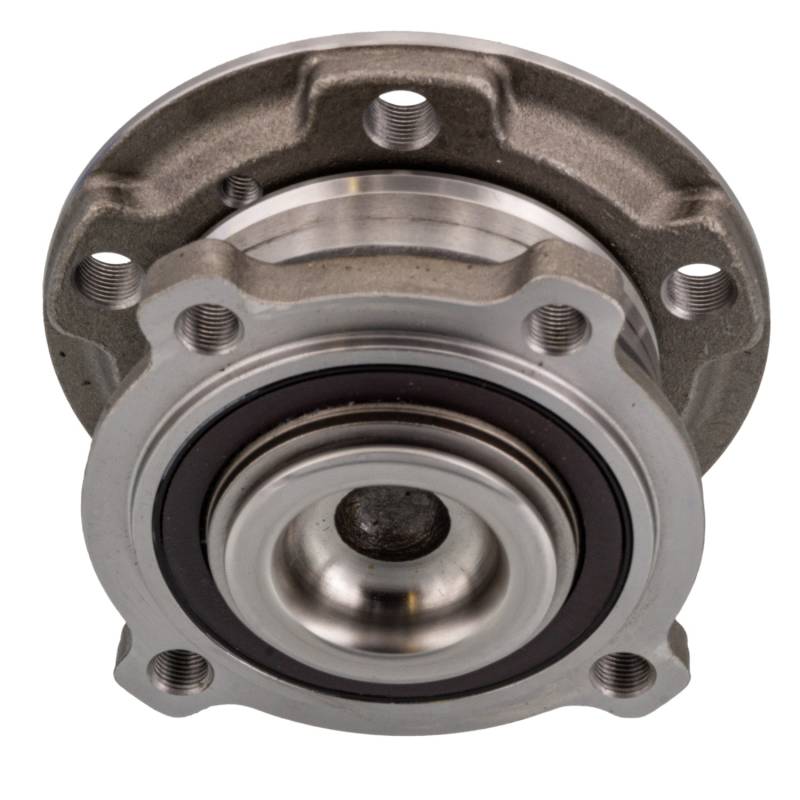

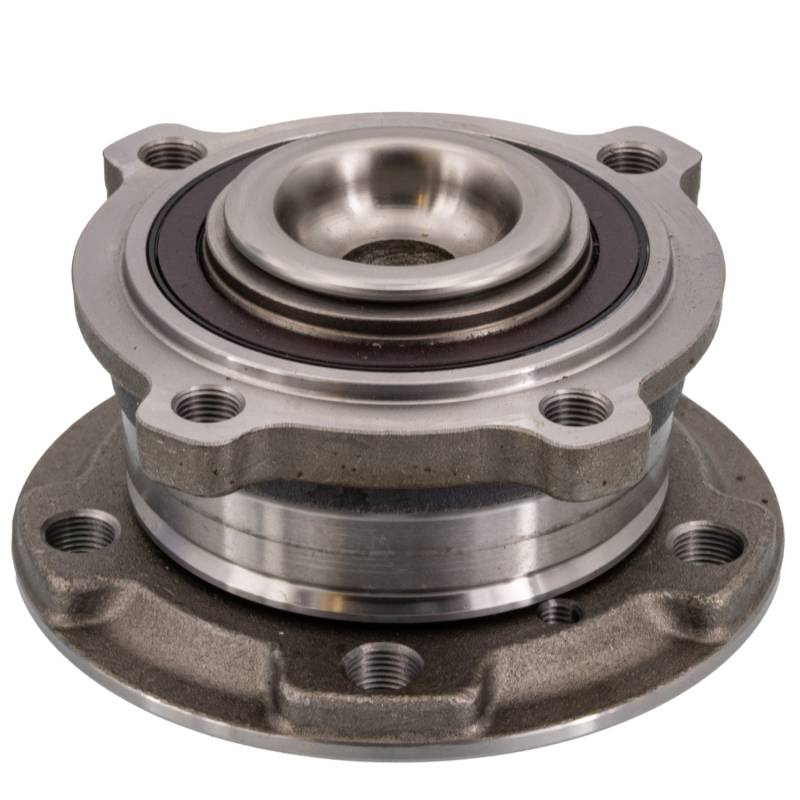

PRODUCT TYPE: HUB ASSEMBLY

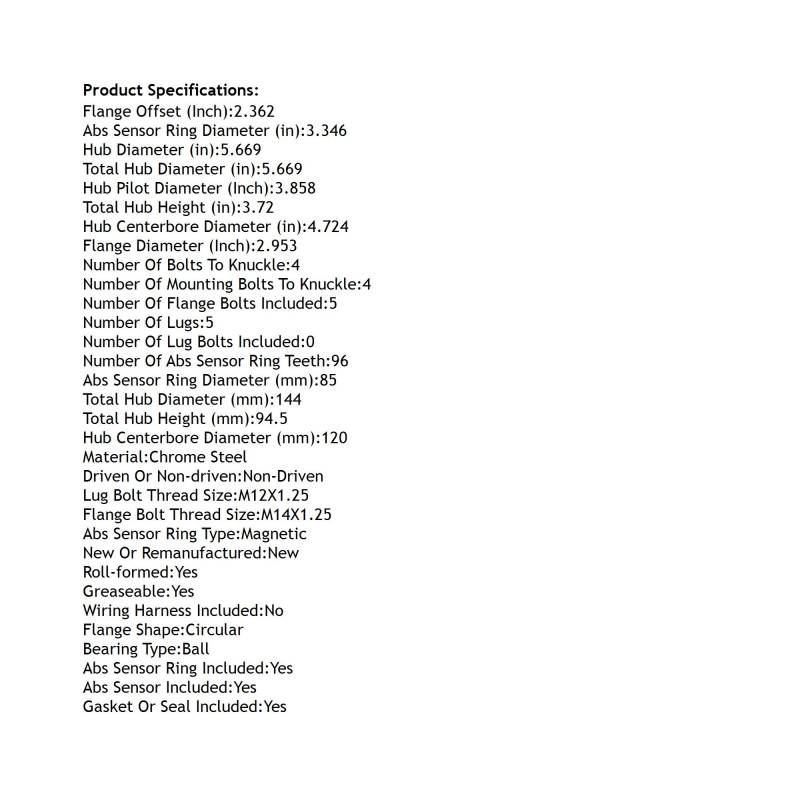

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.346
ABS SENSOR RING DIAMETER (MM): 85
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.25
FLANGE DIAMETER (INCH): 2.953
FLANGE OFFSET (INCH): 2.362
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.669
HUB PILOT DIAMETER (INCH): 3.858
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.669
TOTAL HUB DIAMETER (MM): 144
TOTAL HUB HEIGHT (IN): 3.72
TOTAL HUB HEIGHT (MM): 94.5
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-705593
MOOG HUB ASSEMBLIES: 513437
APPLICATIONS:
BMW X5 (2014-2018)
BMW X6 (2015-2019)
