THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

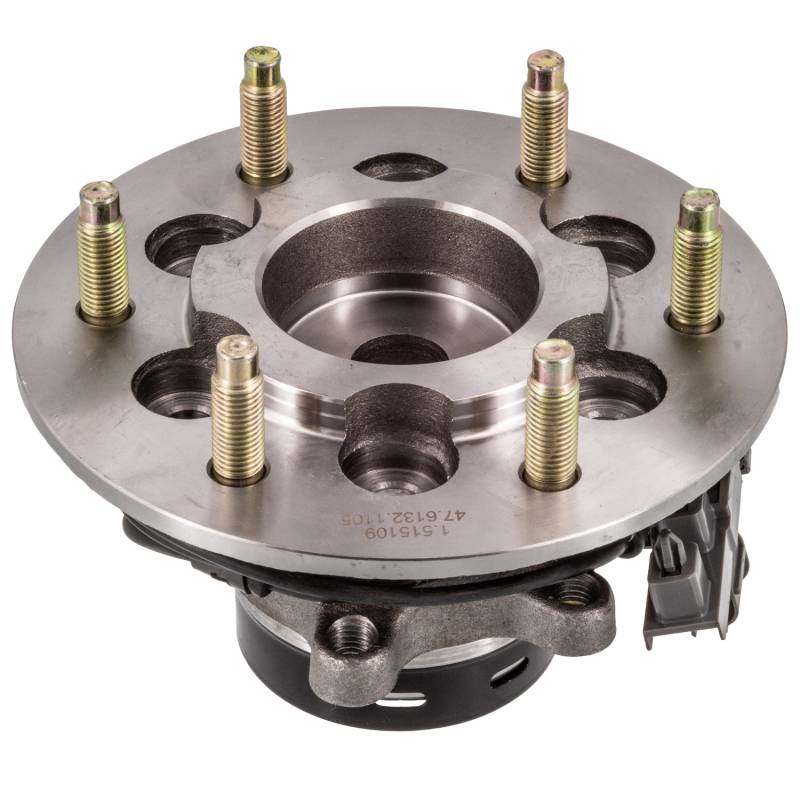

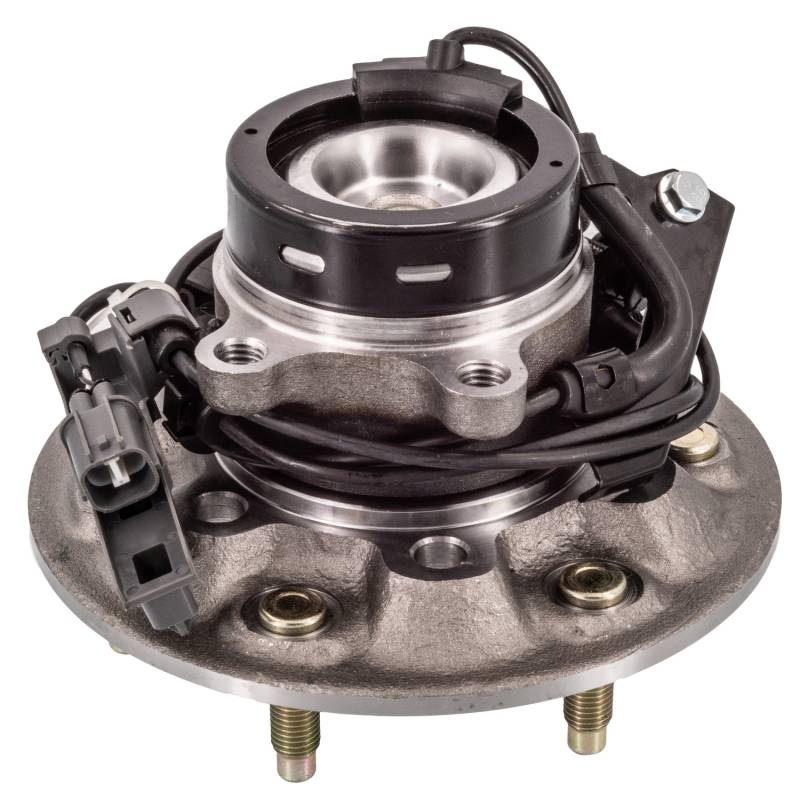

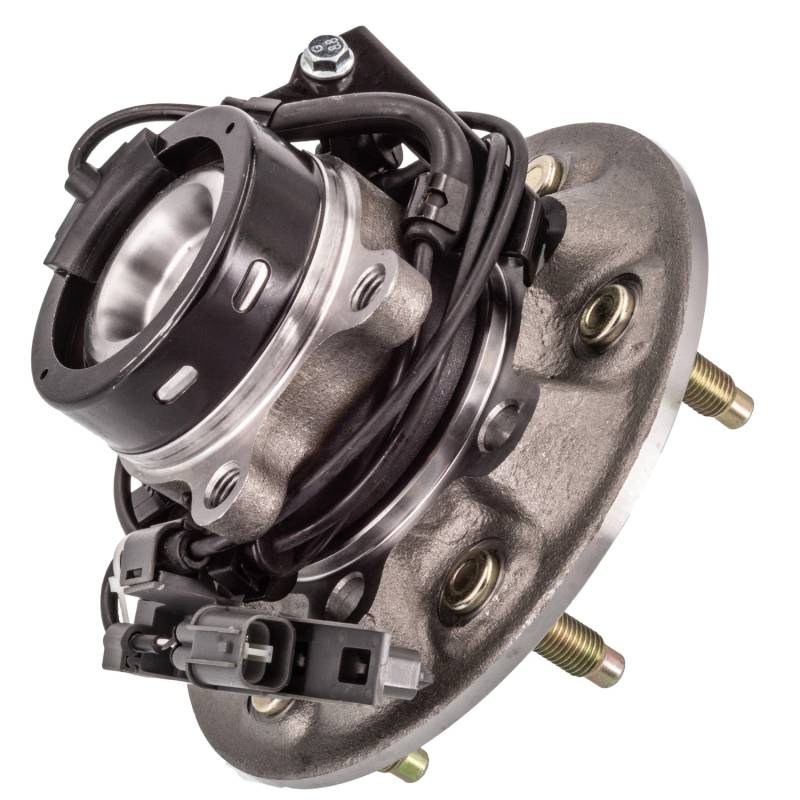

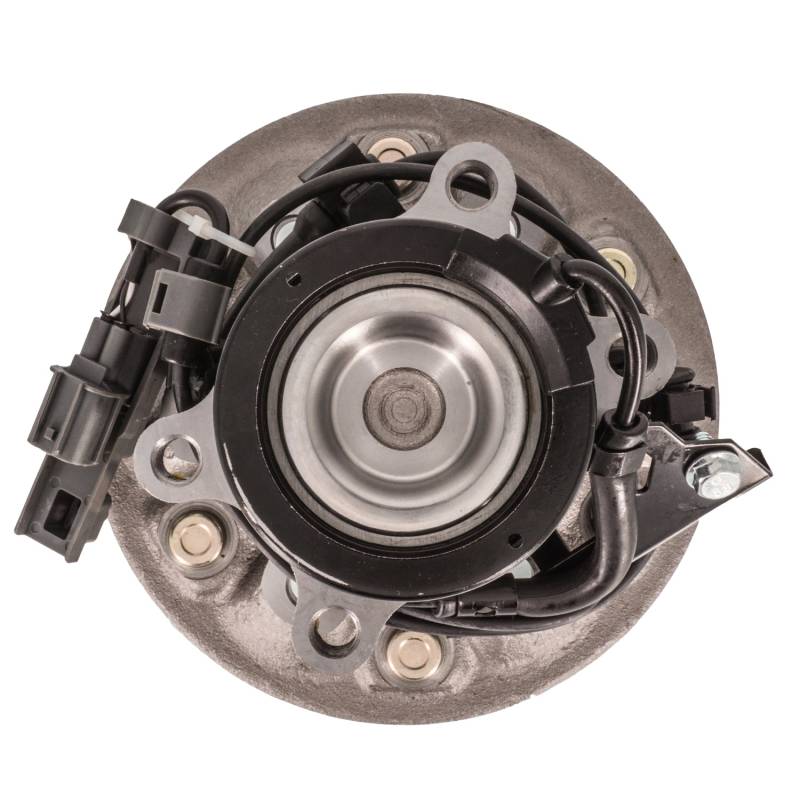

PRODUCT TYPE: HUB ASSEMBLY

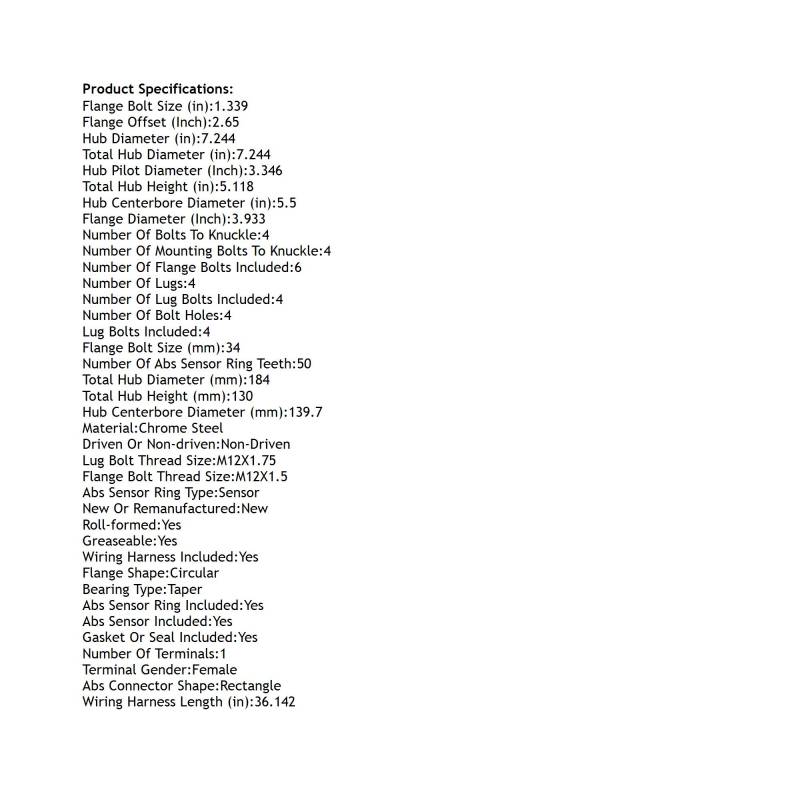

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.339
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 3.933
FLANGE OFFSET (INCH): 2.65
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.244
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.244
TOTAL HUB DIAMETER (MM): 184
TOTAL HUB HEIGHT (IN): 5.118
TOTAL HUB HEIGHT (MM): 130
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 36.142
REPLACES:
AUTOPART INTERNATIONAL: 1411-49289
BCA: WE61767
CENTRIC PARTS: 40766013
FAG US: 102159
GSP: 106109
MEVOTECH: H515109
MOOG HUB ASSEMBLIES: 515109
NAPA: PBR930702
APPLICATIONS:
CHEVROLET COLORADO (2004-2008)
GMC CANYON (2004-2008)
