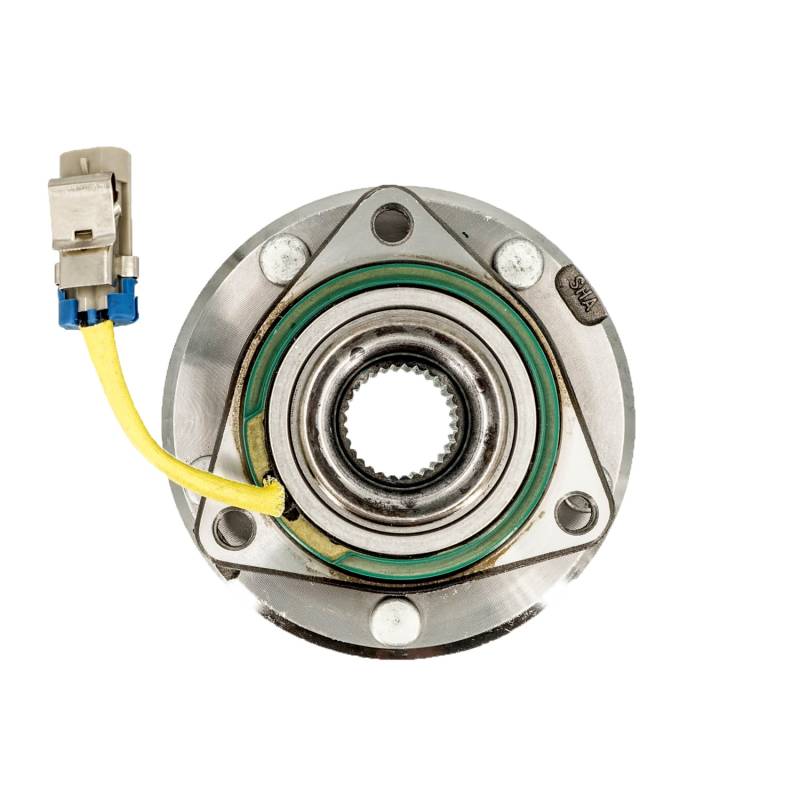

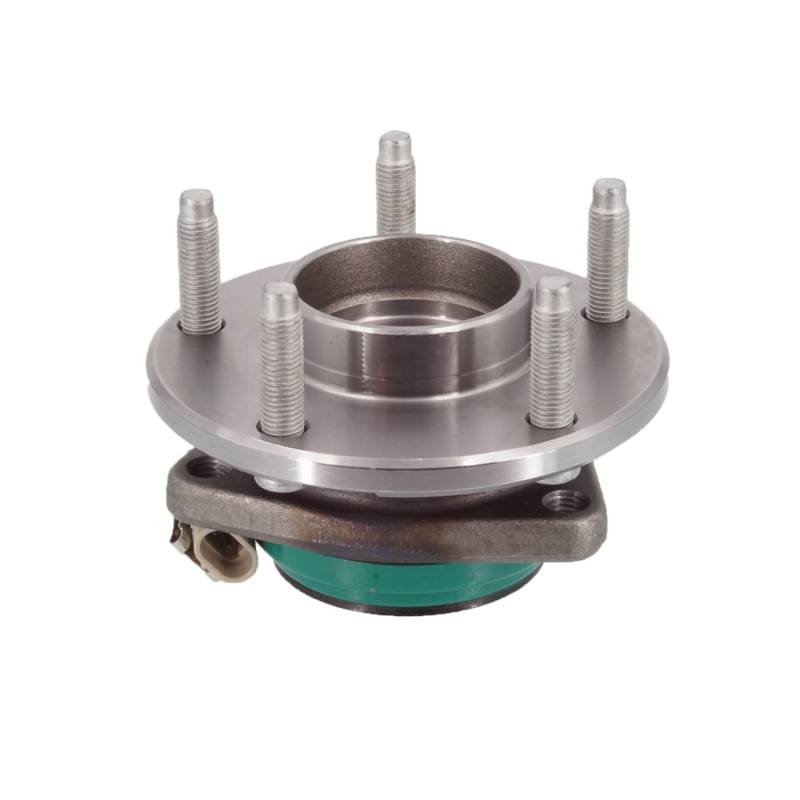

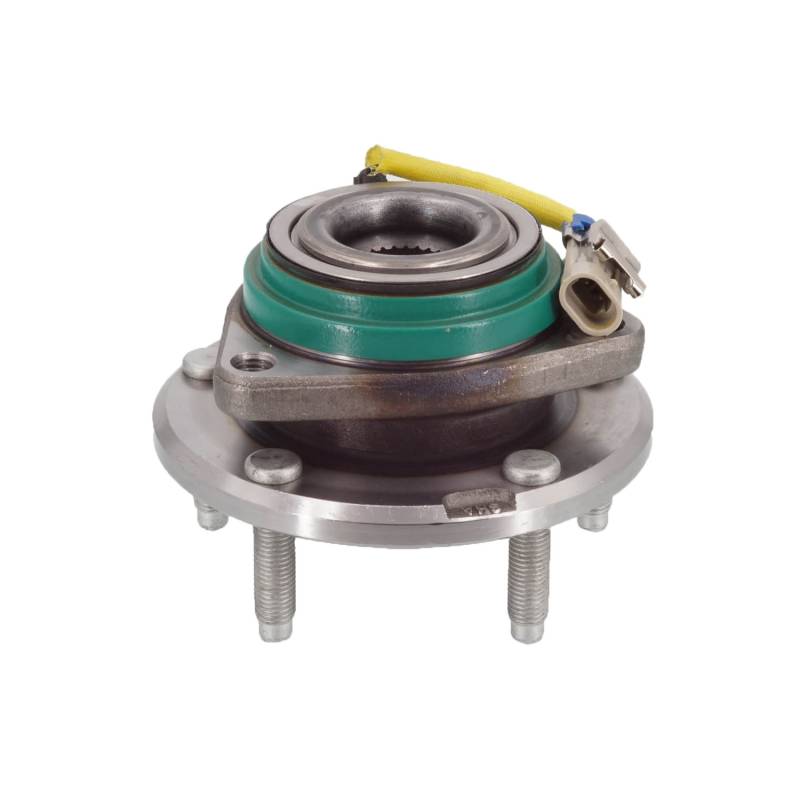

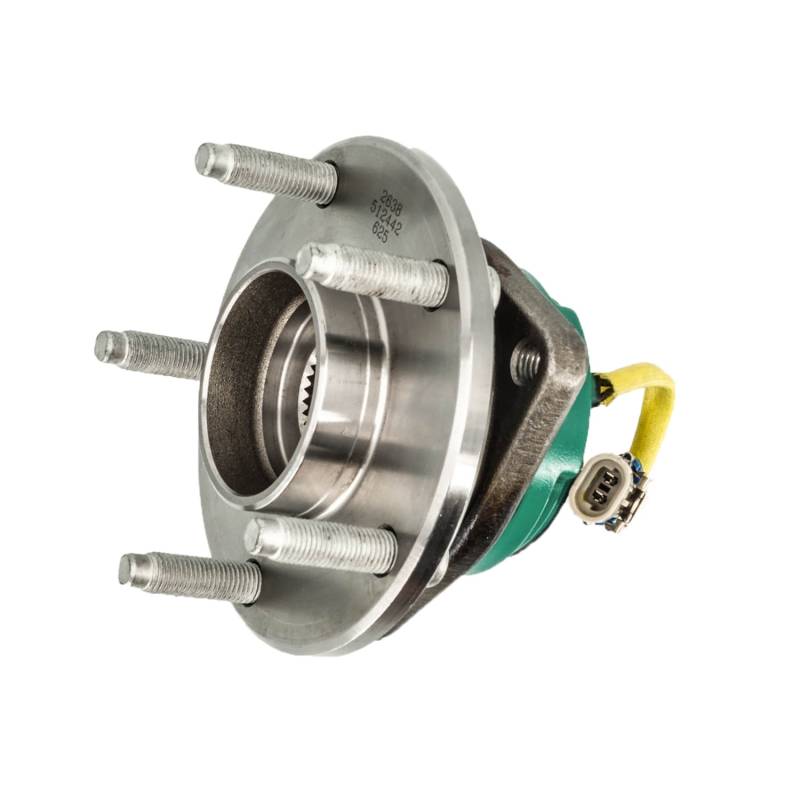

New Hub Assembly Compatible With Chevrolet Corvette 6.2L 2009 2010 2011 2012 2013 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

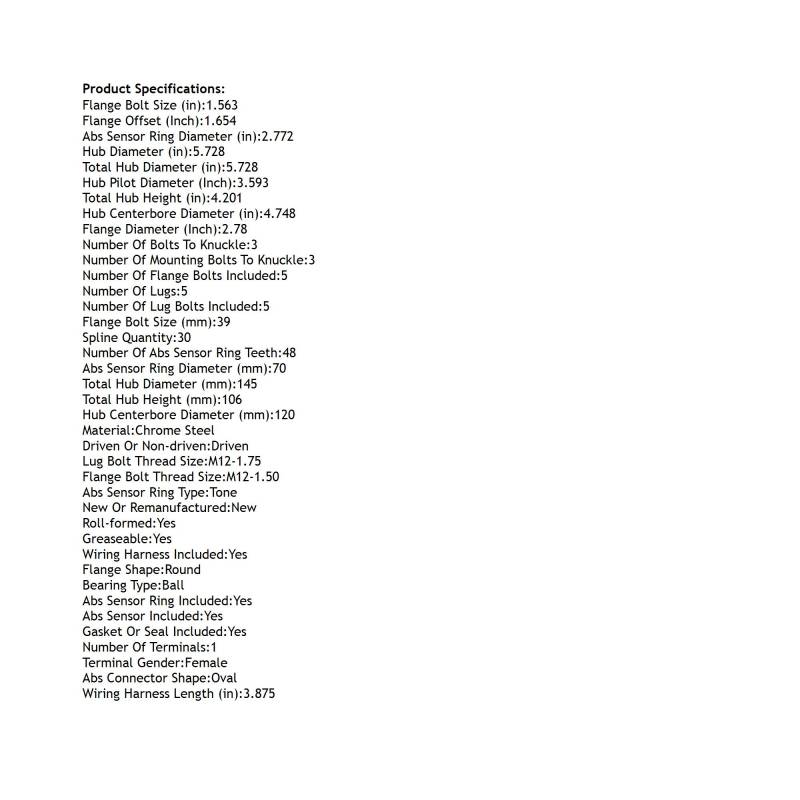

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.772
ABS SENSOR RING DIAMETER (MM): 70
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.563
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.748
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.201
TOTAL HUB HEIGHT (MM): 106
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 3.875

REPLACES:
ACDELCO: 13588035
AUTOPART INTERNATIONAL: 1411-423160
BCA: WE61622
CENTRIC PARTS: 40262026
FAG US: 102284
MEVOTECH: H512442
MOOG HUB ASSEMBLIES: 512442
NAPA: PBR930788

APPLICATIONS:
CHEVROLET CORVETTE (2009-2013)
