THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

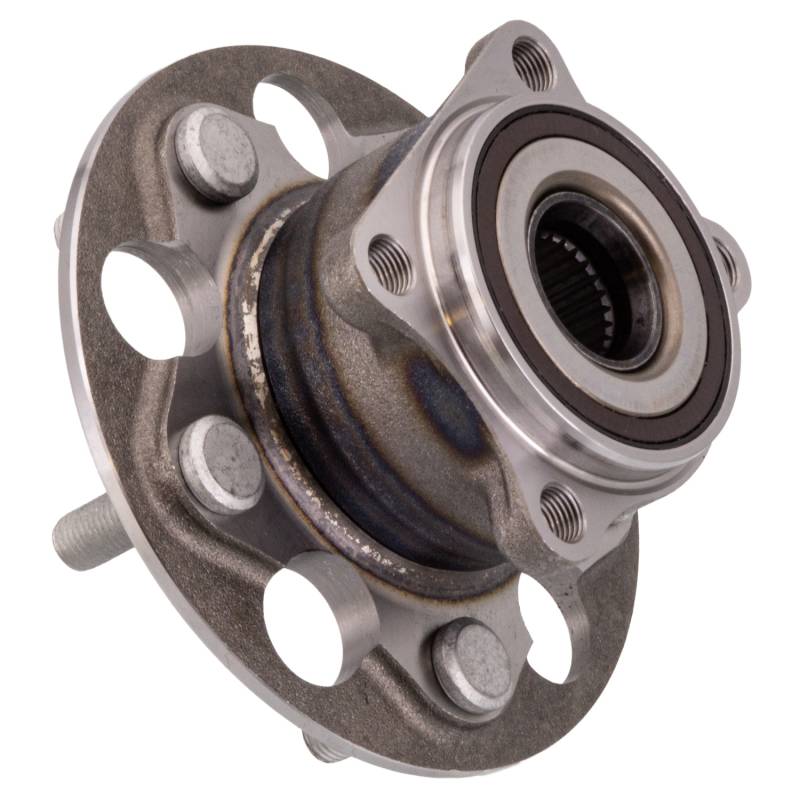

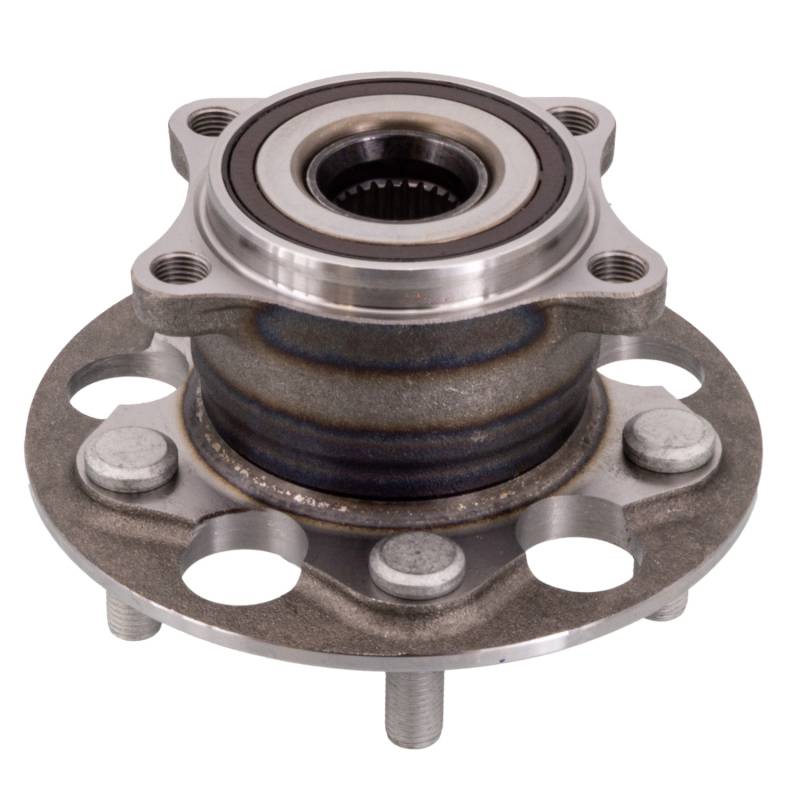

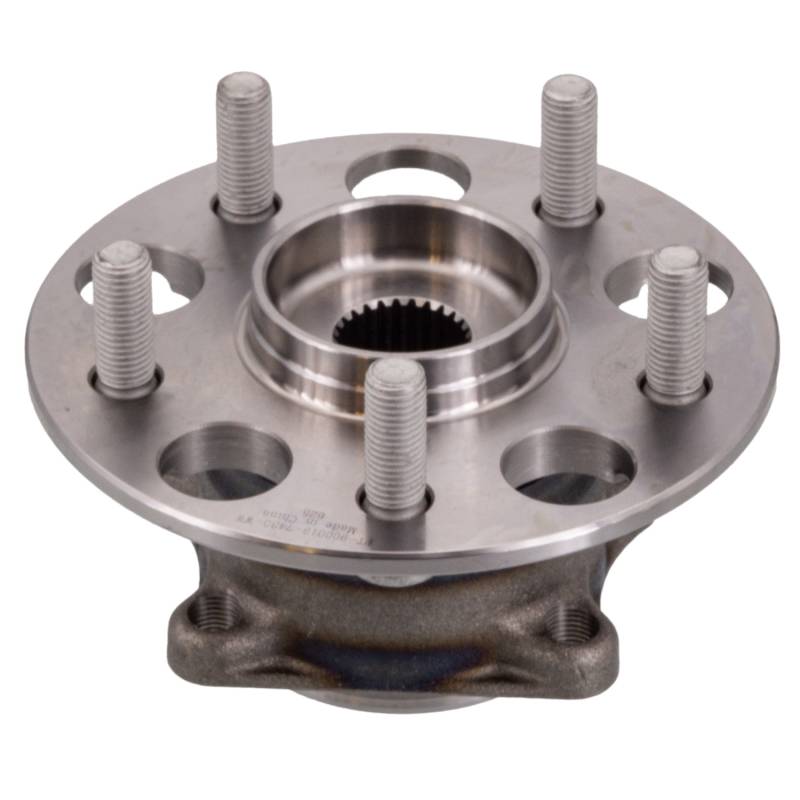

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 2.61
ABS SENSOR RING DIAMETER (MM): 66.4
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.16
FLANGE BOLT SIZE (MM): 29.4
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.44
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.97
HUB PILOT DIAMETER (INCH): 2.99
LUG BOLT THREAD SIZE: M12-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.97
TOTAL HUB DIAMETER (MM): 151.7
TOTAL HUB HEIGHT (IN): 3.87
TOTAL HUB HEIGHT (MM): 98.4
REPLACES:
AUTOPART INTERNATIONAL: 1411-668846
COAST TO COAST: 900019
GSP: 690035
ZZZN: 42410-0R030
APPLICATIONS:
TOYOTA CAMRY (2018-2024)
TOYOTA RAV4 (2019-2023)
LEXUS ES250 (2021-2023)
TOYOTA RAV4 PRIME (2021-2023)
TOYOTA VENZA (2021-2023)
TOYOTA COROLLA CROSS (2022-2023)
