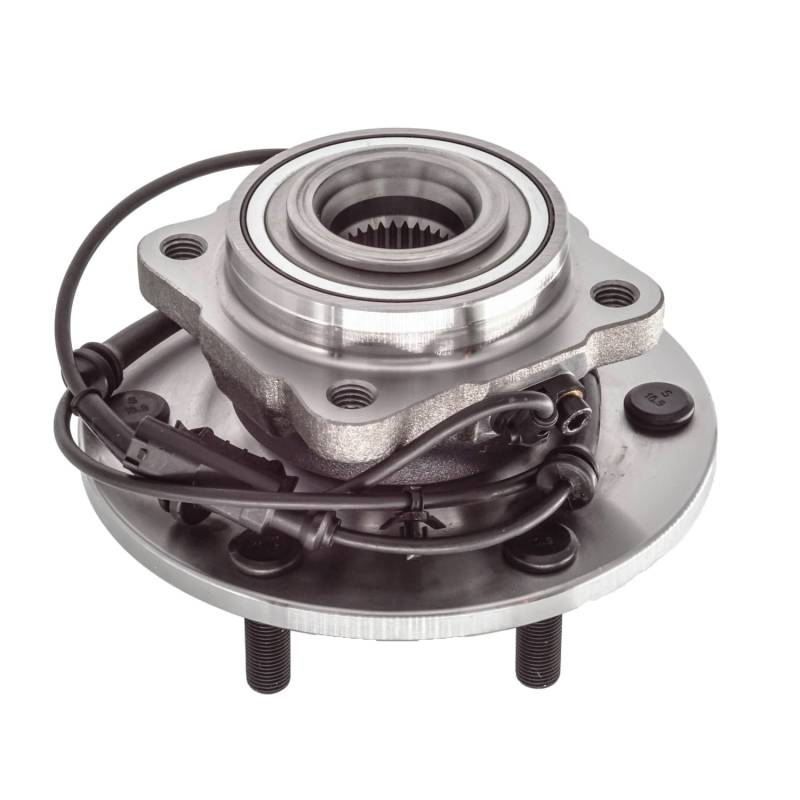

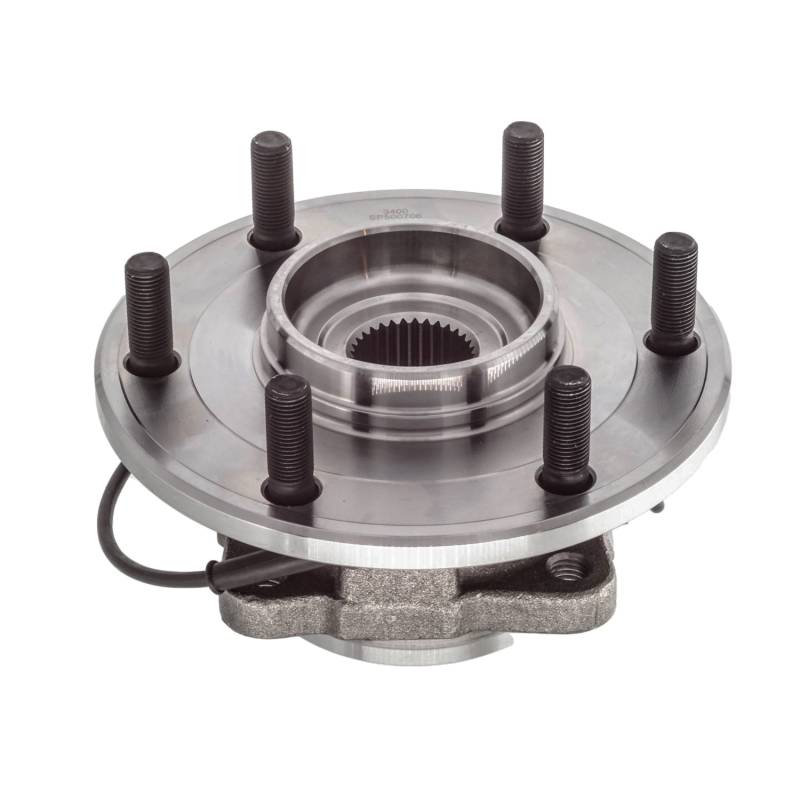

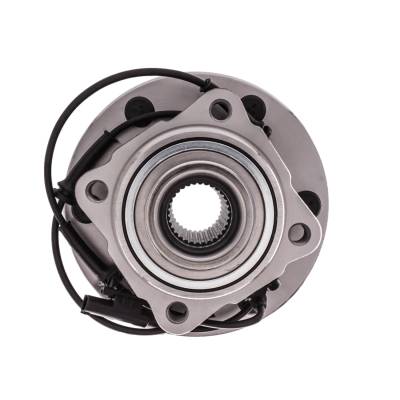

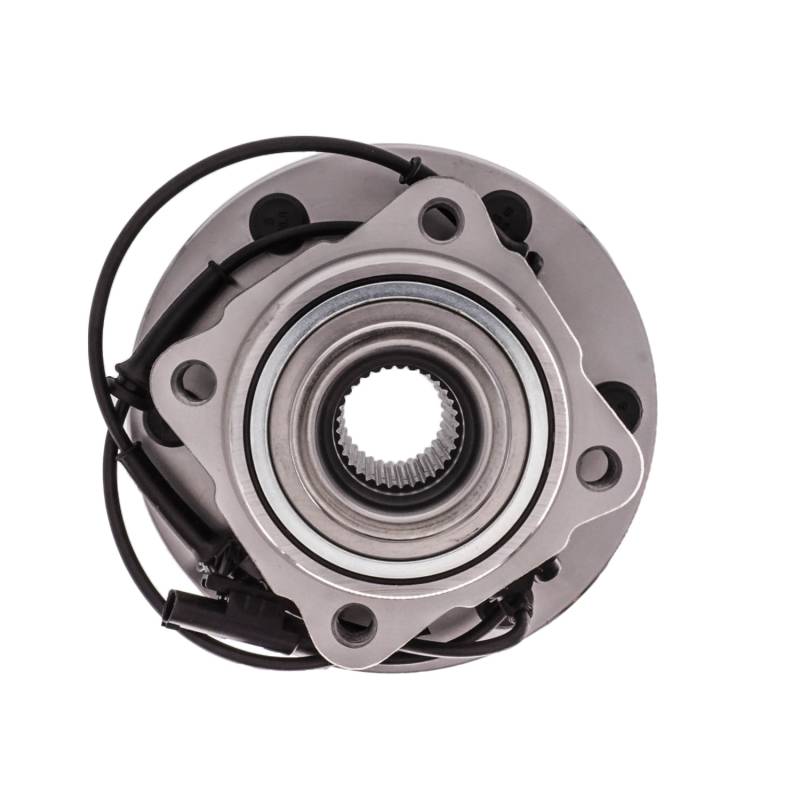

New Hub Assembly Compatible With Nissan Armada 5.6L 2012 2013 2014 2015 By Part Numbers Sp500706

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

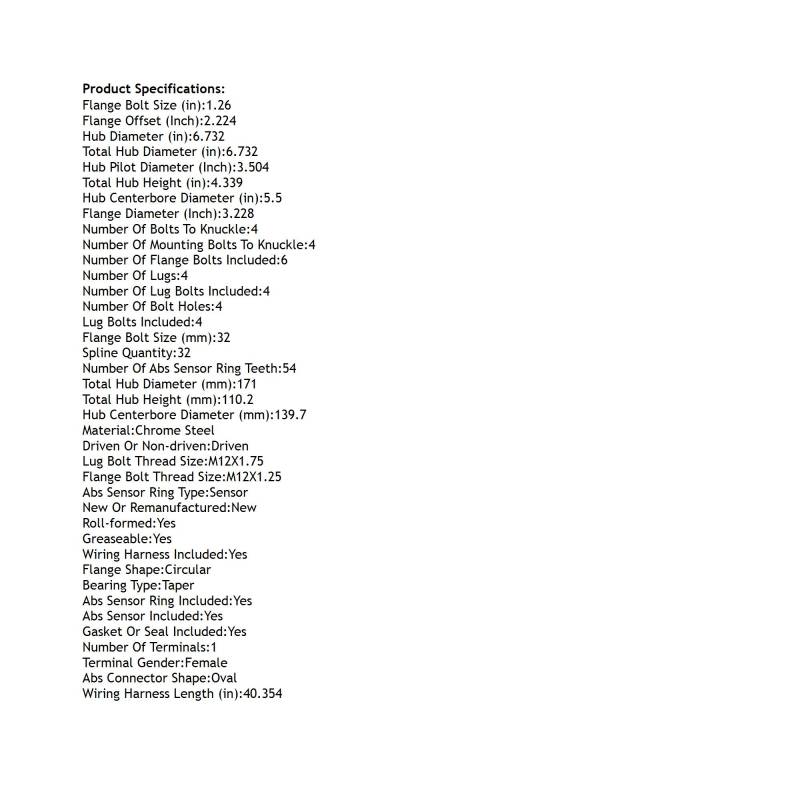

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.26
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 3.228
FLANGE OFFSET (INCH): 2.224
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 6.732
HUB PILOT DIAMETER (INCH): 3.504
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.732
TOTAL HUB DIAMETER (MM): 171
TOTAL HUB HEIGHT (IN): 4.339
TOTAL HUB HEIGHT (MM): 110.2
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 40.354

REPLACES:
AUTOPART INTERNATIONAL: 1411-556384
BECK/ARNLEY: 051-6479
CENTRIC PARTS: 40242009
GSP: 530011
MEVOTECH: MB30324
MOOG HUB ASSEMBLIES: 541014
NAPA: PBR930887

APPLICATIONS:
NISSAN ARMADA (2012-2015)
