THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

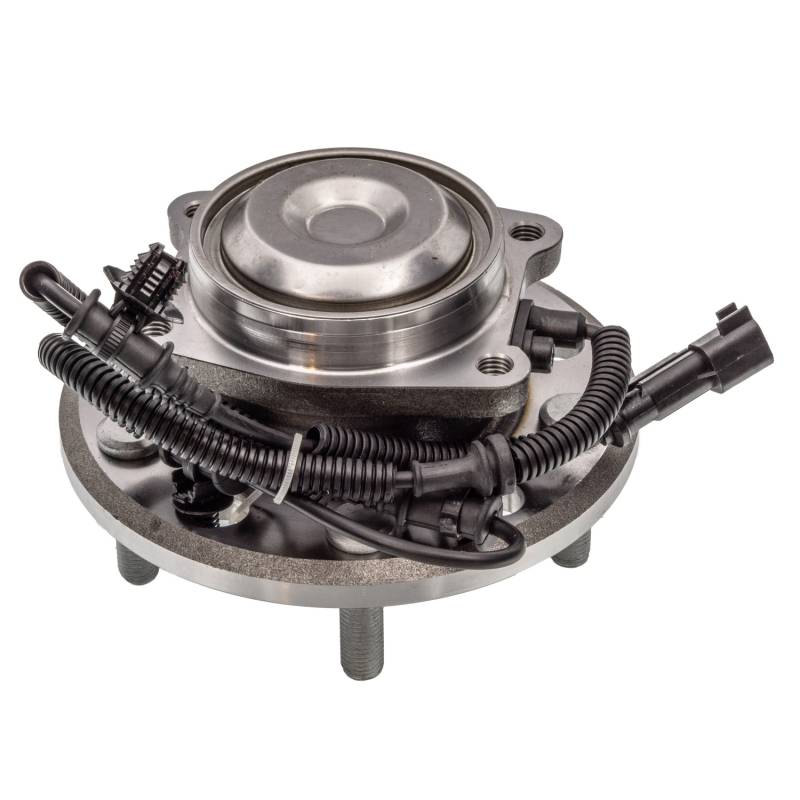

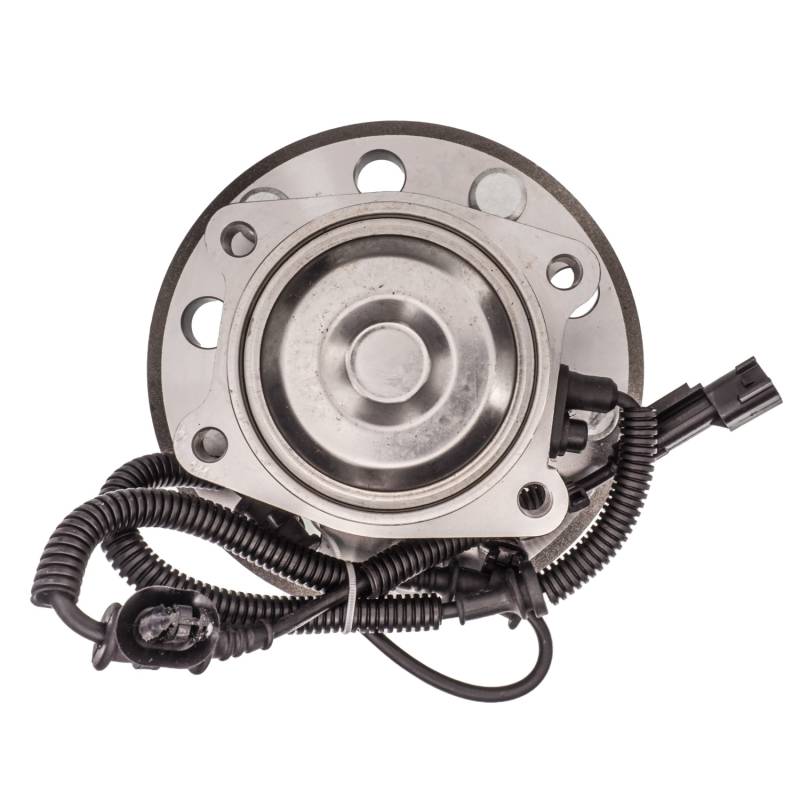

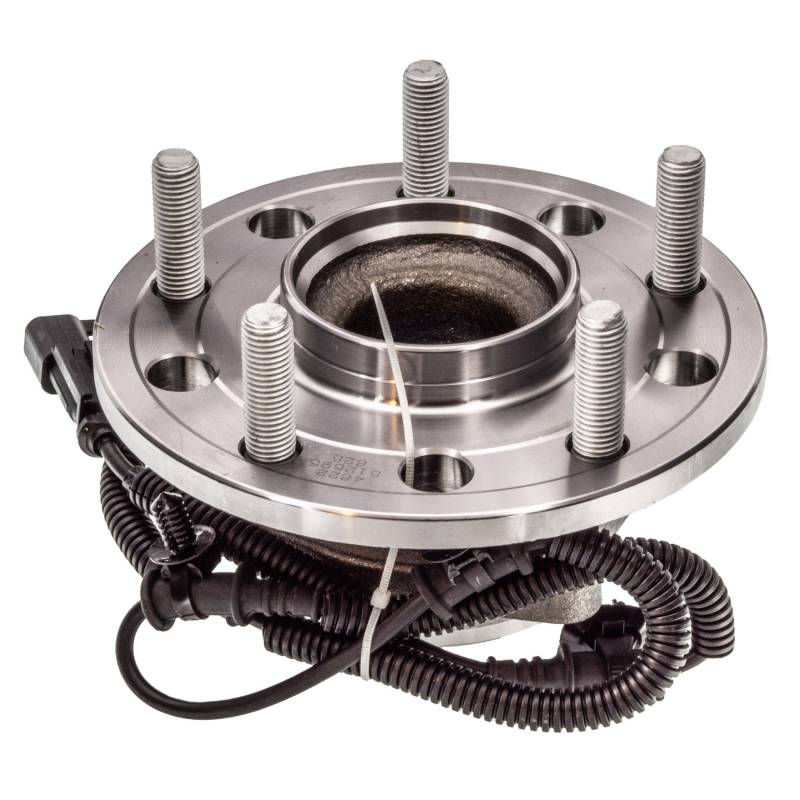

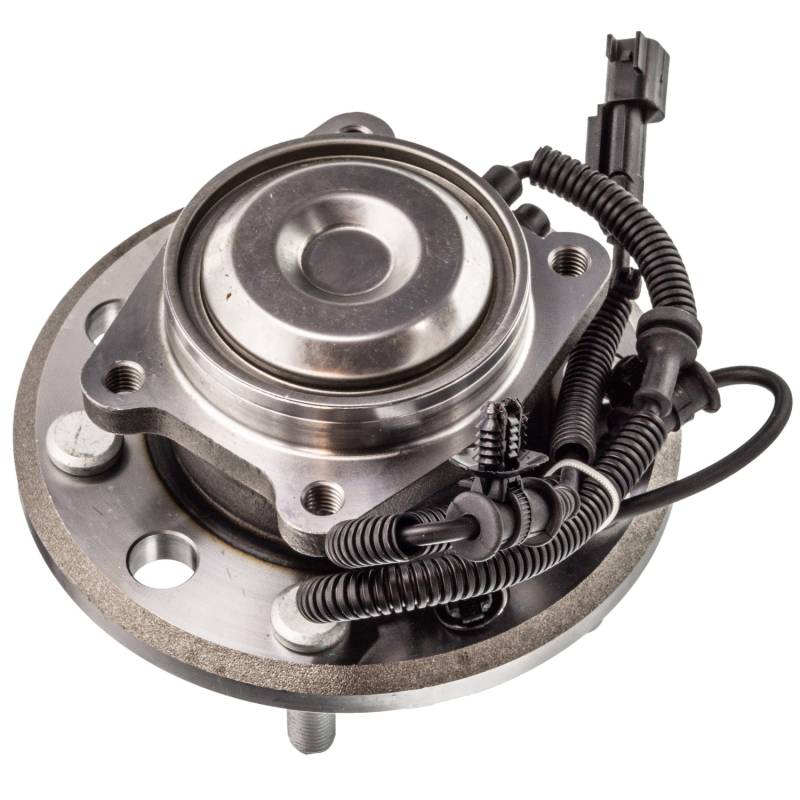

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.4
FLANGE BOLT SIZE (MM): 35.5
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.85
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.36
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLT THREAD SIZE: M10-1.5-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.36
TOTAL HUB DIAMETER (MM): 161.6
TOTAL HUB HEIGHT (IN): 4.21
TOTAL HUB HEIGHT (MM): 107
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.125
REPLACES:
AUTOPART INTERNATIONAL: 1411-605362
BCA: WE61796
GSP: 120011
MOOG HUB ASSEMBLIES: 512595
NAPA: PBR930950
APPLICATIONS:
CHRYSLER PACIFICA (2017-2023)
CHRYSLER VOYAGER (2020-2021)
