THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

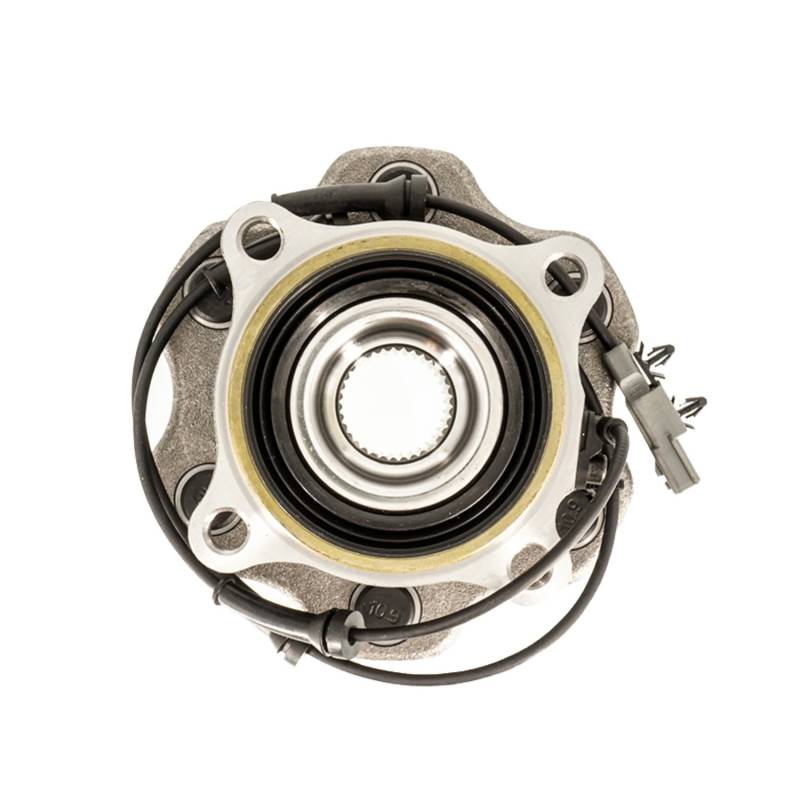

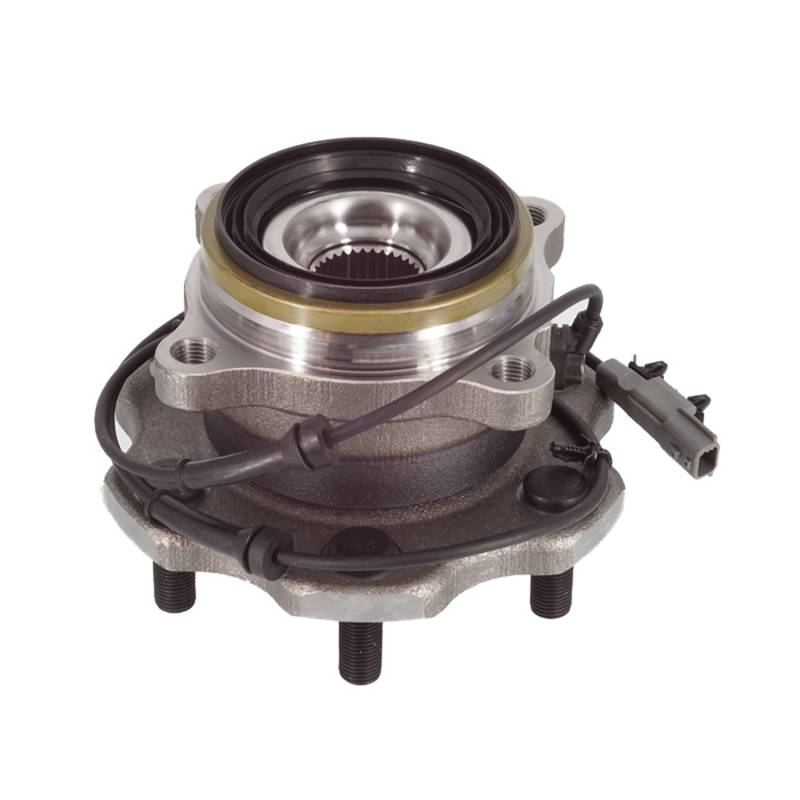

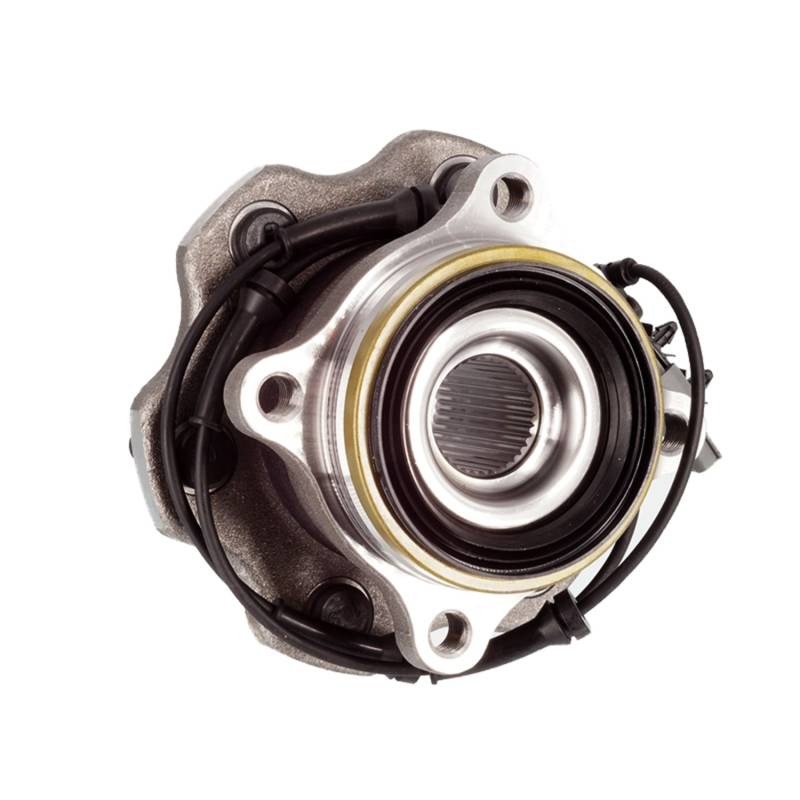

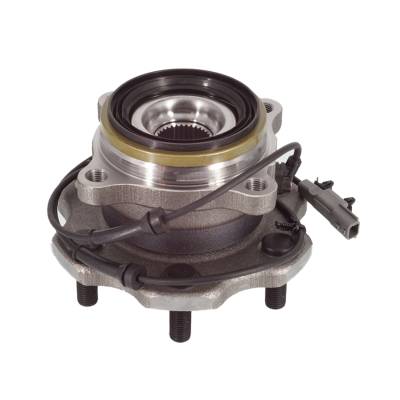

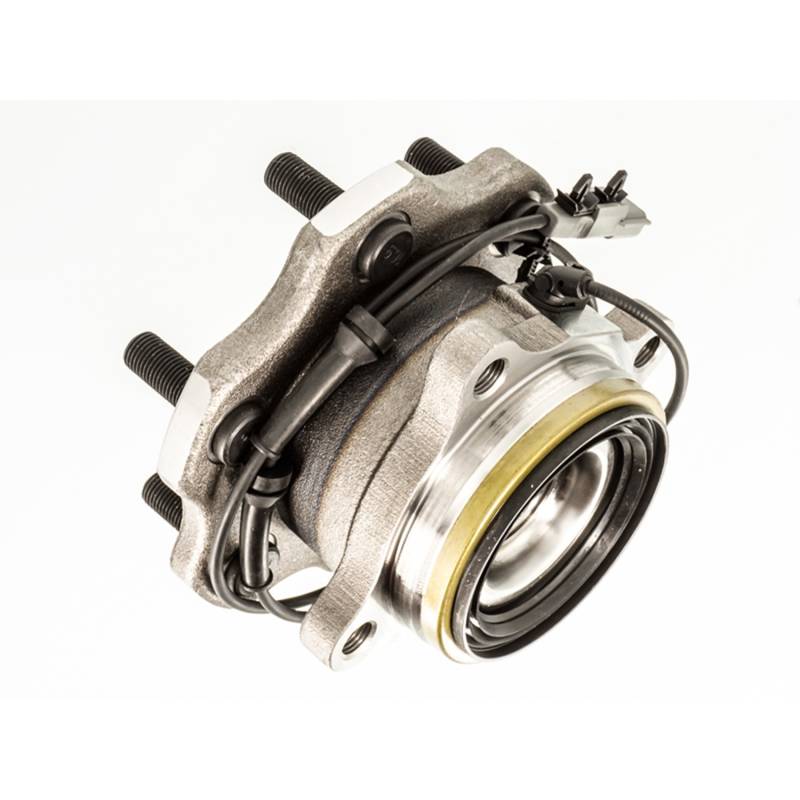

PRODUCT TYPE: HUB ASSEMBLY

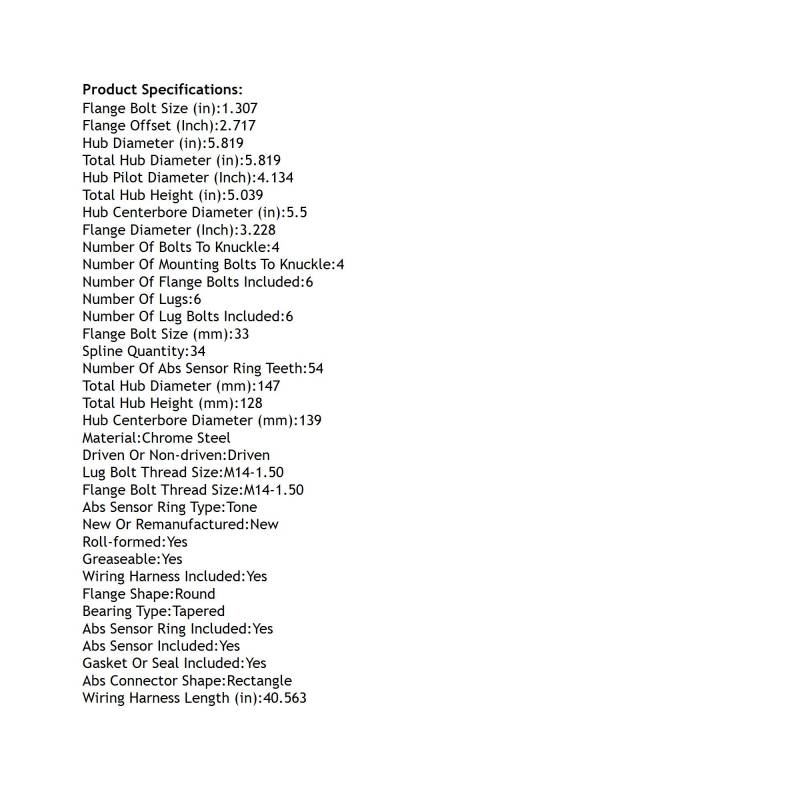

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.307
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.228
FLANGE OFFSET (INCH): 2.717
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 5.819
HUB PILOT DIAMETER (INCH): 4.134
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 34
TOTAL HUB DIAMETER (IN): 5.819
TOTAL HUB DIAMETER (MM): 147
TOTAL HUB HEIGHT (IN): 5.039
TOTAL HUB HEIGHT (MM): 128
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 40.563
REPLACES:
AUTOPART INTERNATIONAL: 1411-480997
CENTRIC PARTS: 40242006
FAG US: 103199
MOOG HUB ASSEMBLIES: 541016
APPLICATIONS:
INFINITI QX56 (2011-2013)
INFINITI QX80 (2014-2024)
NISSAN ARMADA (2017-2022)
