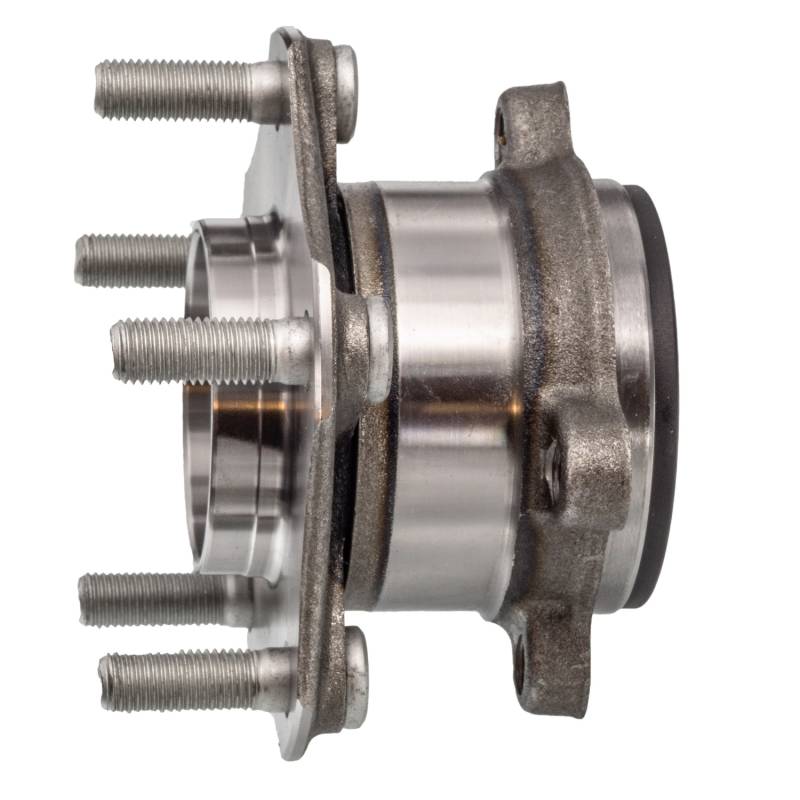

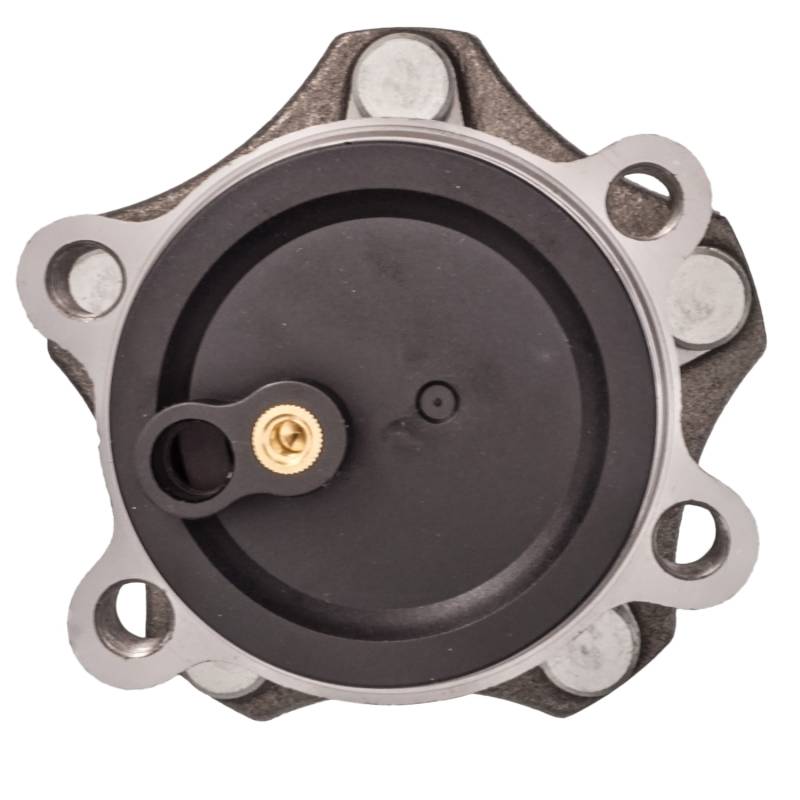

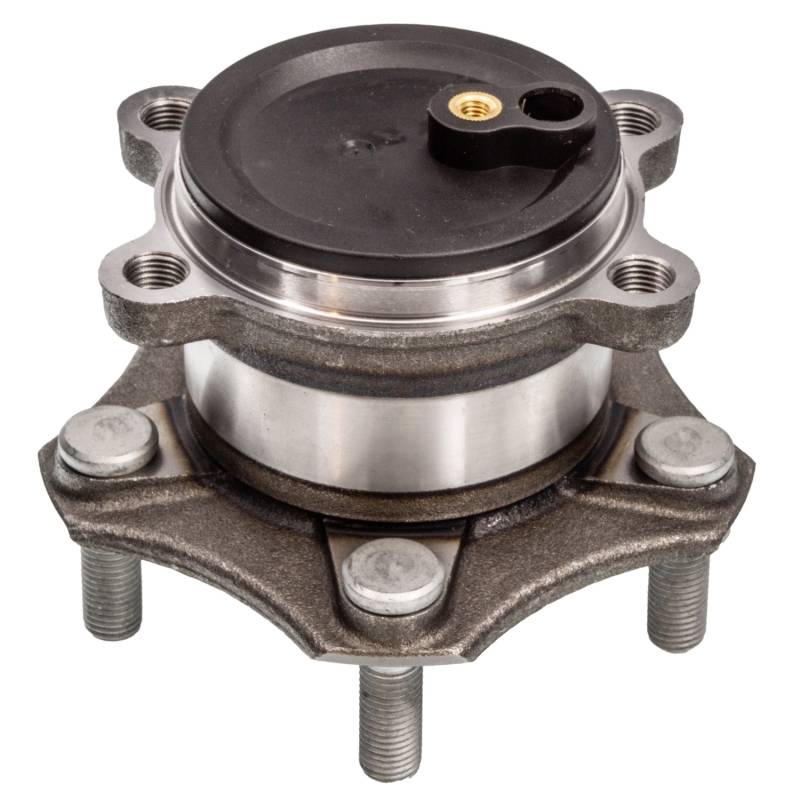

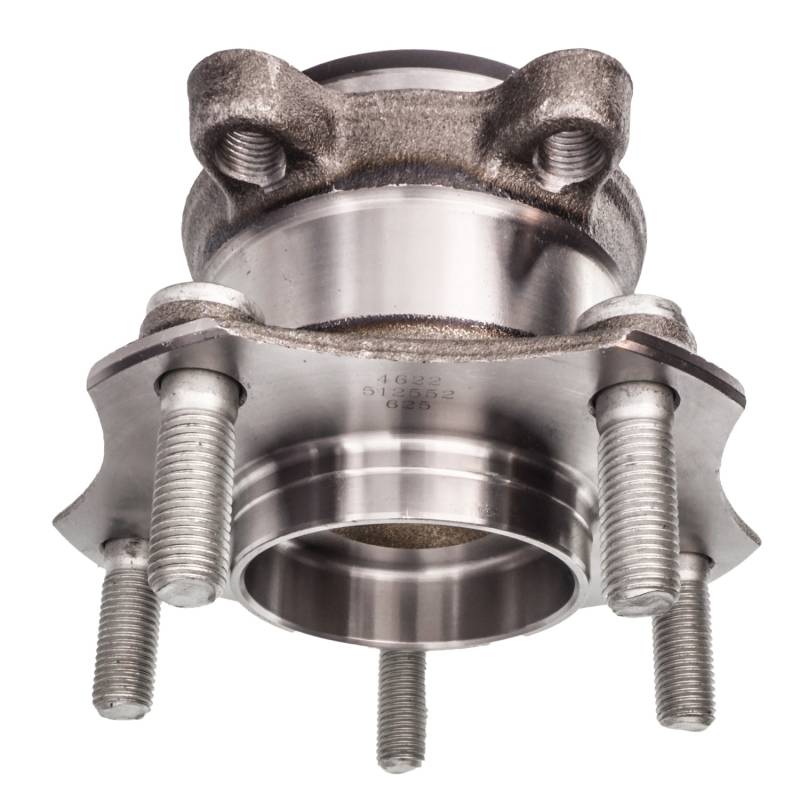

New Hub Assembly Compatible With Mazda 3 Sport 3 2.0L 2.5L 2014 2015 2016 2017 2018 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

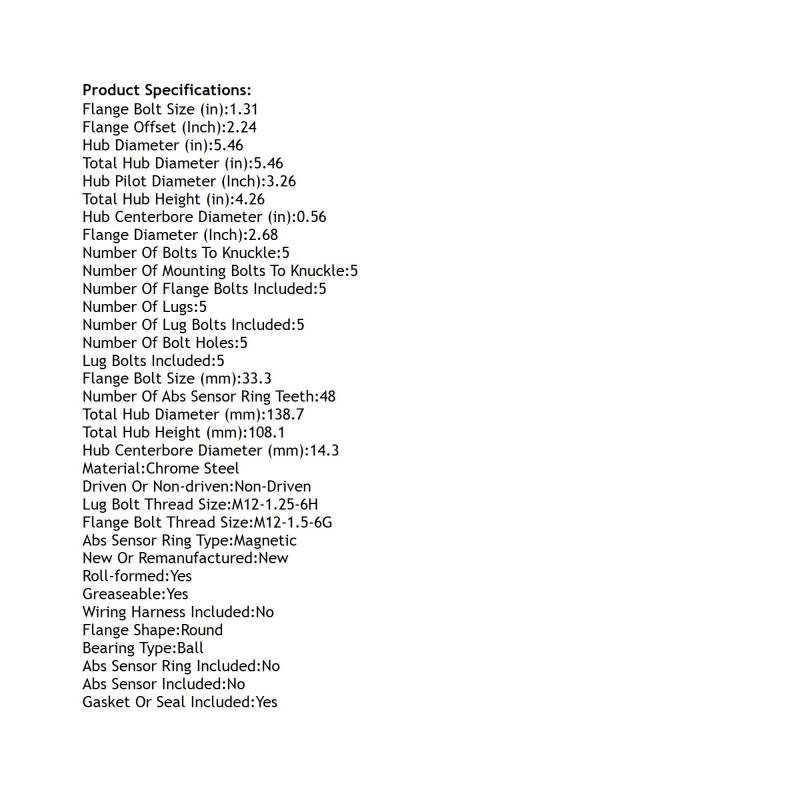

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.31
FLANGE BOLT SIZE (MM): 33.3
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.68
FLANGE OFFSET (INCH): 2.24
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 0.56
HUB CENTERBORE DIAMETER (MM): 14.3
HUB DIAMETER (IN): 5.46
HUB PILOT DIAMETER (INCH): 3.26
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.46
TOTAL HUB DIAMETER (MM): 138.7
TOTAL HUB HEIGHT (IN): 4.26
TOTAL HUB HEIGHT (MM): 108.1
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-611925
BCA: WE61838
MOOG HUB ASSEMBLIES: 512552

APPLICATIONS:
MAZDA 3 SPORT (2014-2018)
MAZDA 3 (2014-2018)
