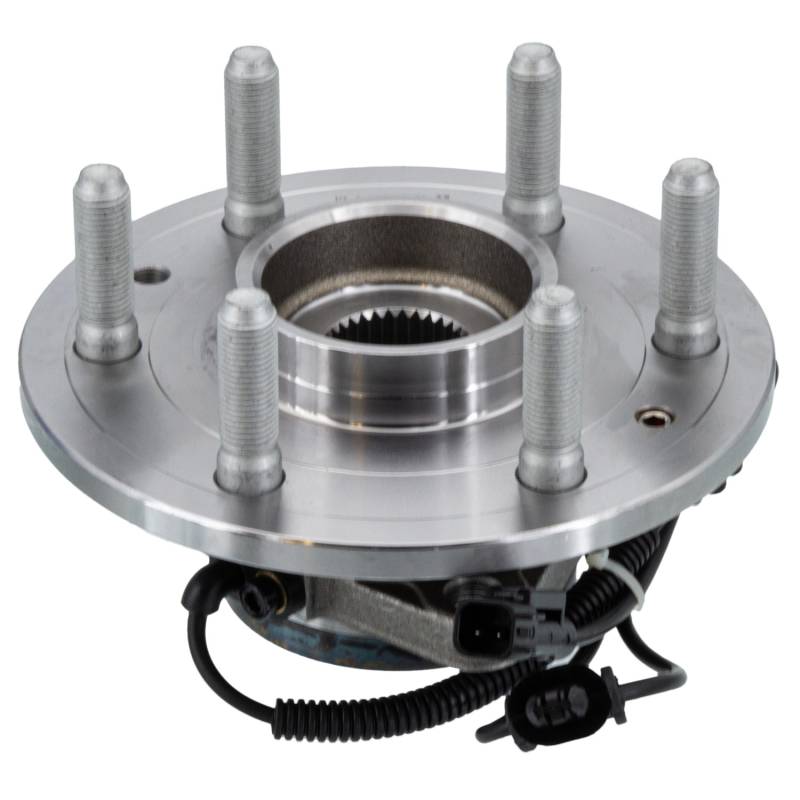

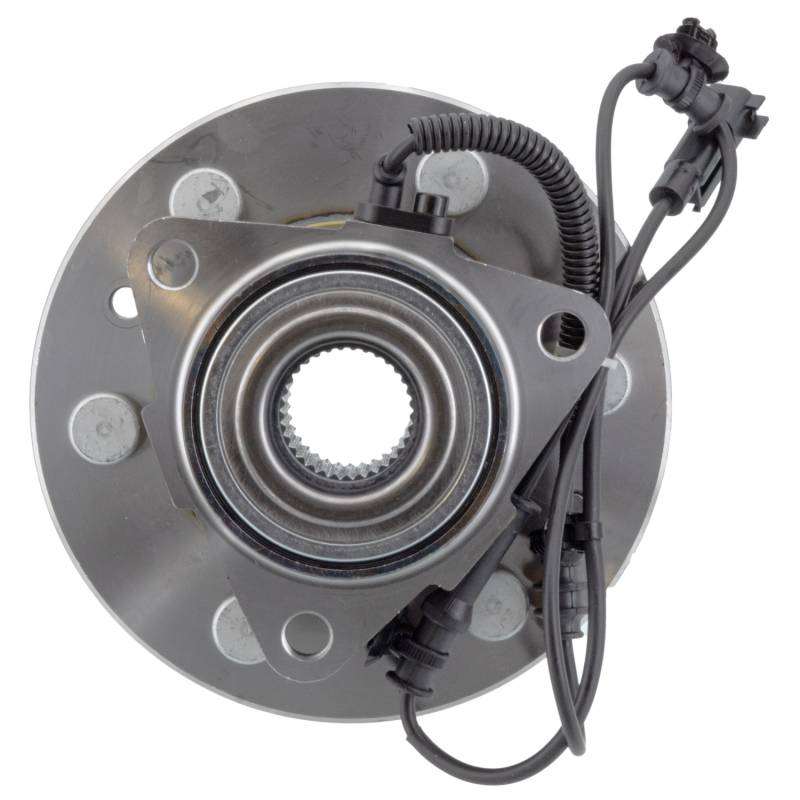

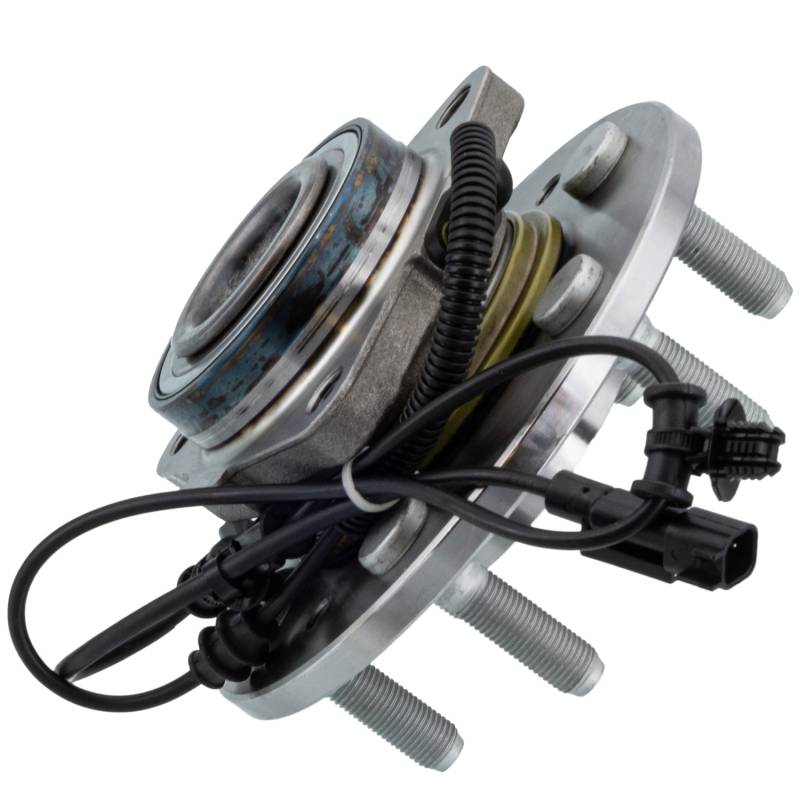

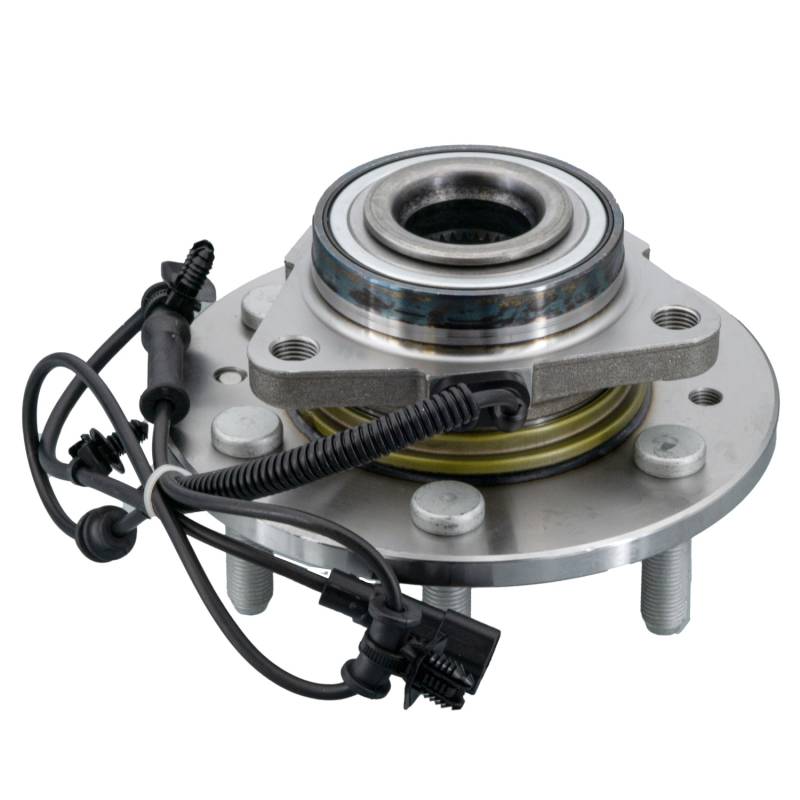

New Hub Assembly Compatible With Ram 1500 Classic 1500 2019 2020 2021 2022 2023 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

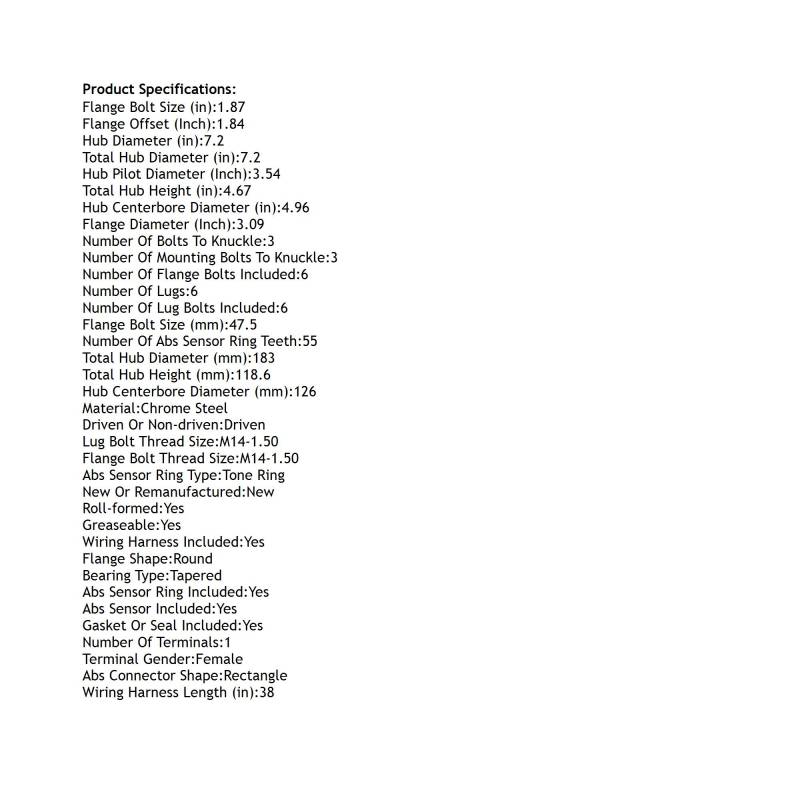

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.87
FLANGE BOLT SIZE (MM): 47.5
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.09
FLANGE OFFSET (INCH): 1.84
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.96
HUB CENTERBORE DIAMETER (MM): 126
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.67
TOTAL HUB HEIGHT (MM): 118.6
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 38

REPLACES:
AUTOPART INTERNATIONAL: 1411-704842
MOOG HUB ASSEMBLIES: 515179
MOPAR: 68237141AA 68237141AB 68237141AC 68237141AD 68237141AE 68237141AF 68237141AG

APPLICATIONS:
RAM 1500 CLASSIC (2019-2023)
RAM 1500 (2019-2023)
