THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

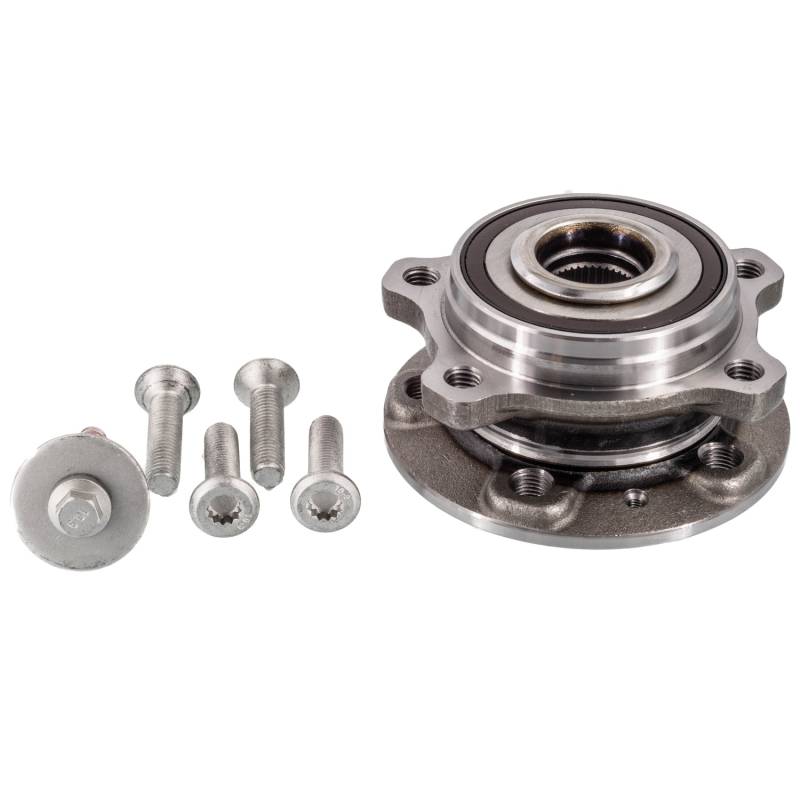

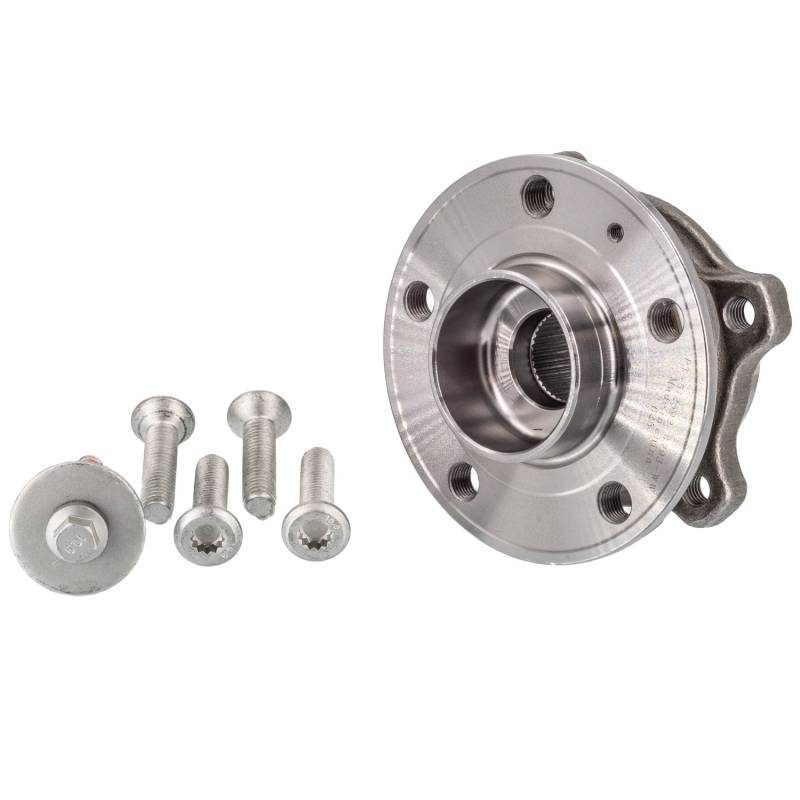

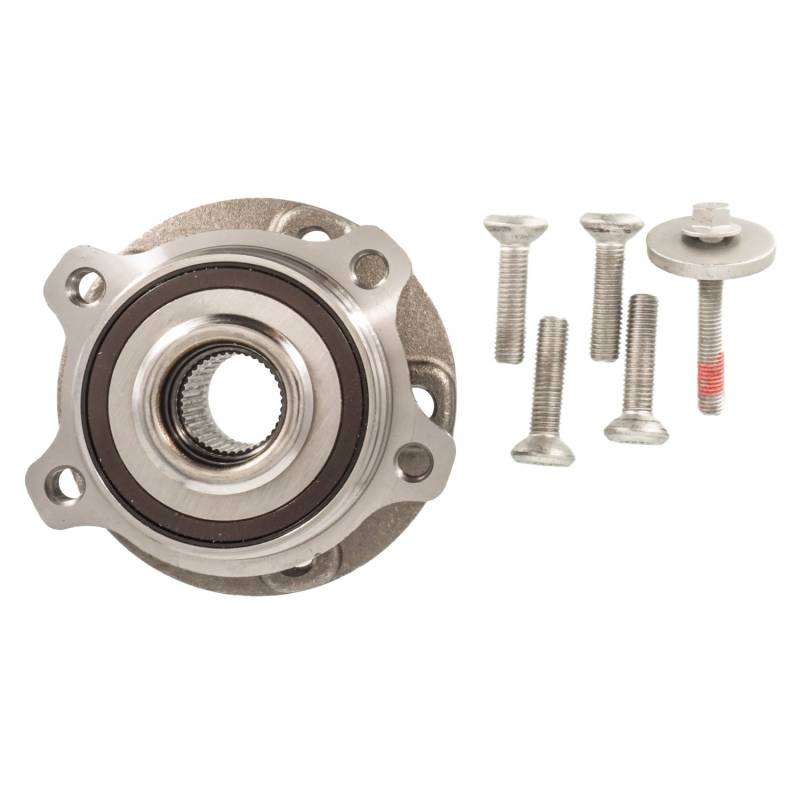

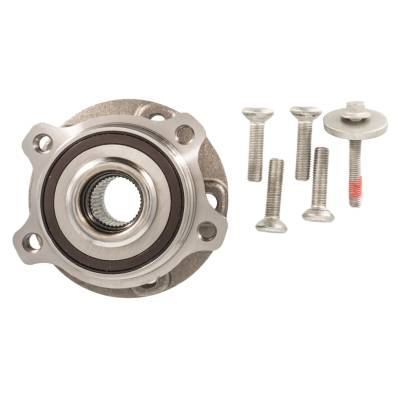

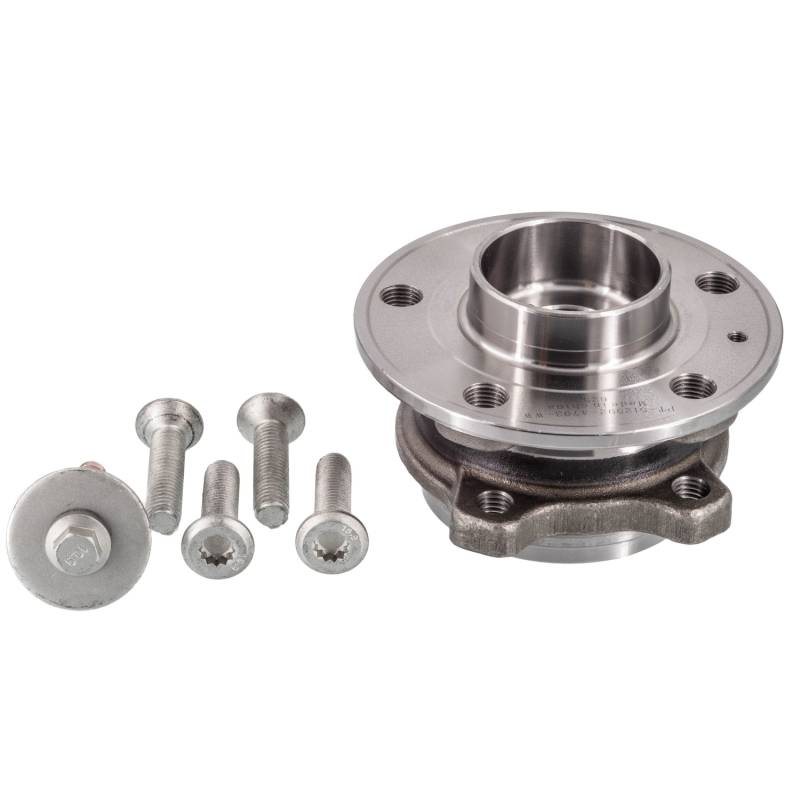

PRODUCT TYPE: HUB ASSEMBLY

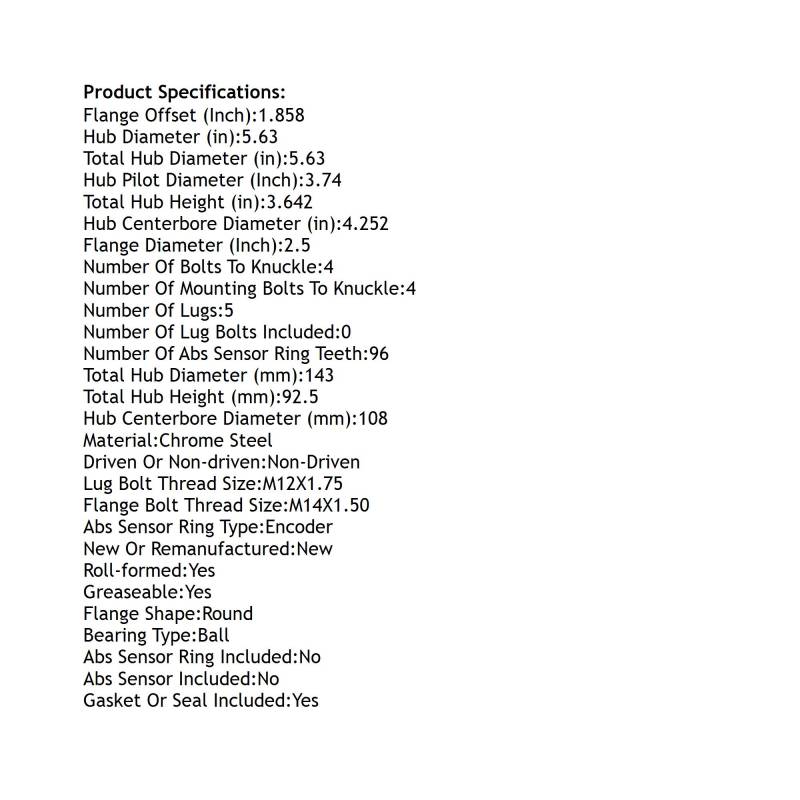

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 1.858
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.63
HUB PILOT DIAMETER (INCH): 3.74
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.63
TOTAL HUB DIAMETER (MM): 143
TOTAL HUB HEIGHT (IN): 3.642
TOTAL HUB HEIGHT (MM): 92.5
REPLACES:
AUTOPART INTERNATIONAL: 1411-612771
MOOG HUB ASSEMBLIES: 512592
ZZZN: 31476968 32221051 32246178 32315306
APPLICATIONS:
VOLVO XC90 (2016-2020)
VOLVO S90 (2017-2019)
VOLVO V90 CROSS COUNTRY (2018-2019)
VOLVO V90 (2018-2019)
VOLVO S60 (2019-2022)
VOLVO V60 CROSS COUNTRY (2019-2021)
VOLVO V60 (2019-2021)
VOLVO XC60 (2019-2020)
