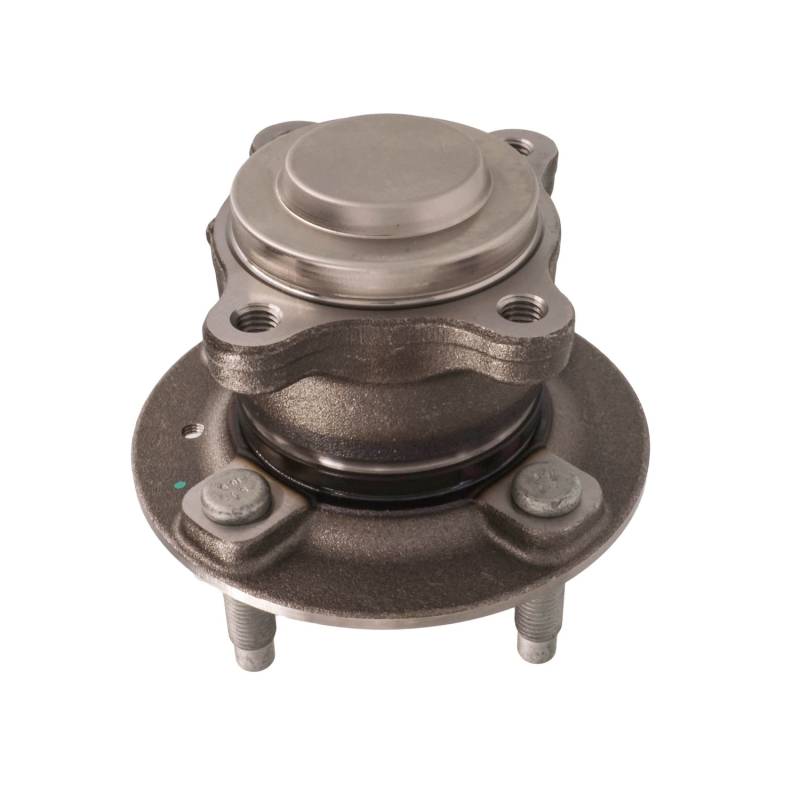

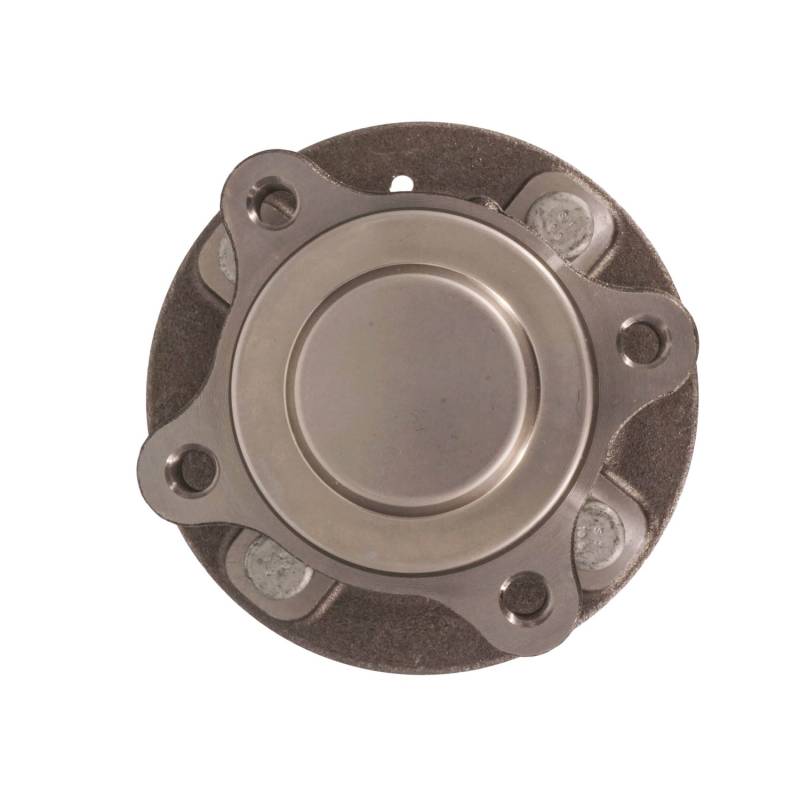

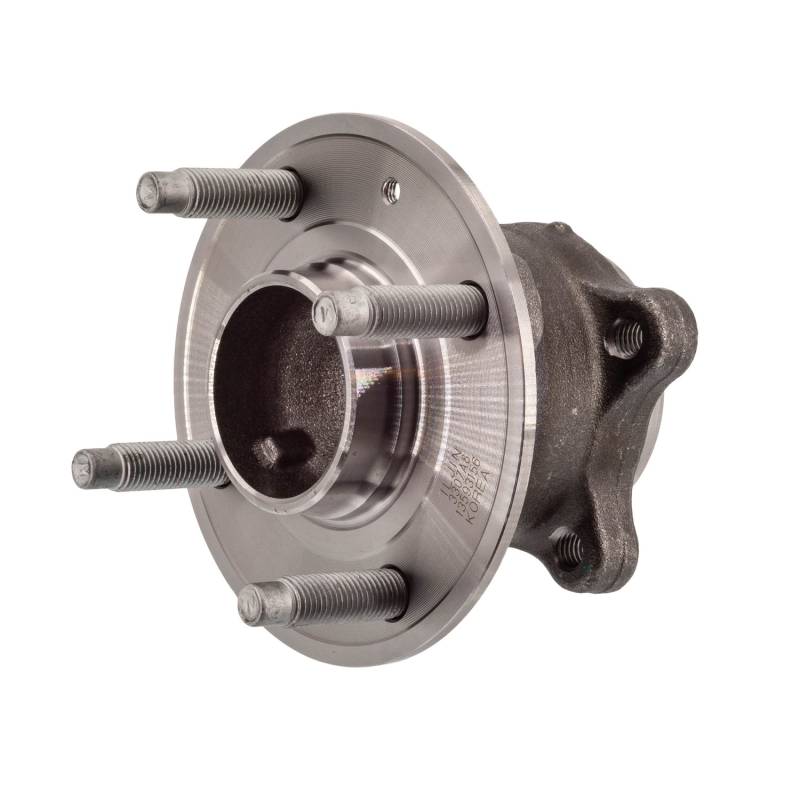

New Hub Assembly Compatible With Chevrolet Spark Ev 2016-2016 By Part Numbers Pt512586

(0) Reviews: Write first review
PT512586-PIO

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $159.30
Sale: $91.03
Save: 43%
Save: $68.27
    • Qty:
    Free Shipping!

    Description

    THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

    PRODUCT TYPE: HUB ASSEMBLY

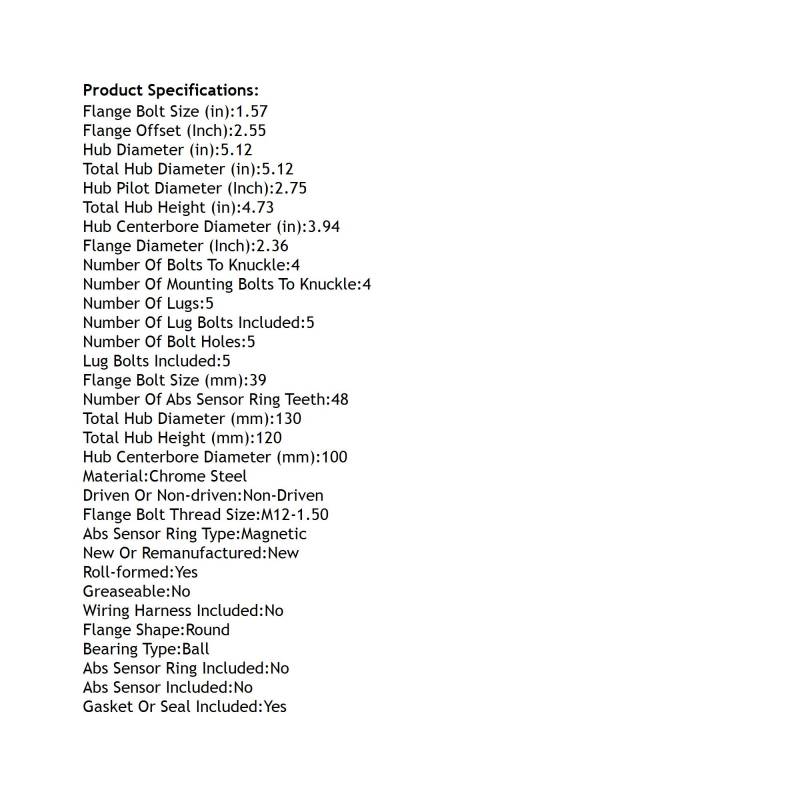

    SPECIFICATIONS:
    ABS SENSOR INCLUDED: NO
    ABS SENSOR RING INCLUDED: NO
    ABS SENSOR RING TYPE: MAGNETIC
    BEARING TYPE: BALL
    DRIVEN OR NON-DRIVEN: NON-DRIVEN
    FLANGE BOLT SIZE (IN): 1.57
    FLANGE BOLT SIZE (MM): 39
    FLANGE BOLT THREAD SIZE: M12-1.50
    FLANGE DIAMETER (INCH): 2.36
    FLANGE OFFSET (INCH): 2.55
    FLANGE SHAPE: ROUND
    GASKET OR SEAL INCLUDED: YES
    GREASEABLE: NO
    HUB CENTERBORE DIAMETER (IN): 3.94
    HUB CENTERBORE DIAMETER (MM): 100
    HUB DIAMETER (IN): 5.12
    HUB PILOT DIAMETER (INCH): 2.75
    LUG BOLTS INCLUDED: 5
    MATERIAL: CHROME STEEL
    NEW OR REMANUFACTURED: NEW
    NUMBER OF ABS SENSOR RING TEETH: 48
    NUMBER OF BOLT HOLES: 5
    NUMBER OF BOLTS TO KNUCKLE: 4
    NUMBER OF LUG BOLTS INCLUDED: 5
    NUMBER OF LUGS: 5
    NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
    ROLL-FORMED: YES
    TOTAL HUB DIAMETER (IN): 5.12
    TOTAL HUB DIAMETER (MM): 130
    TOTAL HUB HEIGHT (IN): 4.73
    TOTAL HUB HEIGHT (MM): 120
    WIRING HARNESS INCLUDED: NO

    REPLACES:
    ACDELCO: RW20-166
    AUTOPART INTERNATIONAL: 1411-605238
    BCA: WE61834
    CENTRIC PARTS: 40662000
    MOOG HUB ASSEMBLIES: 512586

    APPLICATIONS:
    CHEVROLET SPARK EV (2016-2016)
