THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

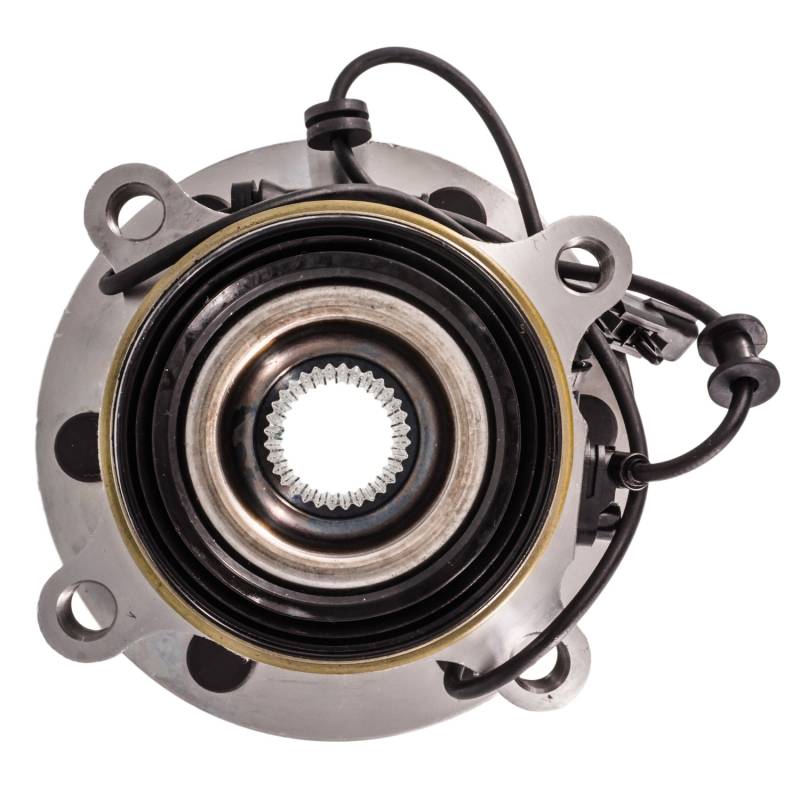

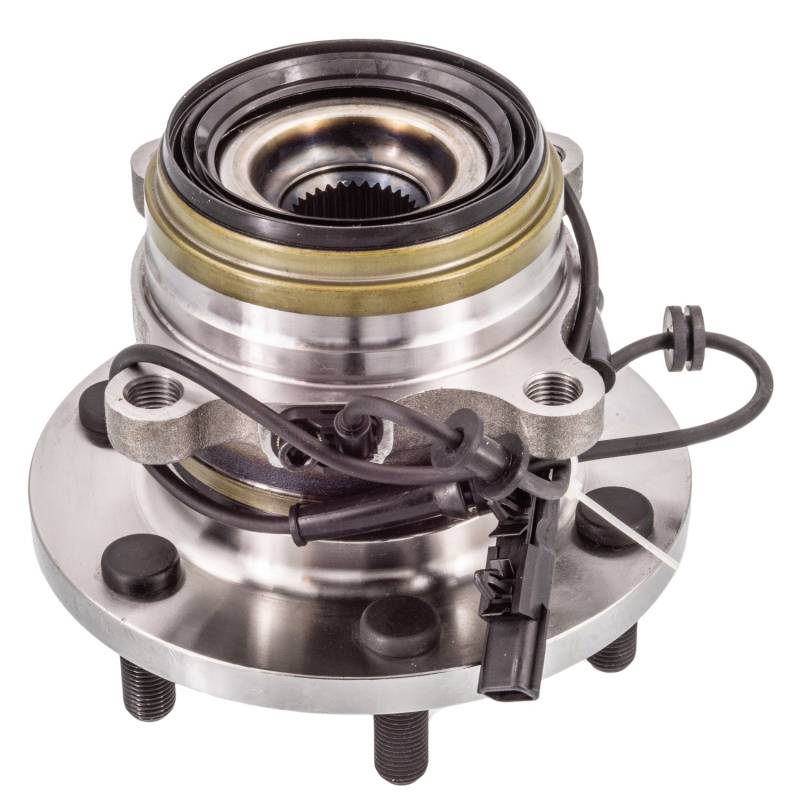

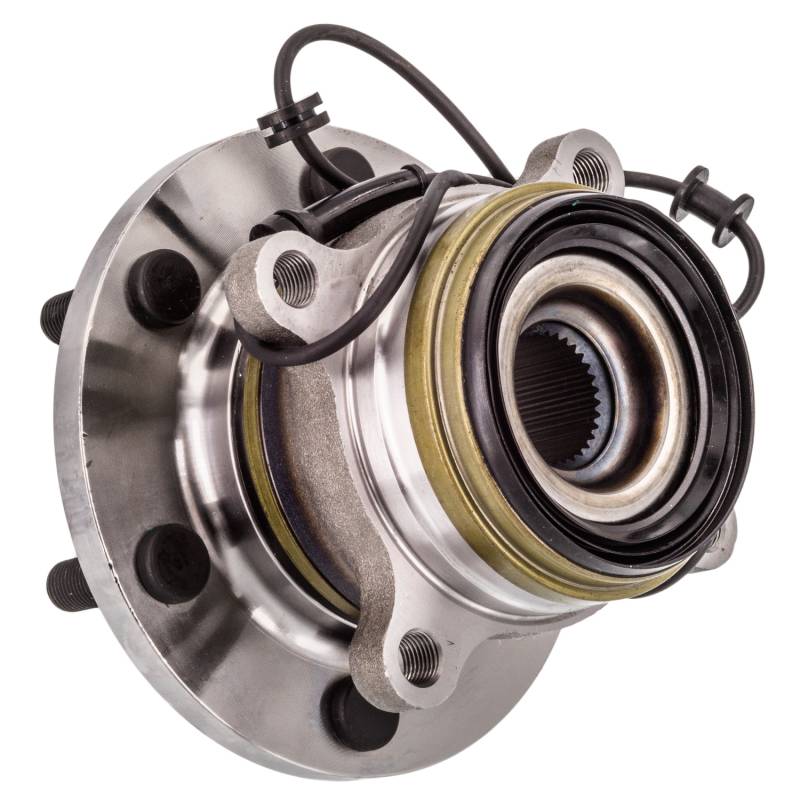

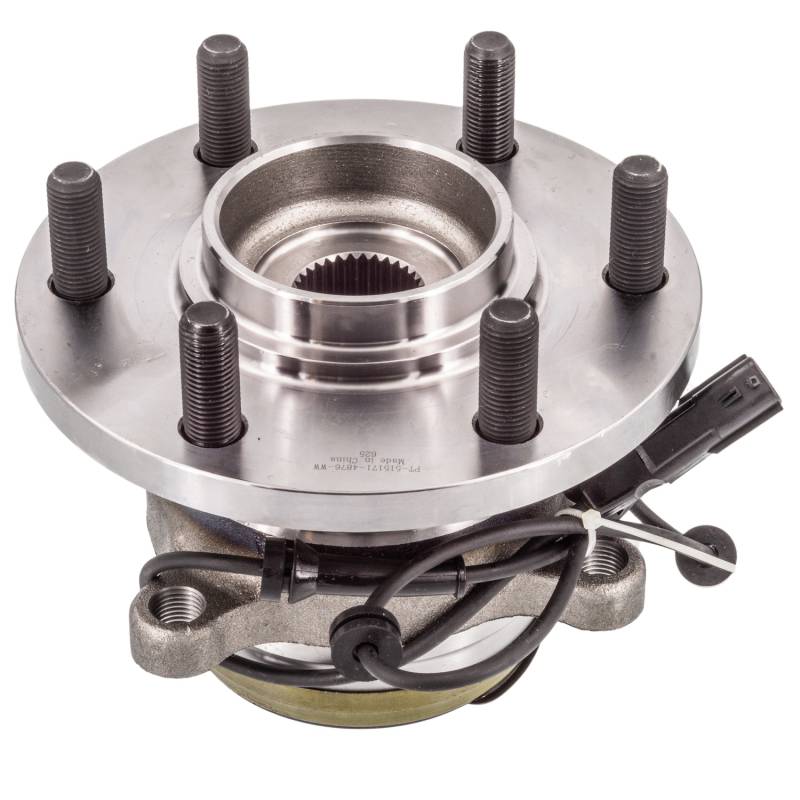

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.3
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 2.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 6.81
HUB PILOT DIAMETER (INCH): 4.13
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 6
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 6
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.81
TOTAL HUB DIAMETER (MM): 173
TOTAL HUB HEIGHT (IN): 5.79
TOTAL HUB HEIGHT (MM): 147
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 35.438
REPLACES:
AUTOPART INTERNATIONAL: 1411-611943
MOOG HUB ASSEMBLIES: 515171
ZZZN: 40202-EZ31A D0202EZ31JNW
APPLICATIONS:
NISSAN TITAN XD (2016-2023)
