New Hub Assembly Compatible With Ford Focus 1.0L 2.0L 2012 2013 2014 2015 2016 2017 2018 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

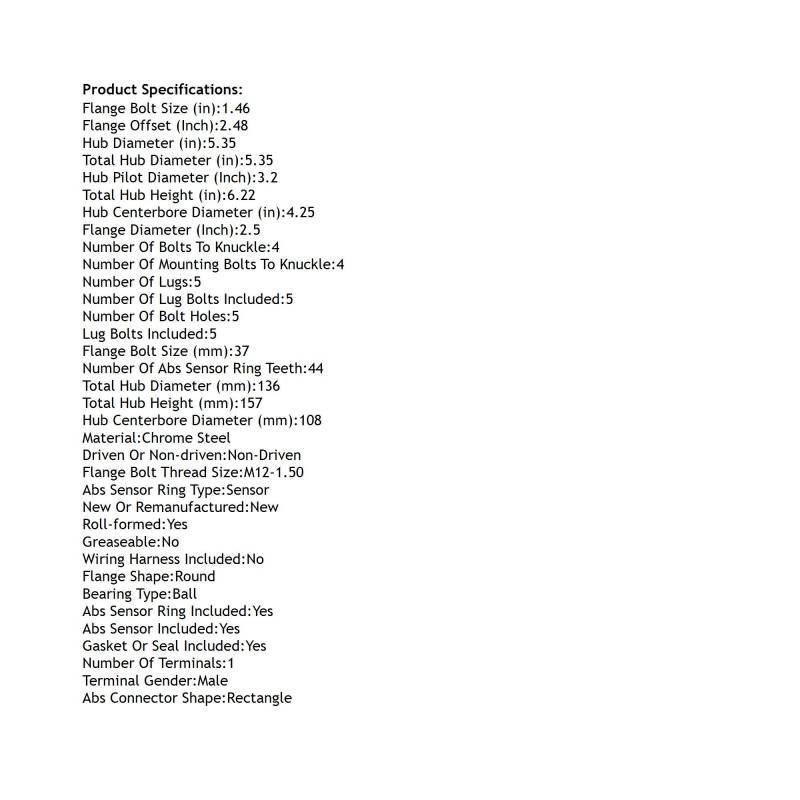

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.46
FLANGE BOLT SIZE (MM): 37
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.2
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 44
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 6.22
TOTAL HUB HEIGHT (MM): 157
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-556400
CENTRIC PARTS: 40761008
FAG US: 103154
FORD: BV6Z 1109 C
GSP: 113465
MEVOTECH: MB40312
MOOG HUB ASSEMBLIES: 512465
MOTORCRAFT: HUB251 PT512465
NAPA: PBR930933

APPLICATIONS:
FORD FOCUS (2012-2018)
