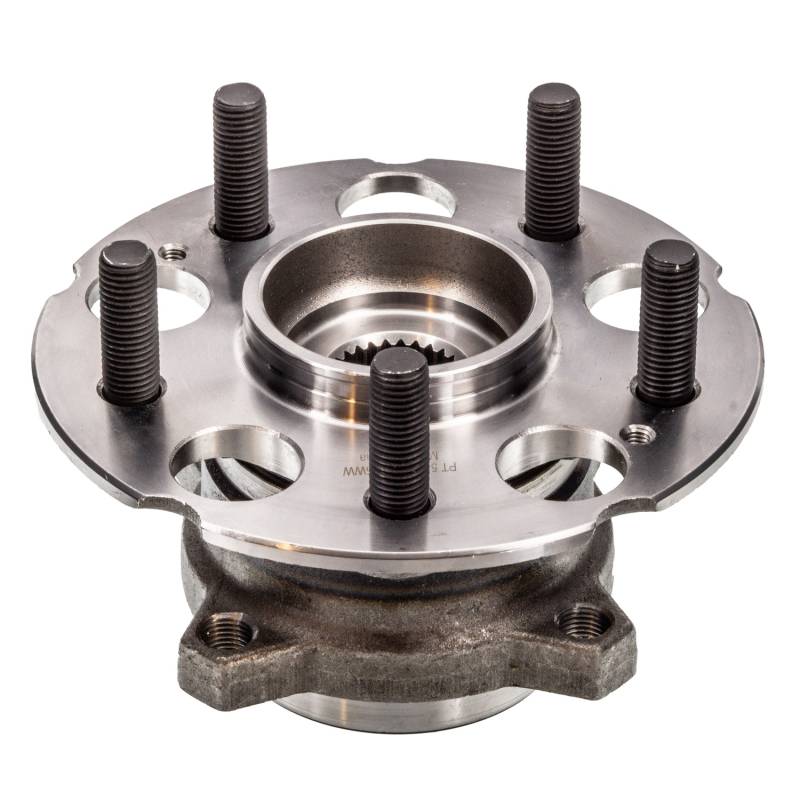

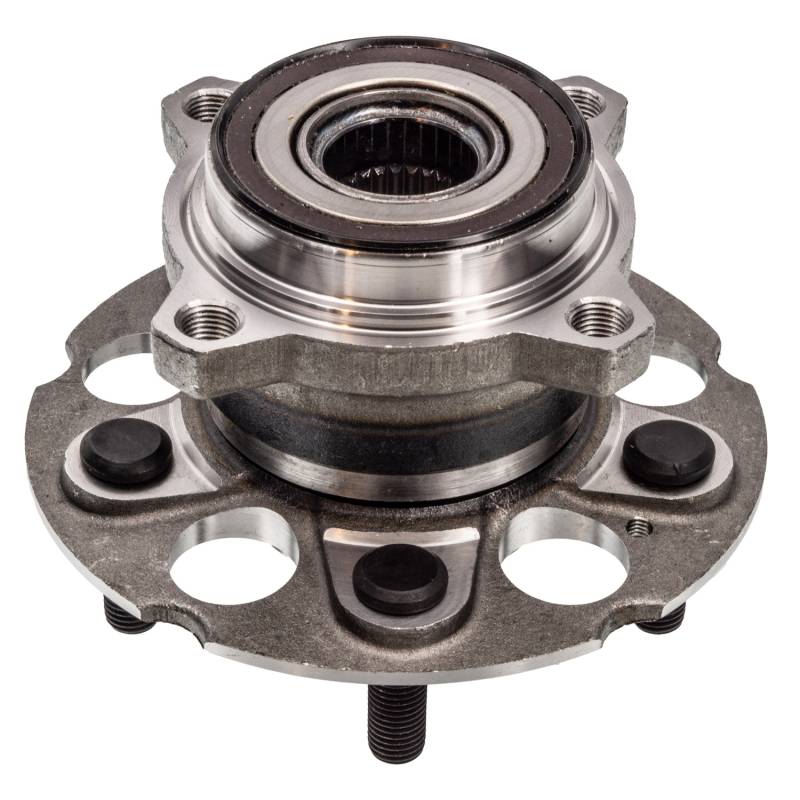

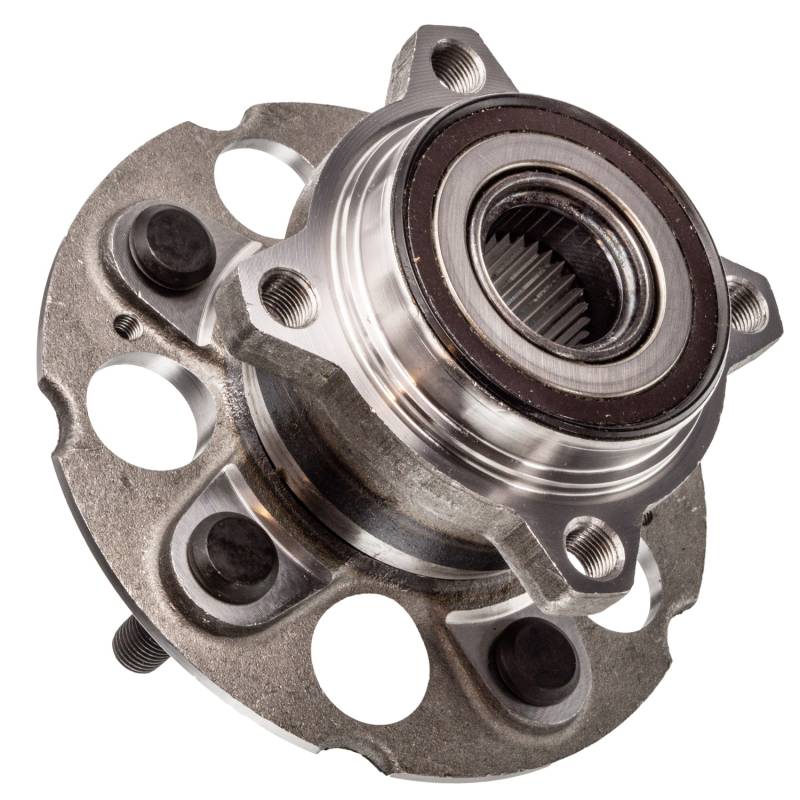

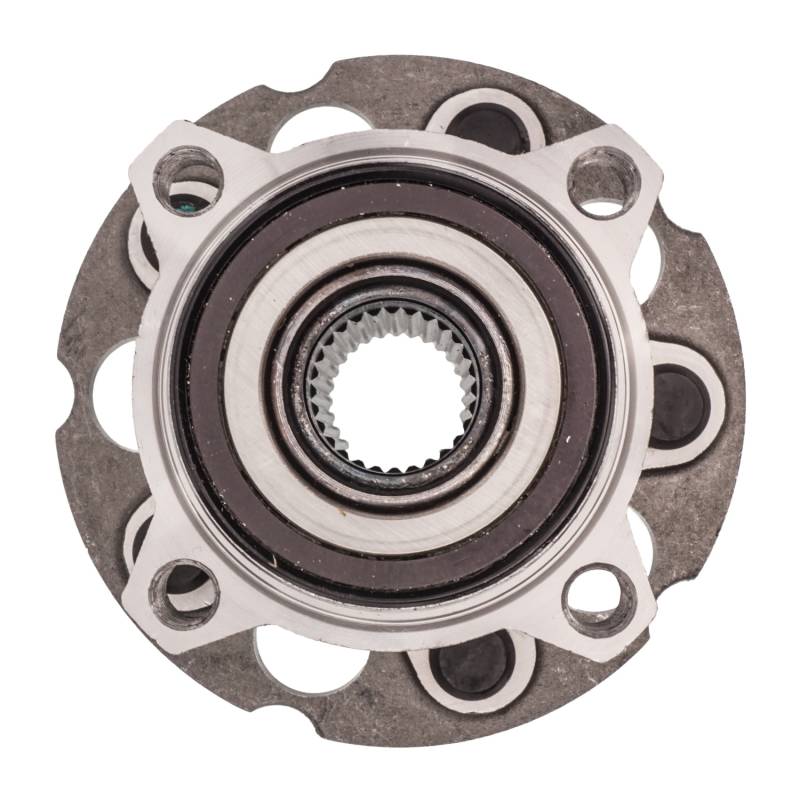

New Hub Assembly Compatible With Acura Tlx 2.4L 3.5L 2015 2016 2017 2018 2019 2020 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

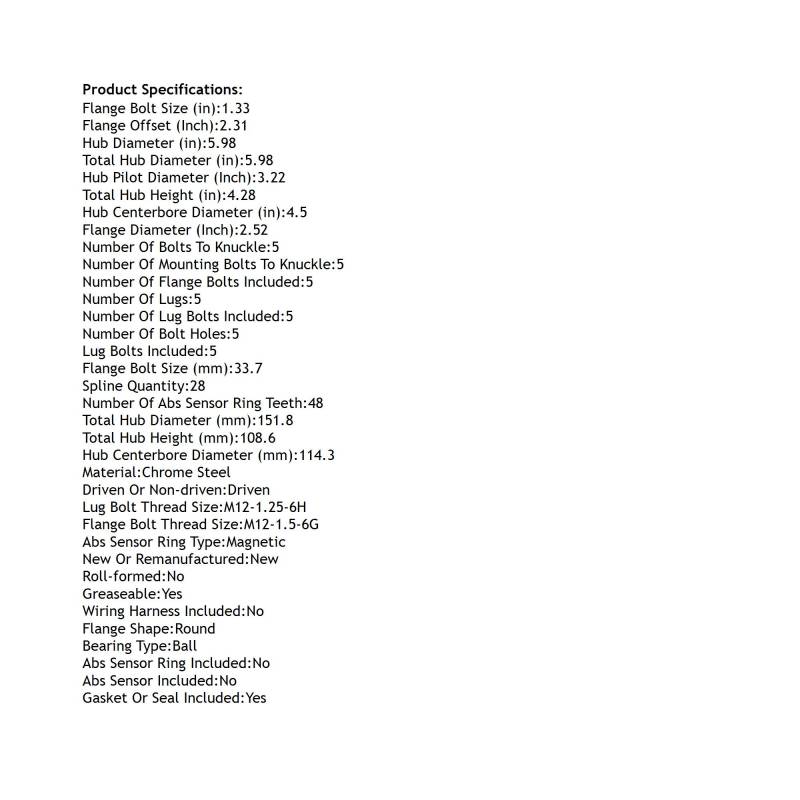

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.33
FLANGE BOLT SIZE (MM): 33.7
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.52
FLANGE OFFSET (INCH): 2.31
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.98
HUB PILOT DIAMETER (INCH): 3.22
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.98
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 4.28
TOTAL HUB HEIGHT (MM): 108.6
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-605202
BCA: WE61886
MOOG HUB ASSEMBLIES: 512562

APPLICATIONS:
ACURA TLX (2015-2020)
