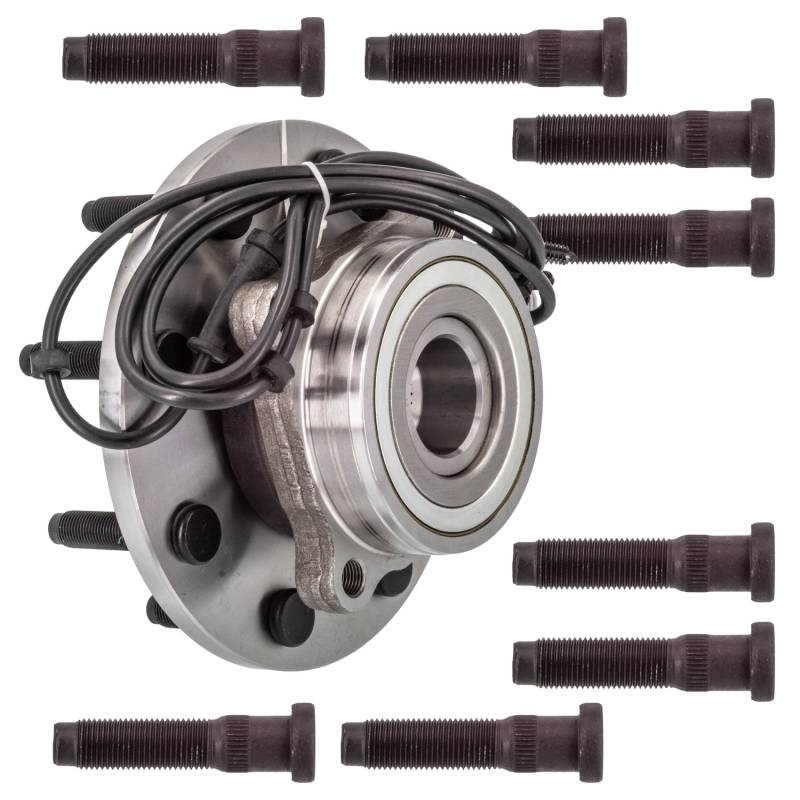

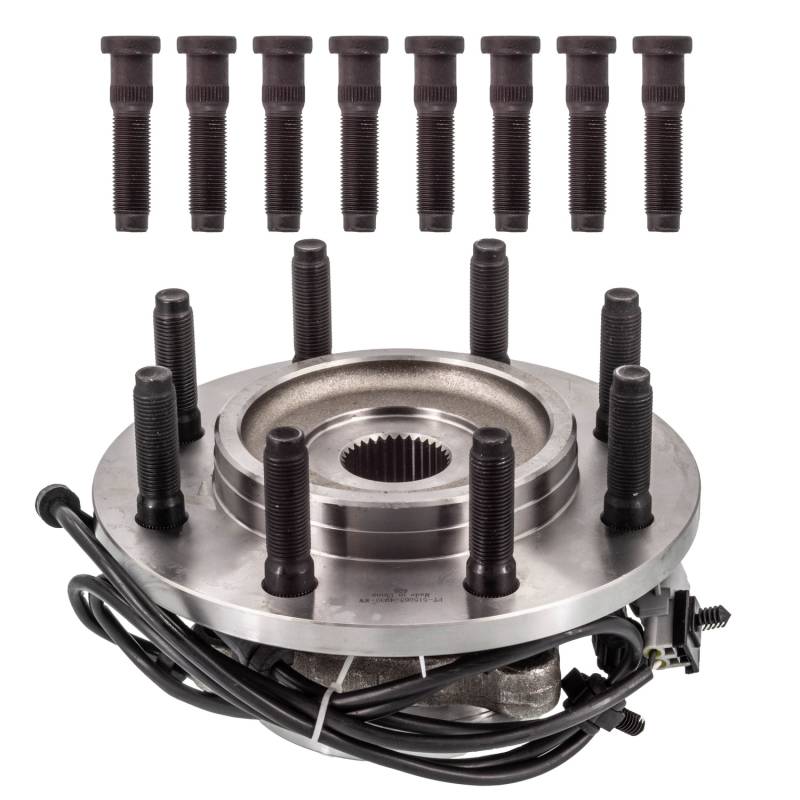

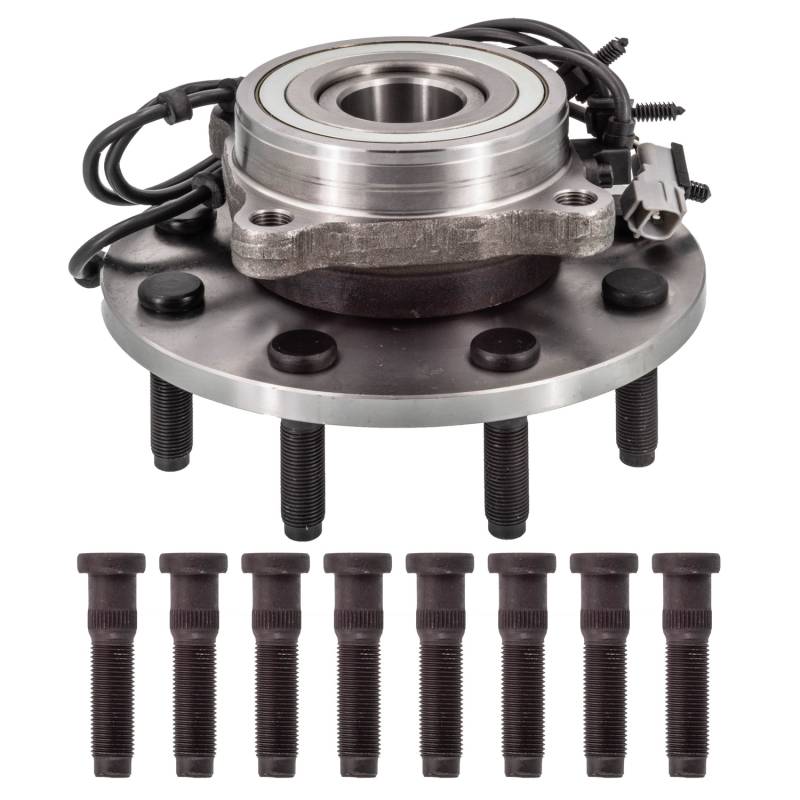

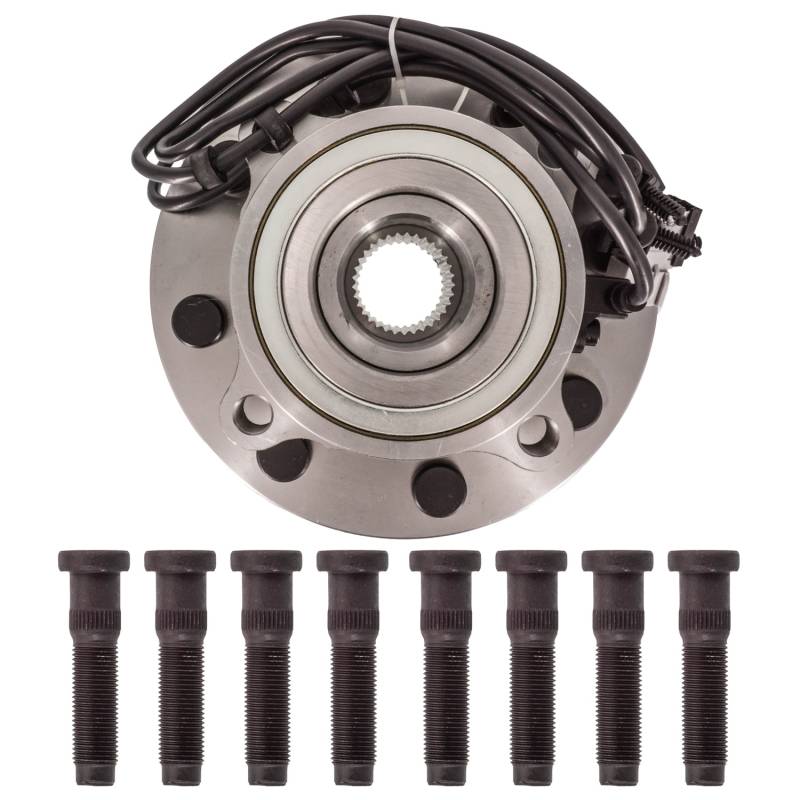

New Hub Assembly Compatible With Dodge Ram 2500 Van Ram 2500 Ram 3500 Van Ram 3500 2000 2001 2002 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.067
FLANGE BOLT SIZE (MM): 52.5
FLANGE BOLT THREAD SIZE: 43359
FLANGE DIAMETER (INCH): 4.811
FLANGE OFFSET (INCH): 2.142
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 8.071
HUB PILOT DIAMETER (INCH): 4.48
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8.071
TOTAL HUB DIAMETER (MM): 205
TOTAL HUB HEIGHT (IN): 5.201
TOTAL HUB HEIGHT (MM): 132.1
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 63.976

REPLACES:
AUTOPART INTERNATIONAL: 1411-200795
BCA: WE60989
CENTRIC PARTS: 40267011E
FAG US: 102190
GSP: 126063
MEVOTECH: H515063
MOOG HUB ASSEMBLIES: 515063
NAPA: PBR930203

APPLICATIONS:
DODGE RAM 2500 VAN (2000-2002)
DODGE RAM 2500 (2000-2002)
DODGE RAM 3500 VAN (2000-2002)
DODGE RAM 3500 (2000-2002)
