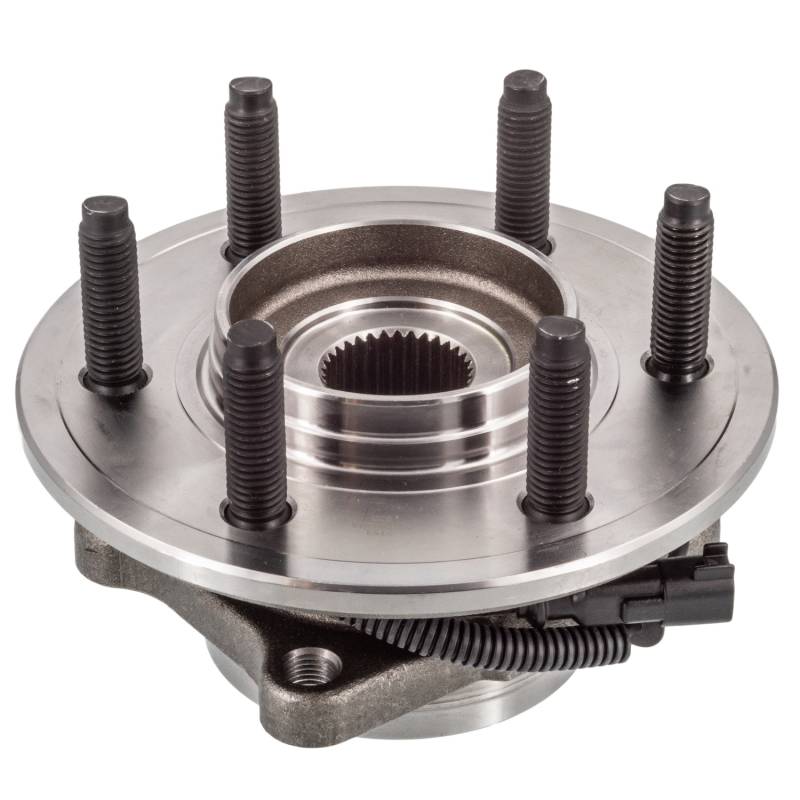

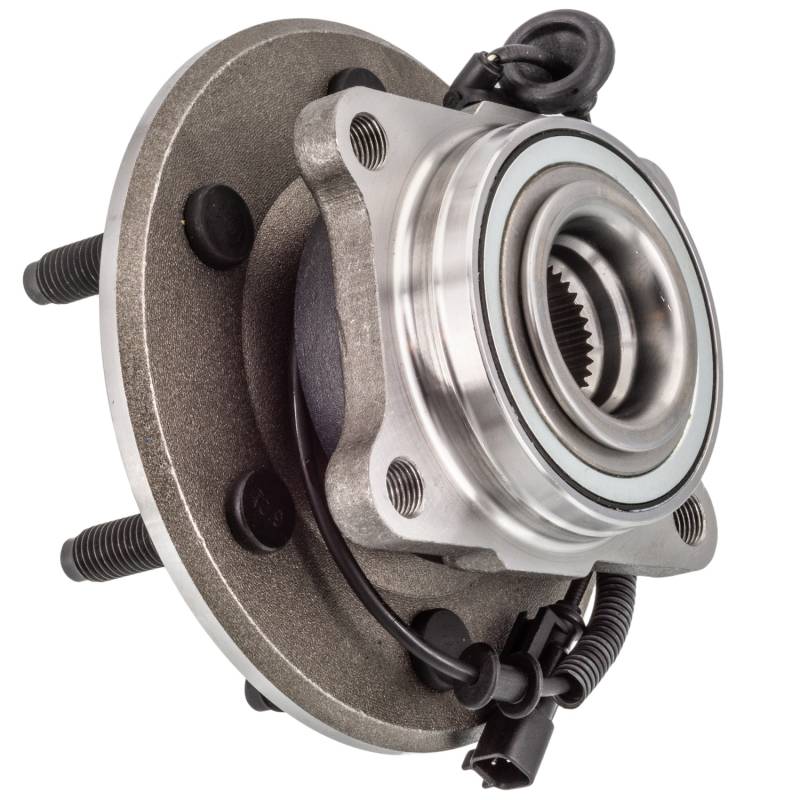

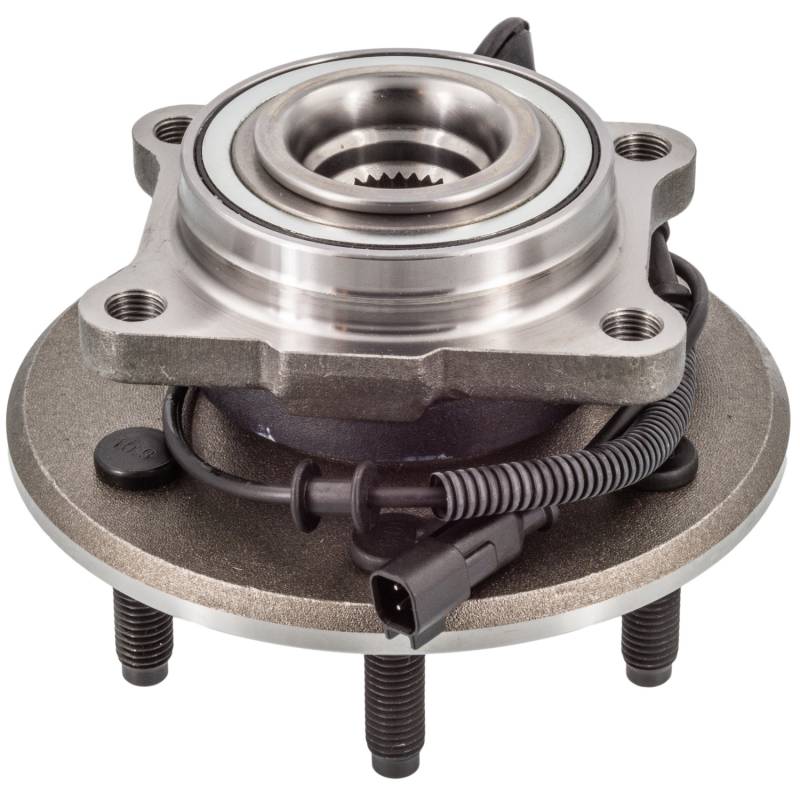

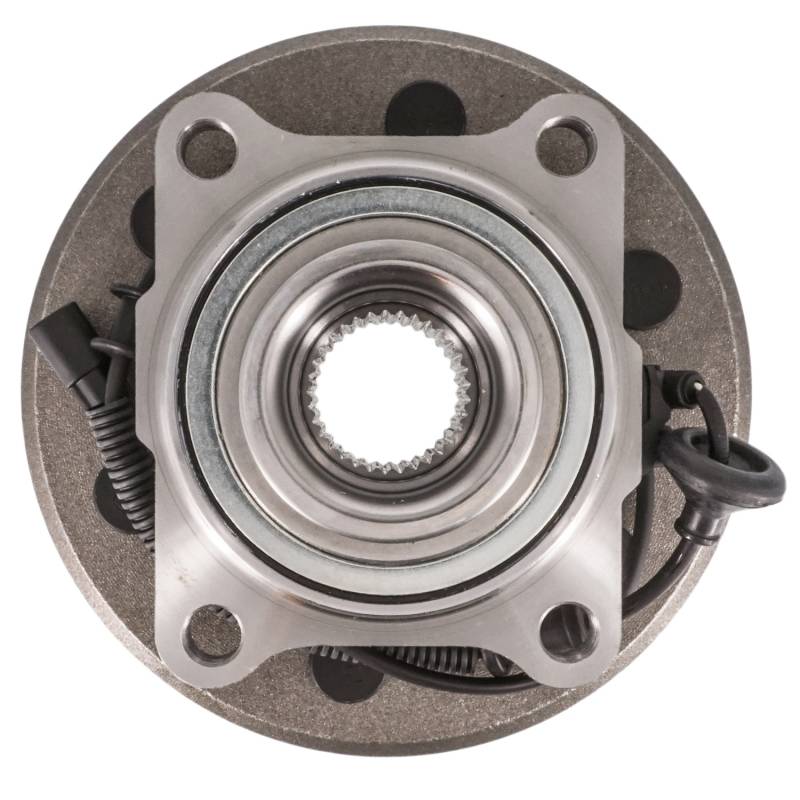

New Hub Assembly Compatible With Ford Lincoln Expedition El Expedition Max Expedition Navigator 5.4L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

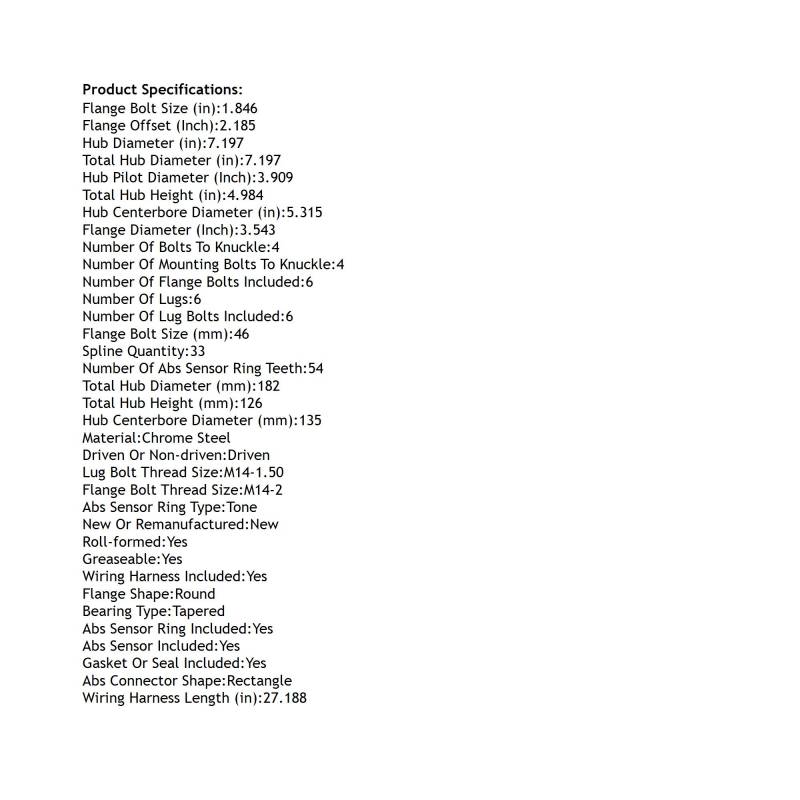

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.846
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 2.185
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.197
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 7.197
TOTAL HUB DIAMETER (MM): 182
TOTAL HUB HEIGHT (IN): 4.984
TOTAL HUB HEIGHT (MM): 126
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 27.188

REPLACES:
AUTOPART INTERNATIONAL: 1411-480988
CENTRIC PARTS: 40265041
FORD: DL1Z 1109 A
MEVOTECH: MB40301
MOOG HUB ASSEMBLIES: 541013
MOTORCRAFT: HUB403
NAPA: PBR930789

APPLICATIONS:
FORD EXPEDITION EL (2011-2014)
FORD EXPEDITION MAX (2011-2014)
FORD EXPEDITION (2011-2014)
LINCOLN NAVIGATOR (2011-2014)
