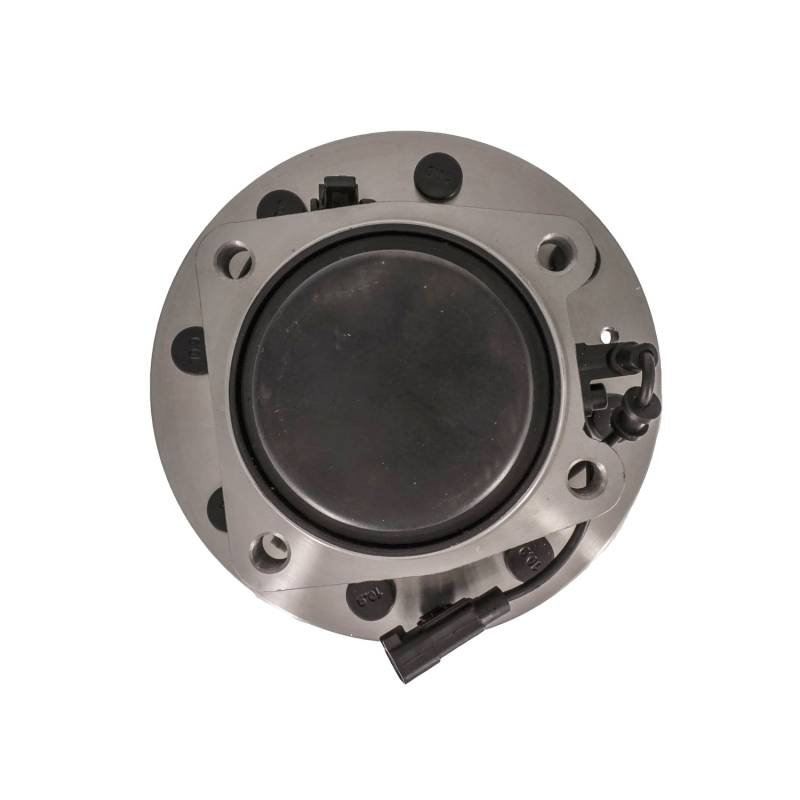

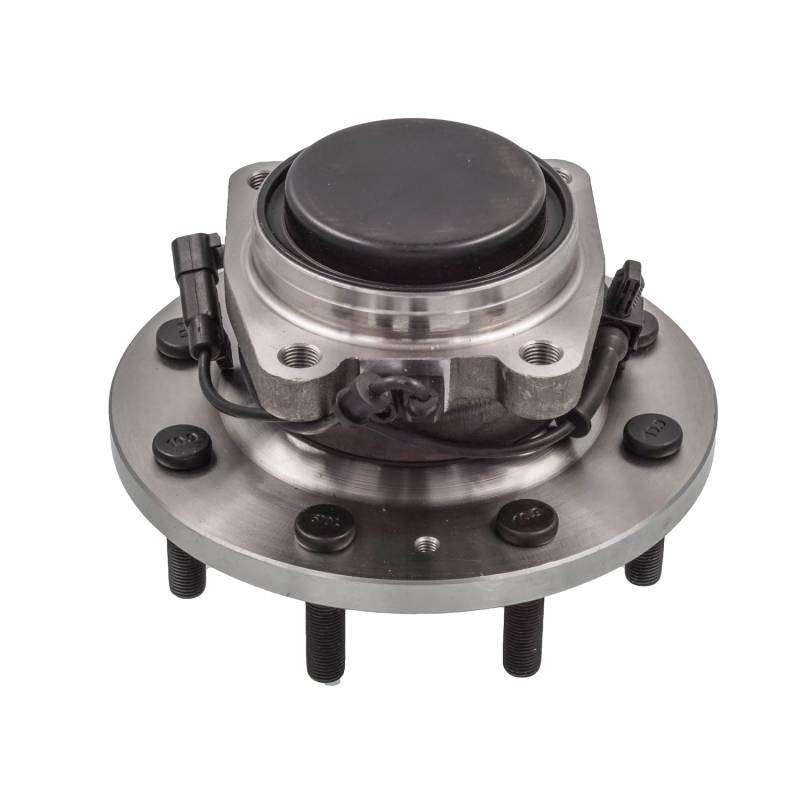

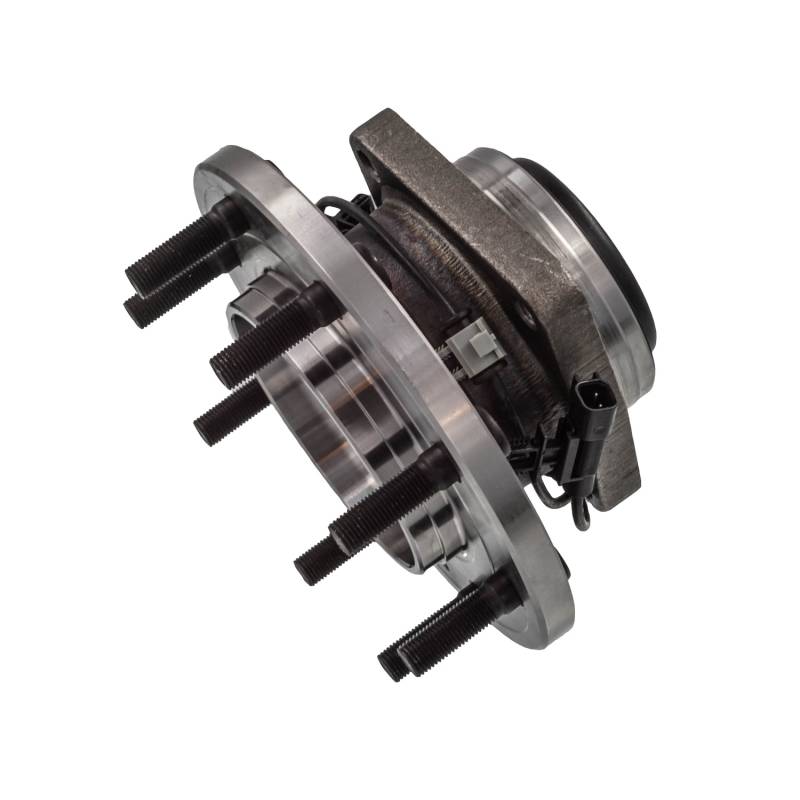

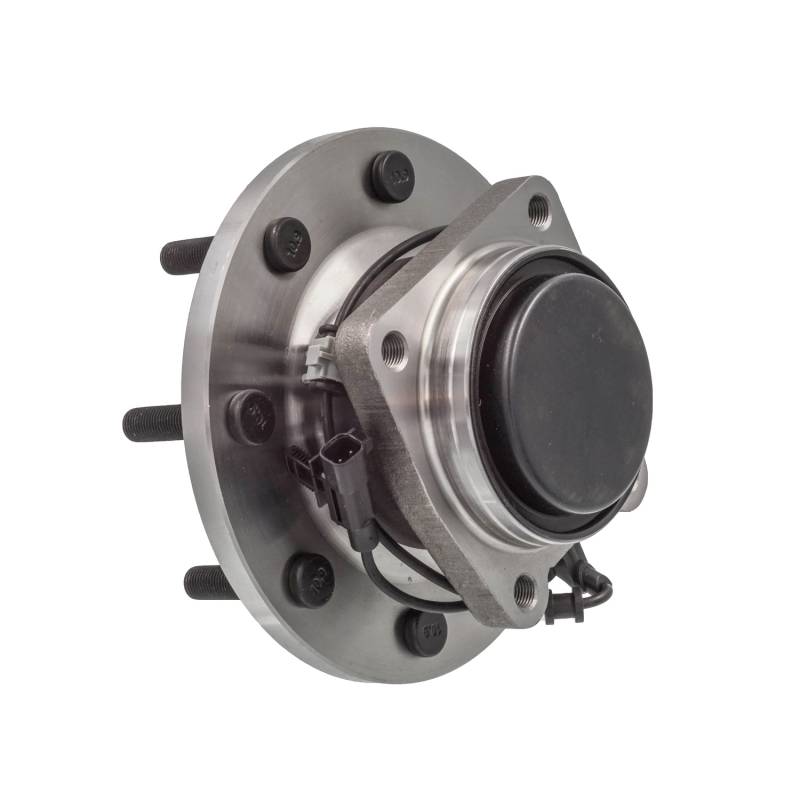

New Hub Assembly Compatible With Chevrolet Gmc Silverado 2500 Hd Silverado 3500 Hd Sierra 2500 Hd

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

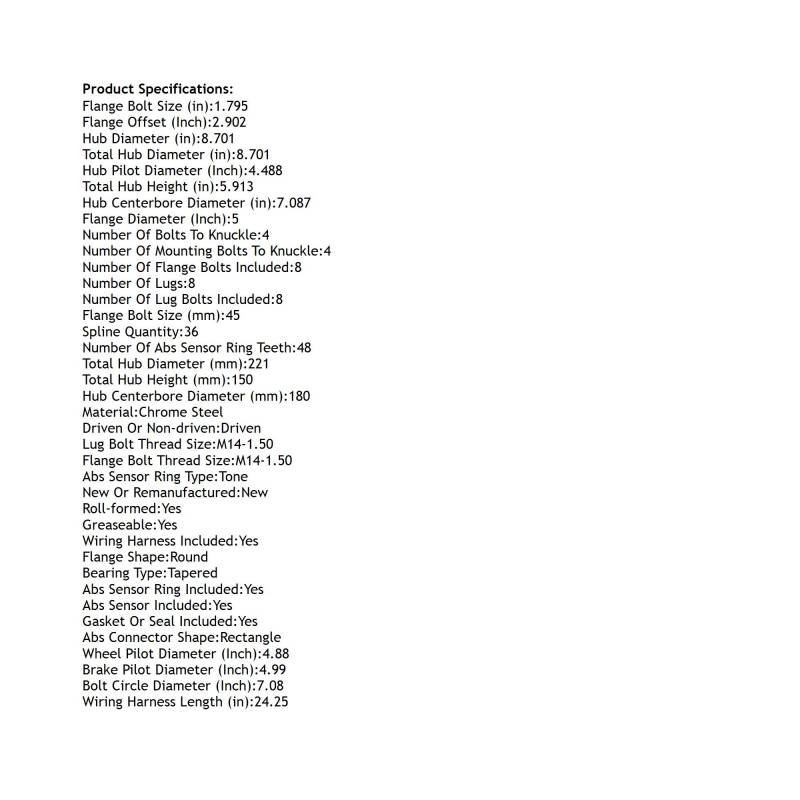

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
BOLT CIRCLE DIAMETER (INCH): 7.08
BRAKE PILOT DIAMETER (INCH): 4.99
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.795
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 5
FLANGE OFFSET (INCH): 2.902
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 7.087
HUB CENTERBORE DIAMETER (MM): 180
HUB DIAMETER (IN): 8.701
HUB PILOT DIAMETER (INCH): 4.488
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 36
TOTAL HUB DIAMETER (IN): 8.701
TOTAL HUB DIAMETER (MM): 221
TOTAL HUB HEIGHT (IN): 5.913
TOTAL HUB HEIGHT (MM): 150
WHEEL PILOT DIAMETER (INCH): 4.88
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 24.25

REPLACES:
ACDELCO: 20873259 FW425
AUTOPART INTERNATIONAL: 1411-480973
BCA: WE61847
CENTRIC PARTS: 40766017
FAG US: 102238
GSP: 106147
MEVOTECH: H515147
MOOG HUB ASSEMBLIES: 515147 515210 515209
NAPA: PBR930830

APPLICATIONS:
CHEVROLET SILVERADO 2500 HD (2011-2024)
CHEVROLET SILVERADO 3500 HD (2011-2024)
GMC SIERRA 2500 HD (2011-2024)
GMC SIERRA 3500 HD (2011-2024)
