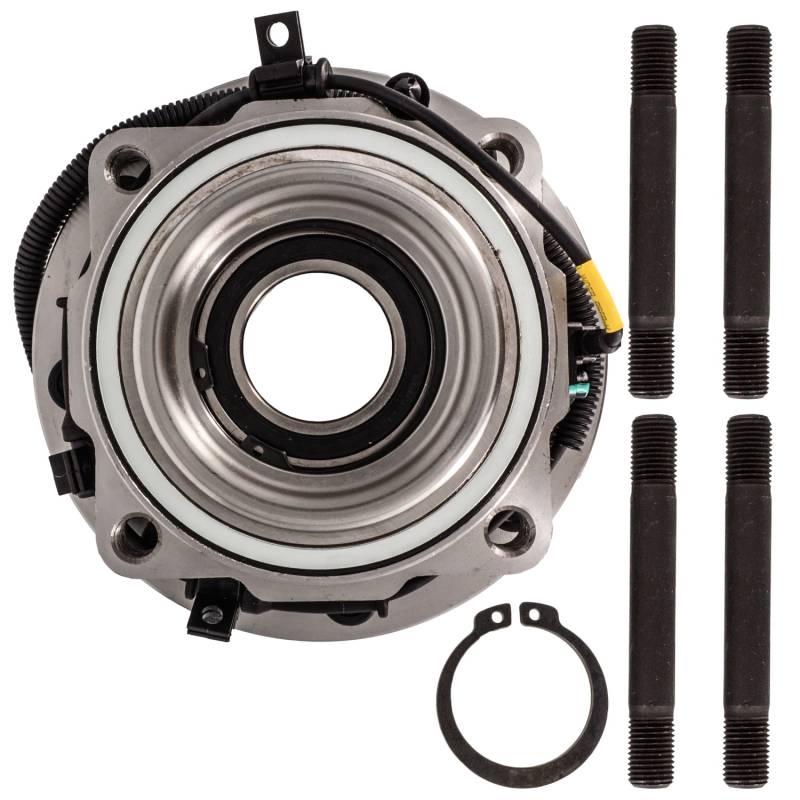

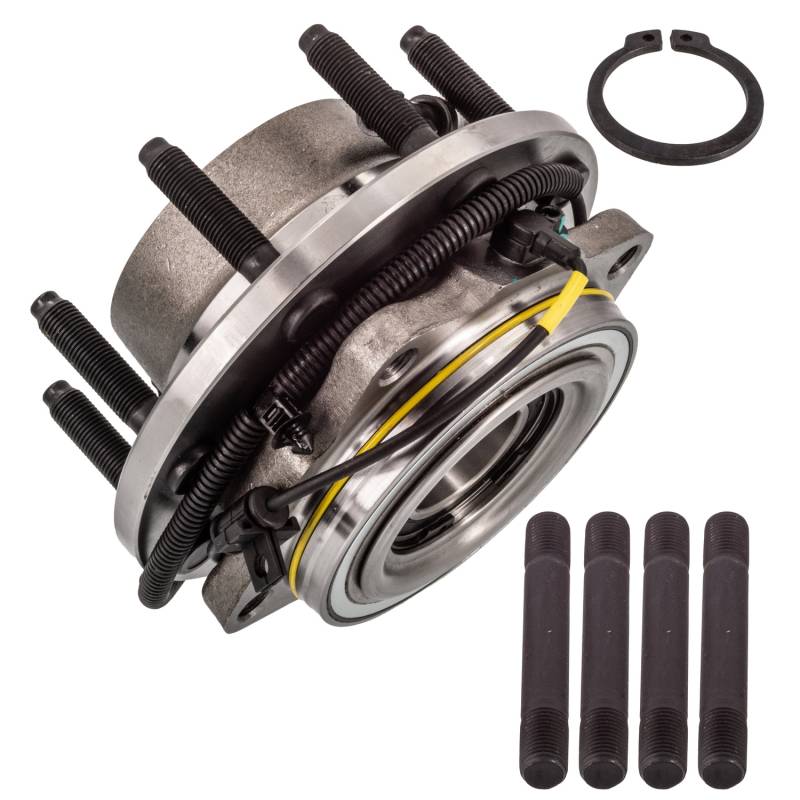

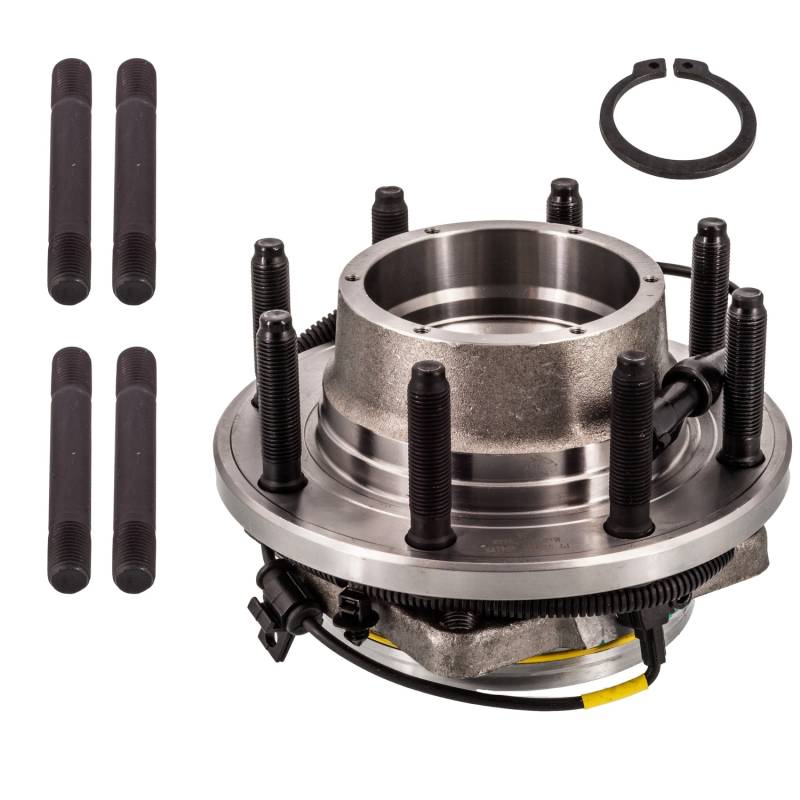

New Hub Assembly Compatible With Ford F-250 Super Duty F-350 Super Duty F-450 Super Duty F-550 Super

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

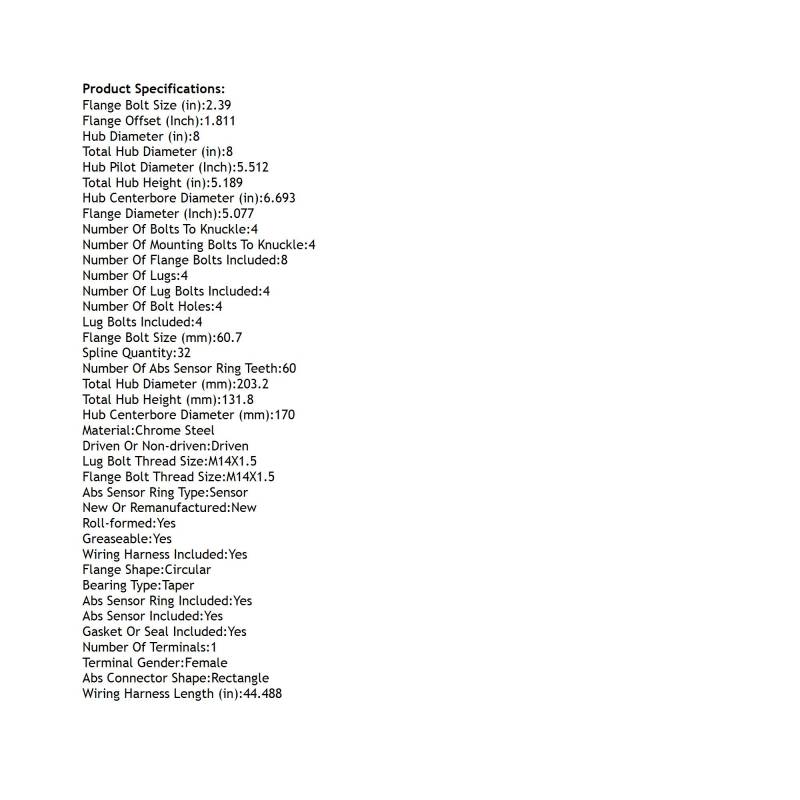

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.39
FLANGE BOLT SIZE (MM): 60.7
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 5.077
FLANGE OFFSET (INCH): 1.811
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.693
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 8
HUB PILOT DIAMETER (INCH): 5.512
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8
TOTAL HUB DIAMETER (MM): 203.2
TOTAL HUB HEIGHT (IN): 5.189
TOTAL HUB HEIGHT (MM): 131.8
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 44.488

REPLACES:
AUTOPART INTERNATIONAL: 1411-256018
BCA: WE61403
CENTRIC PARTS: 40265019
FAG US: 102017
FORD: AC3Z1104F
GSP: 126081
MEVOTECH: H515081
MOOG HUB ASSEMBLIES: 515081
MOTORCRAFT: HUB158 PT515081 AC3Z1104F
NAPA: PBR930695

APPLICATIONS:
FORD F-250 SUPER DUTY (2005-2010)
FORD F-350 SUPER DUTY (2005-2010)
FORD F-450 SUPER DUTY (2010-2010)
FORD F-550 SUPER DUTY (2010-2010)
