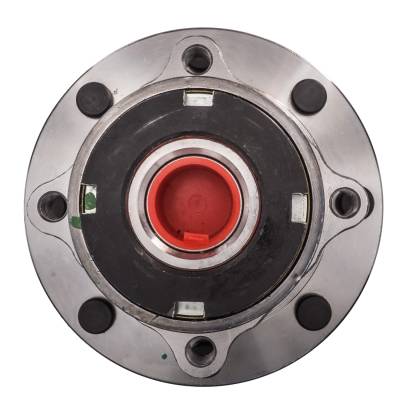

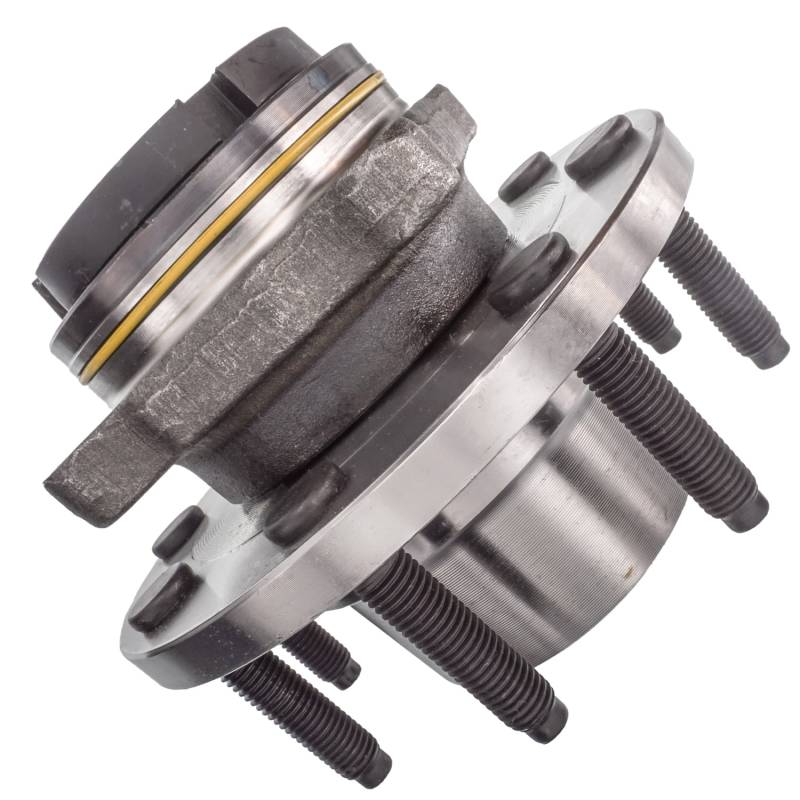

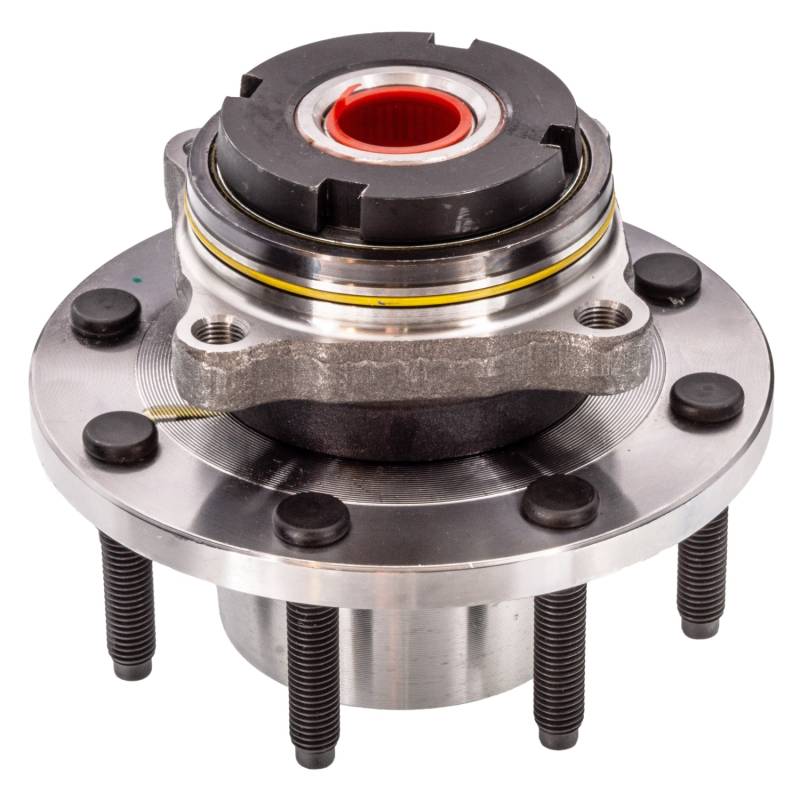

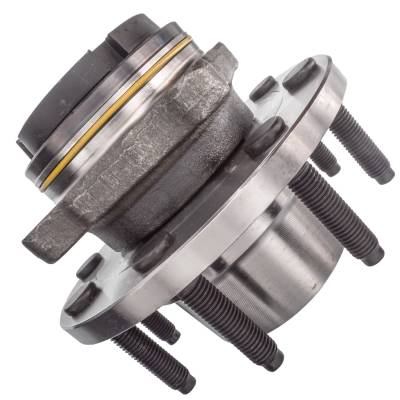

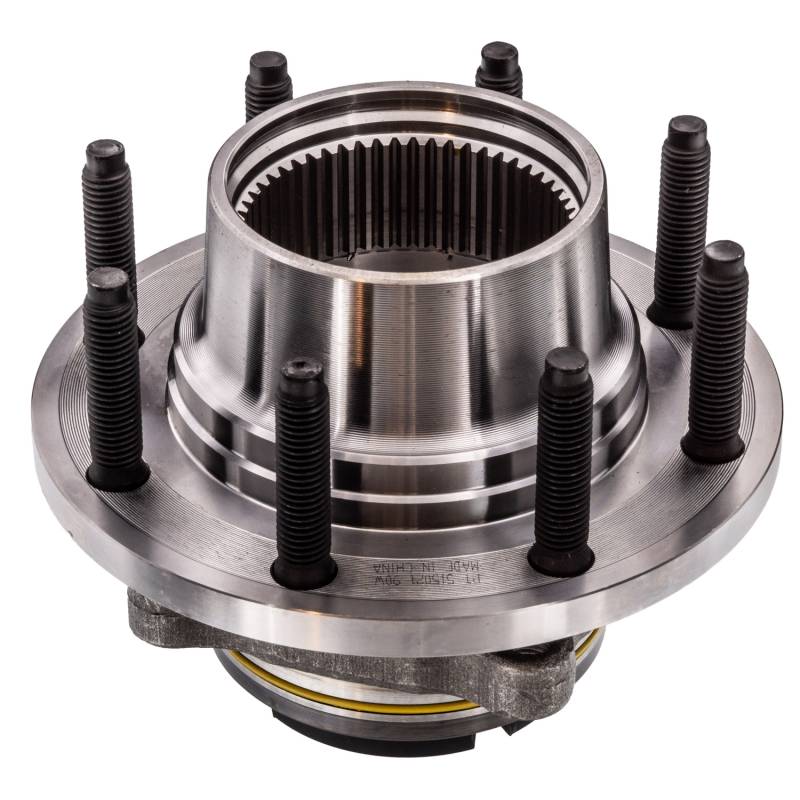

New Hub Assembly Compatible With Ford F-250 Super Duty F-350 Super Duty 5.4L 6.8L 7.3L 1999 2000

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

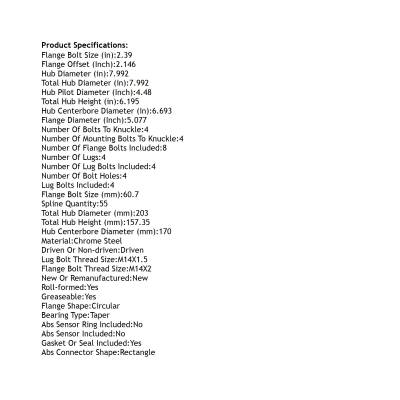

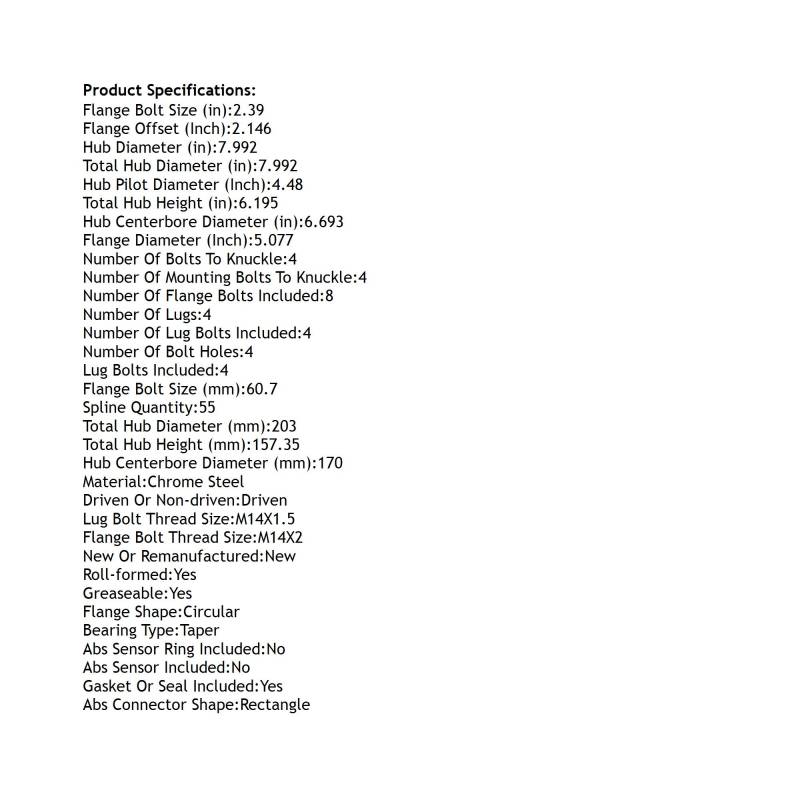

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.39
FLANGE BOLT SIZE (MM): 60.7
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 5.077
FLANGE OFFSET (INCH): 2.146
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.693
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.992
HUB PILOT DIAMETER (INCH): 4.48
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 55
TOTAL HUB DIAMETER (IN): 7.992
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 6.195
TOTAL HUB HEIGHT (MM): 157.35

REPLACES:
AUTOPART INTERNATIONAL: 1411-49145
BCA: WE61556
CENTRIC PARTS: 40065000
FAG US: 101985
FORD: YC3Z 1104 D
GSP: 116021
MEVOTECH: H515021
MOOG HUB ASSEMBLIES: 515021
MOTORCRAFT: HUB41
NAPA: PBR930424

APPLICATIONS:
FORD F-250 SUPER DUTY (1999-2001)
FORD F-350 SUPER DUTY (1999-2001)
