THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

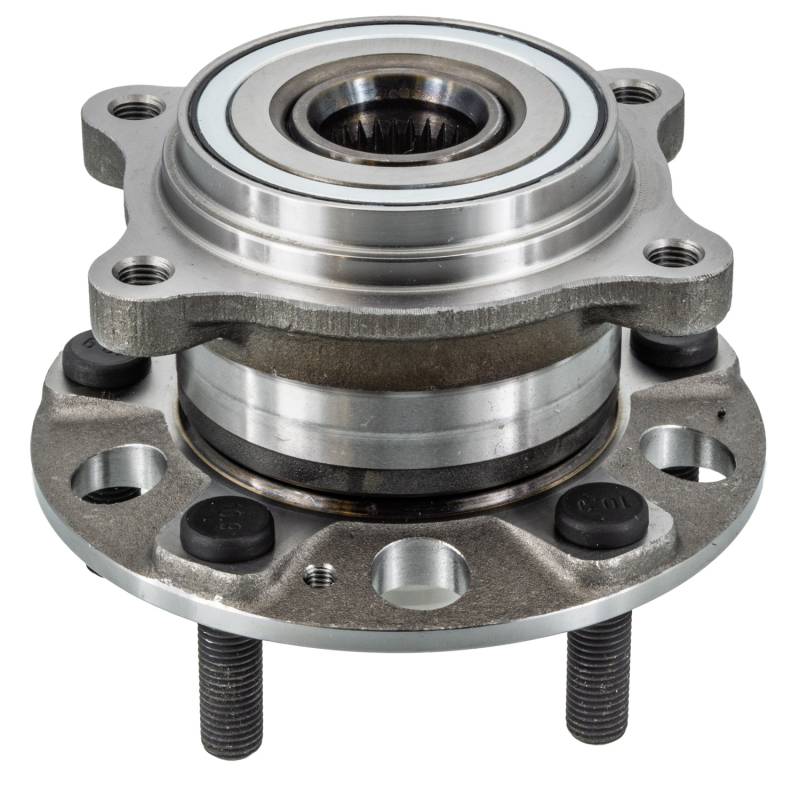

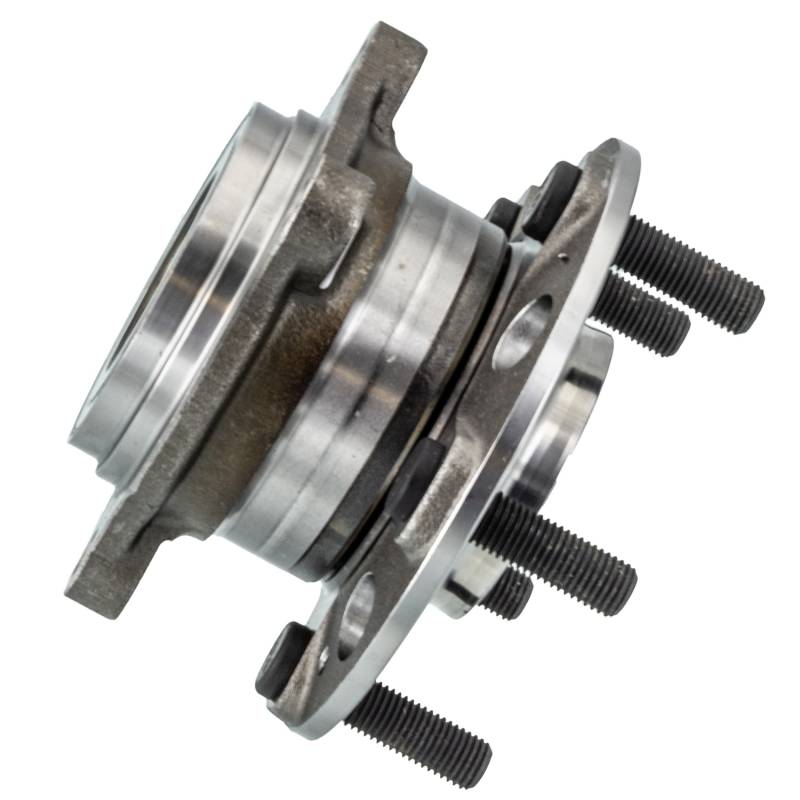

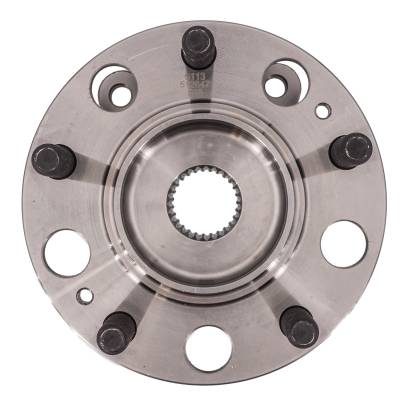

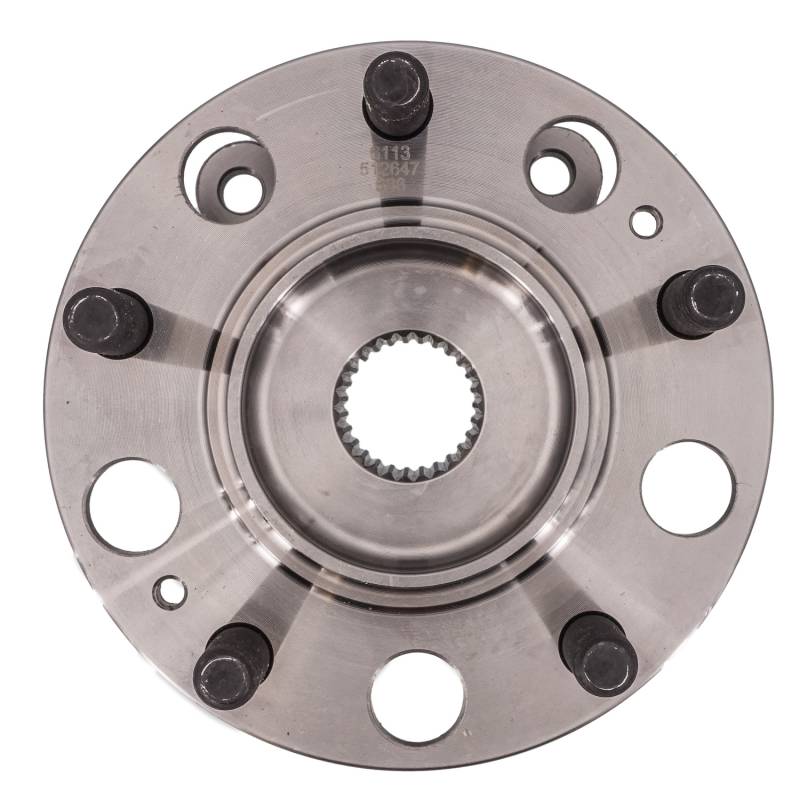

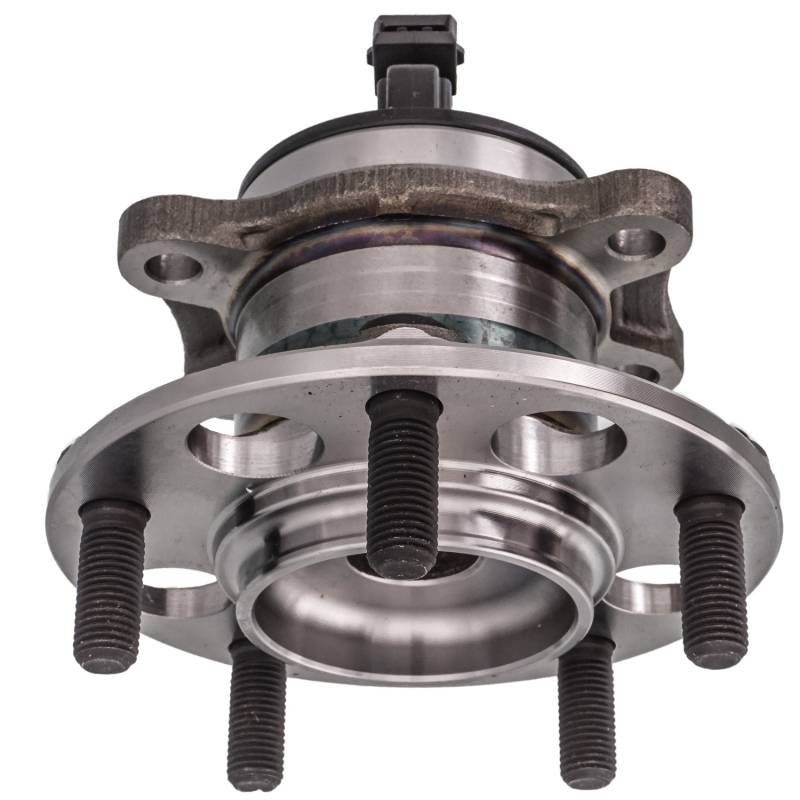

PRODUCT TYPE: HUB ASSEMBLY

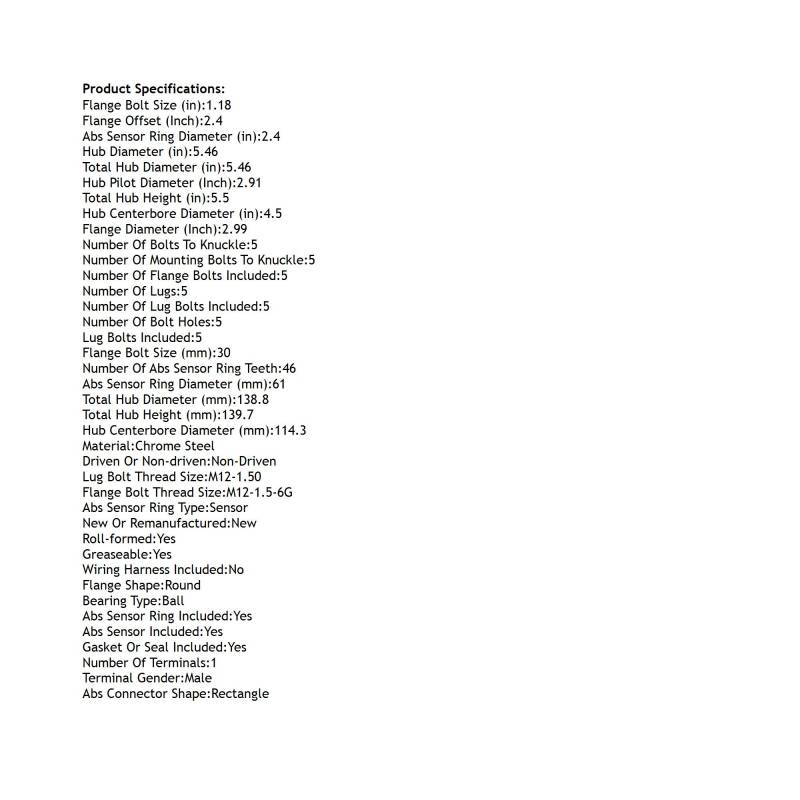

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.4
ABS SENSOR RING DIAMETER (MM): 61
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.18
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.99
FLANGE OFFSET (INCH): 2.4
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.46
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.46
TOTAL HUB DIAMETER (MM): 138.8
TOTAL HUB HEIGHT (IN): 5.5
TOTAL HUB HEIGHT (MM): 139.7
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-605407
MOOG HUB ASSEMBLIES: 512645 512658
ZZZN: 52730-G3AA0
APPLICATIONS:
HYUNDAI ELANTRA GT (2017-2020)
HYUNDAI ELANTRA (2017-2020)
HYUNDAI IONIQ (2017-2022)
HYUNDAI KONA (2018-2024)
HYUNDAI KONA ELECTRIC (2019-2024)
KIA FORTE (2019-2022)
HYUNDAI IONIQ 5 (2022-2022)
HYUNDAI KONA N (2022-2024)
