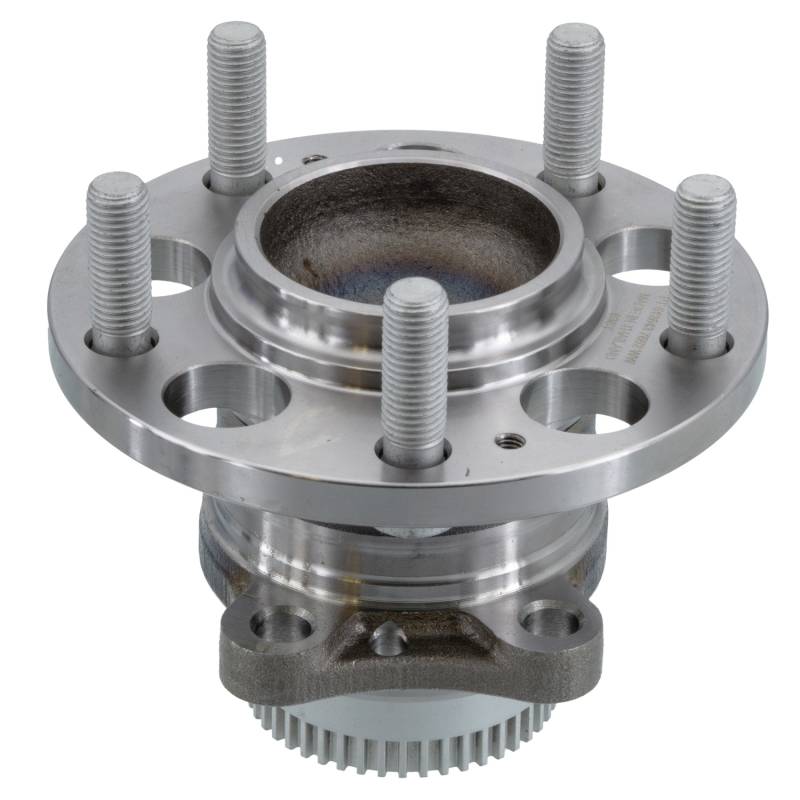

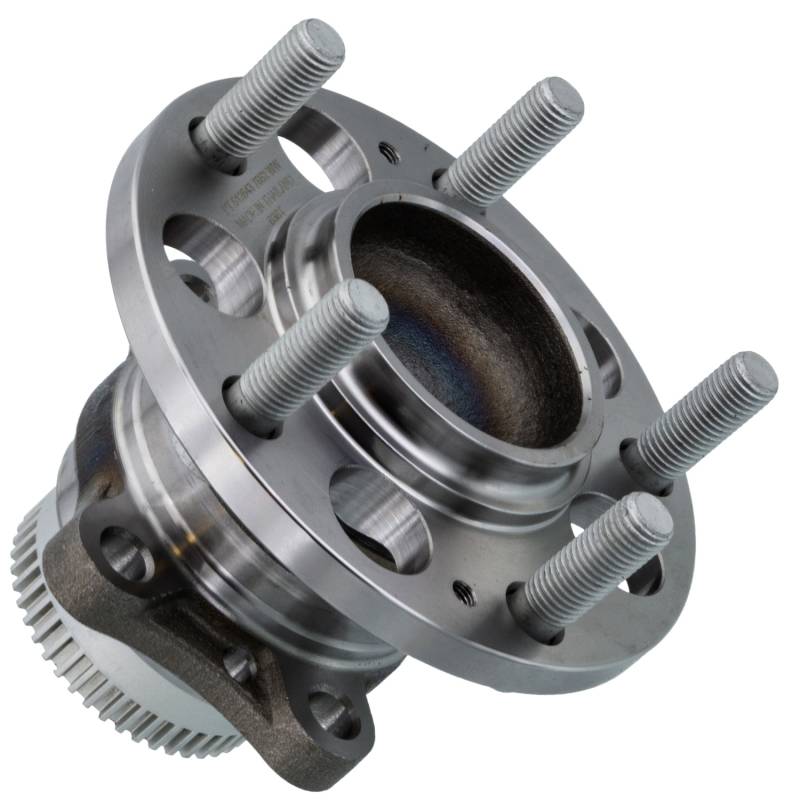

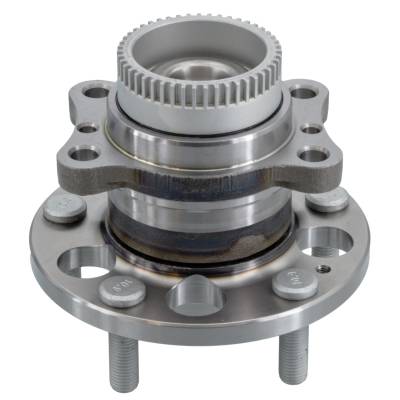

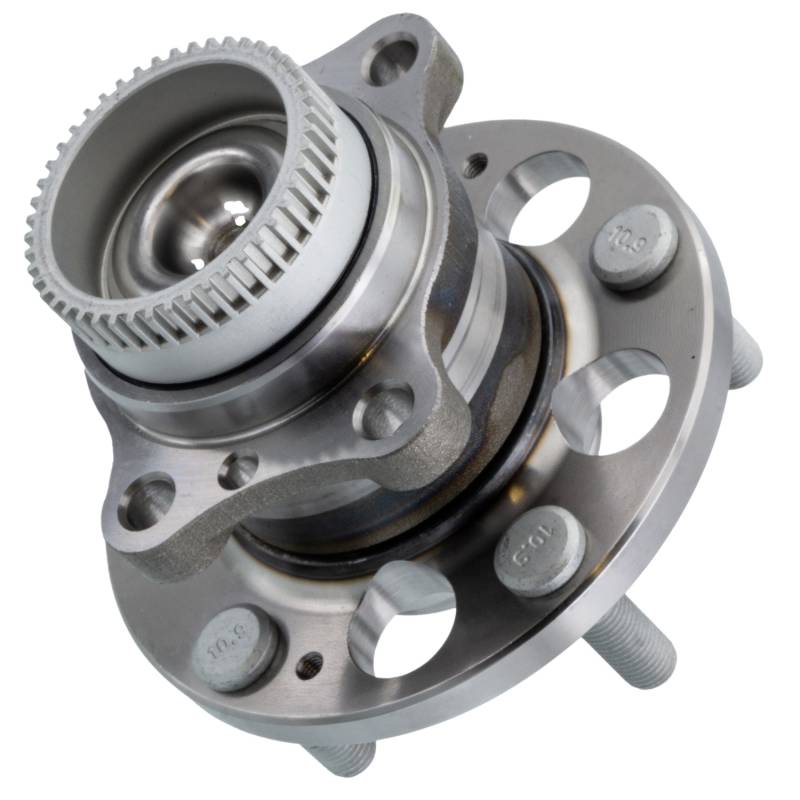

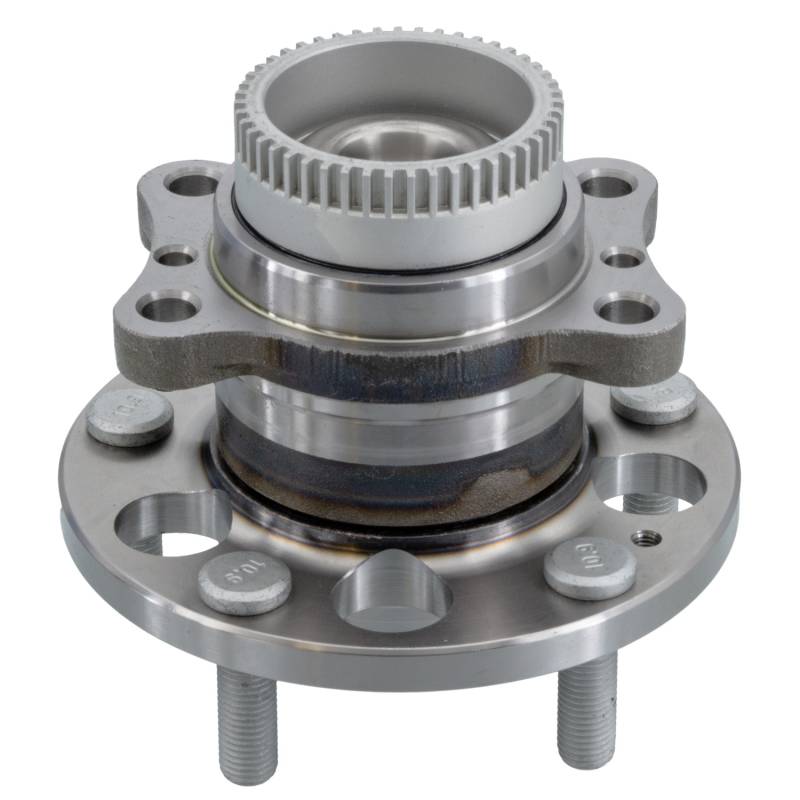

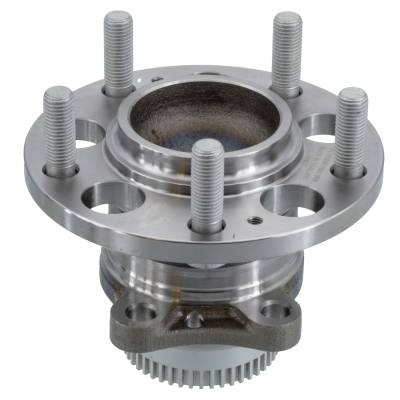

New Hub Assembly Compatible With Hyundai Tucson 1.6L 2.0L 2.4L 2015 2016 2017 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

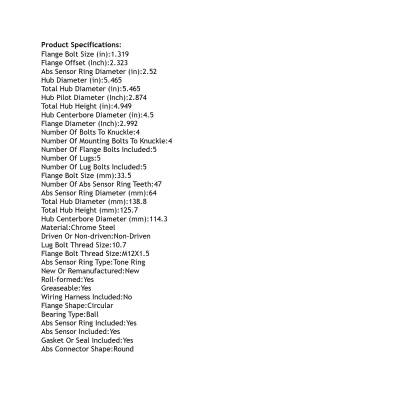

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.52
ABS SENSOR RING DIAMETER (MM): 64
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.319
FLANGE BOLT SIZE (MM): 33.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.992
FLANGE OFFSET (INCH): 2.323
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.465
HUB PILOT DIAMETER (INCH): 2.874
LUG BOLT THREAD SIZE: 10.7
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.465
TOTAL HUB DIAMETER (MM): 138.8
TOTAL HUB HEIGHT (IN): 4.949
TOTAL HUB HEIGHT (MM): 125.7
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-605403
MOOG HUB ASSEMBLIES: 512643

APPLICATIONS:
HYUNDAI TUCSON (2015-2017)
