THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

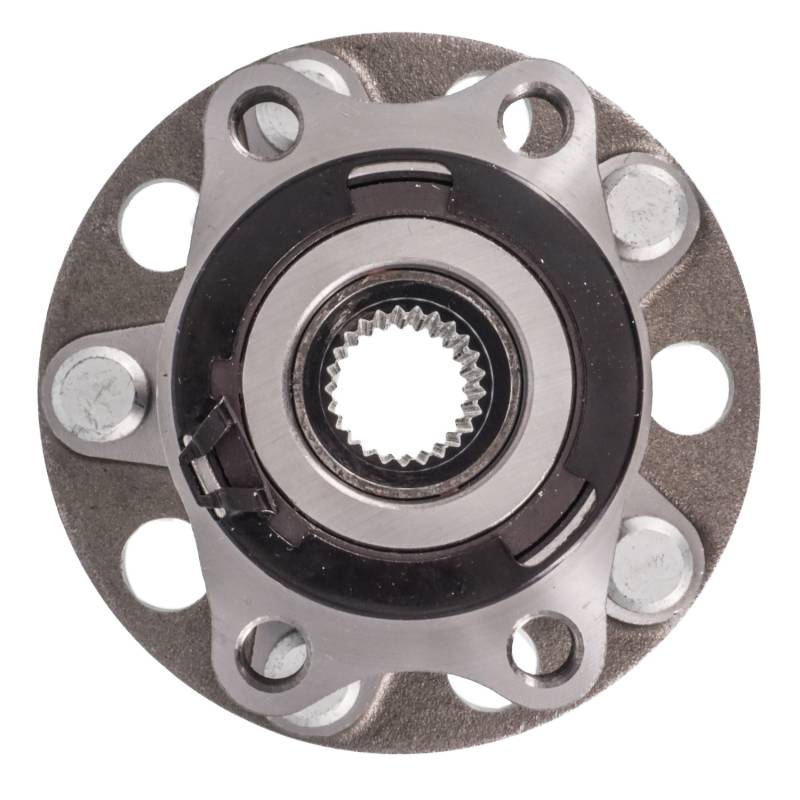

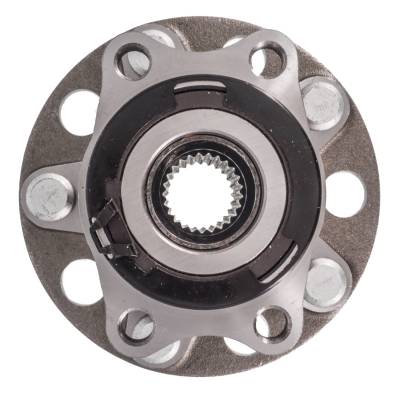

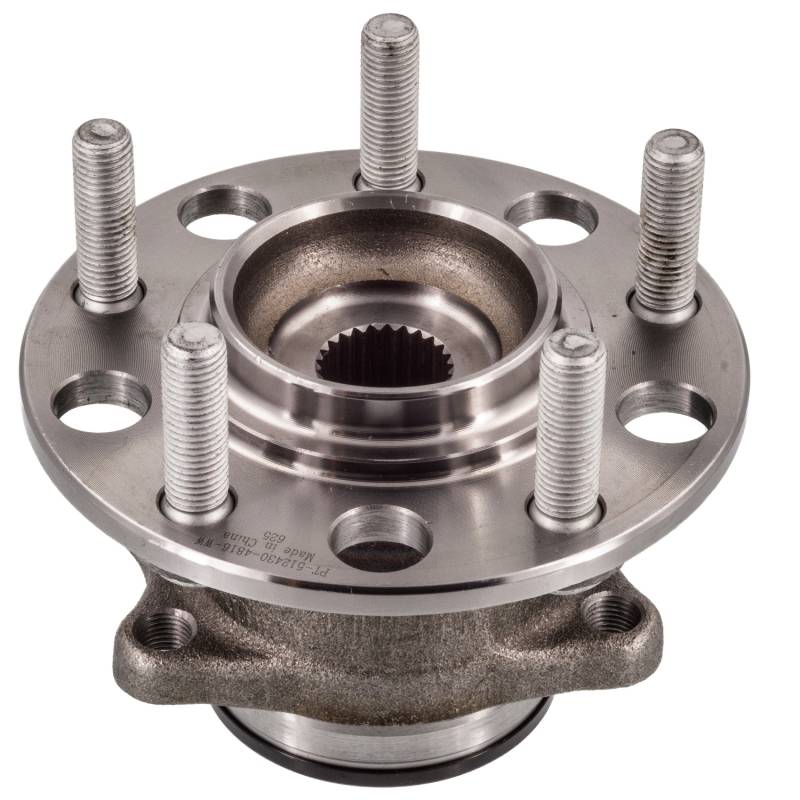

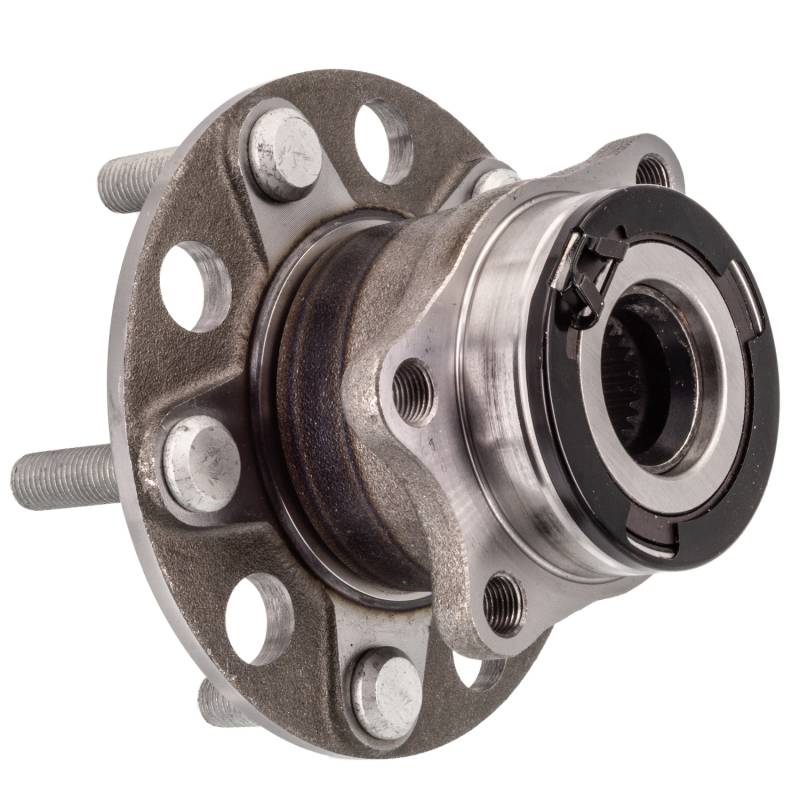

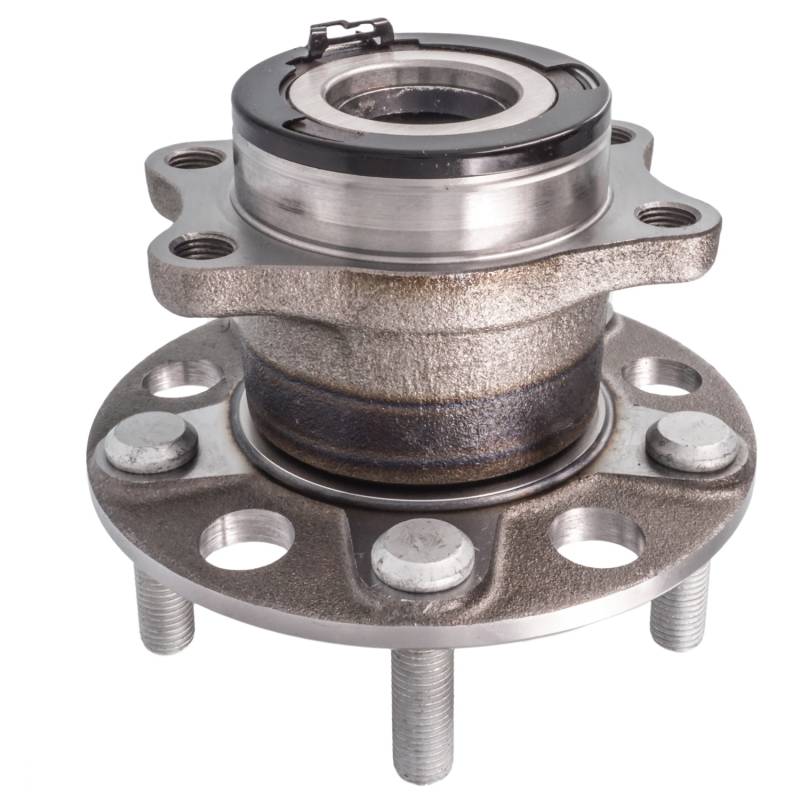

PRODUCT TYPE: HUB ASSEMBLY

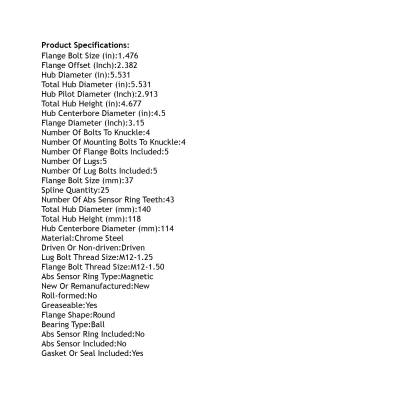

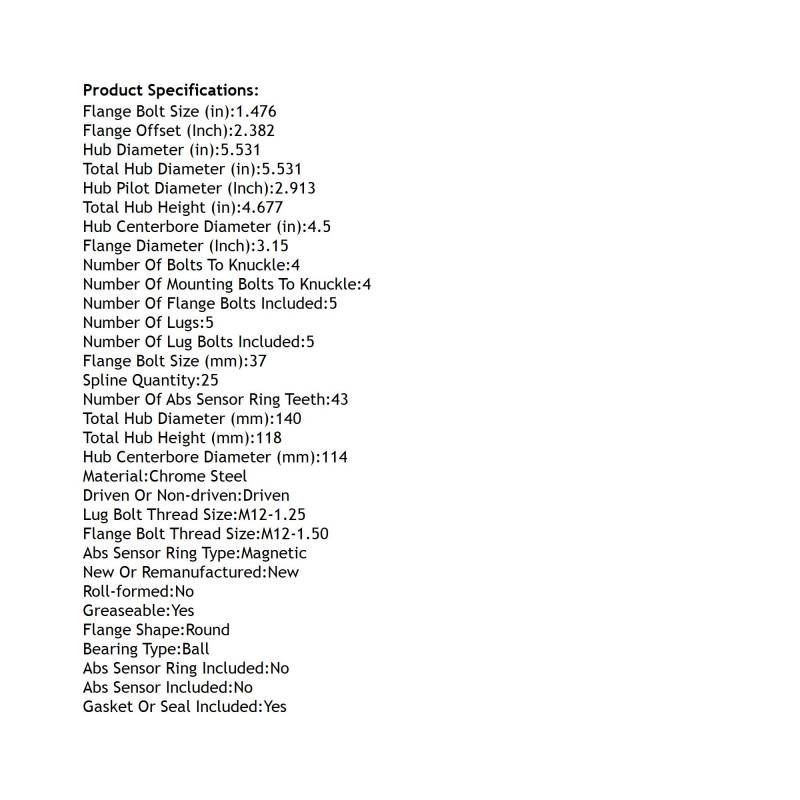

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.476
FLANGE BOLT SIZE (MM): 37
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.15
FLANGE OFFSET (INCH): 2.382
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.531
HUB PILOT DIAMETER (INCH): 2.913
LUG BOLT THREAD SIZE: M12-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 25
TOTAL HUB DIAMETER (IN): 5.531
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 4.677
TOTAL HUB HEIGHT (MM): 118
REPLACES:
AUTOPART INTERNATIONAL: 1411-424847
BCA: WE60466
CENTRIC PARTS: 40163001
FAG US: 102281
MEVOTECH: H512430
MOOG HUB ASSEMBLIES: 512430
NAPA: PBR930724
APPLICATIONS:
CHRYSLER SEBRING (2008-2008)
DODGE AVENGER (2008-2008)
