New Hub Assembly Compatible With Mercedes-Benz Sls Amg Slc43 Amg 3.0L 6.3L 2011 2012 2013 2014 2015

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

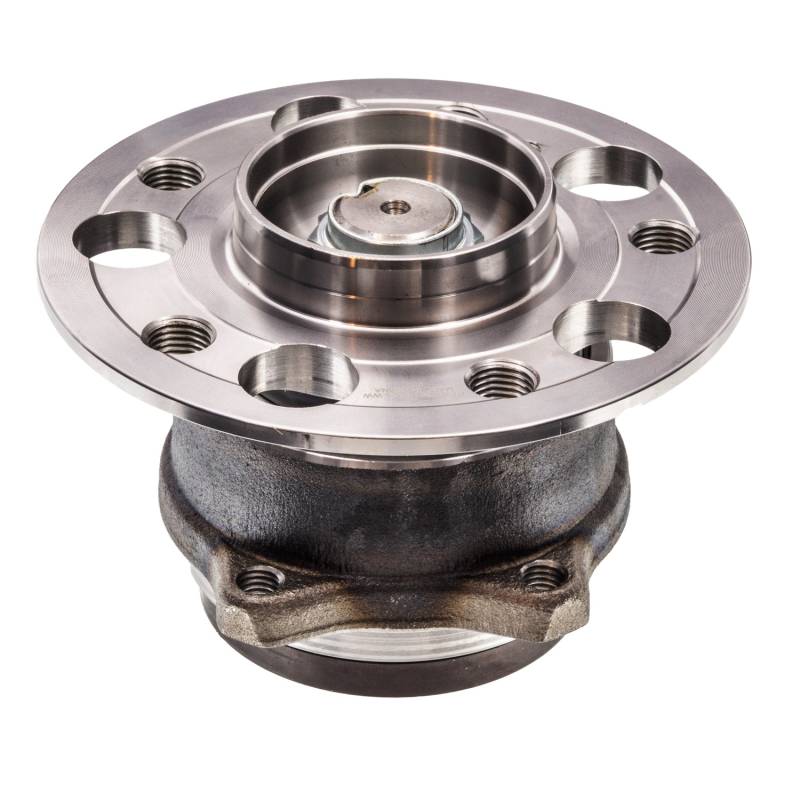

PRODUCT TYPE: HUB ASSEMBLY

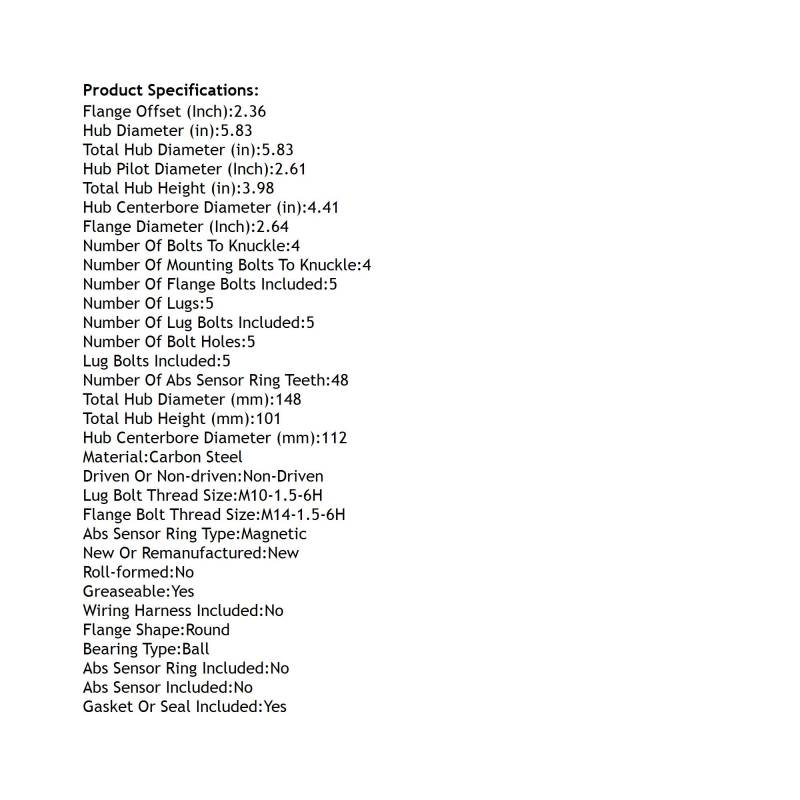

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M14-1.5-6H
FLANGE DIAMETER (INCH): 2.64
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.41
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.83
HUB PILOT DIAMETER (INCH): 2.61
LUG BOLT THREAD SIZE: M10-1.5-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CARBON STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.83
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 3.98
TOTAL HUB HEIGHT (MM): 101
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-479112
CENTRIC PARTS: 40535000
FVP: WH513360
MOOG HUB ASSEMBLIES: 513360

APPLICATIONS:
MERCEDES-BENZ SLS AMG (2011-2015)
MERCEDES-BENZ SLC43 AMG (2017-2020)
