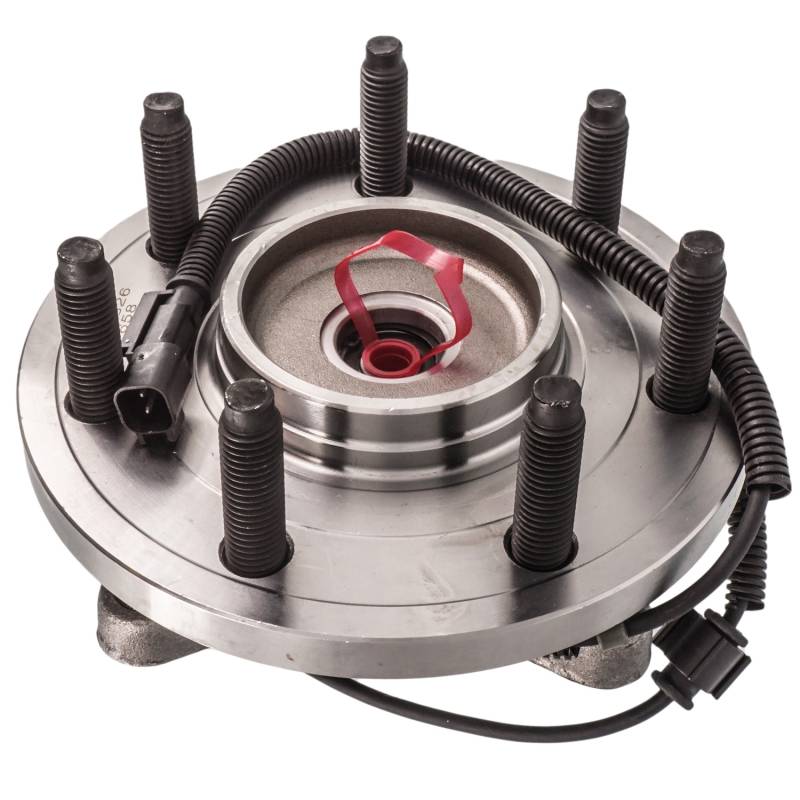

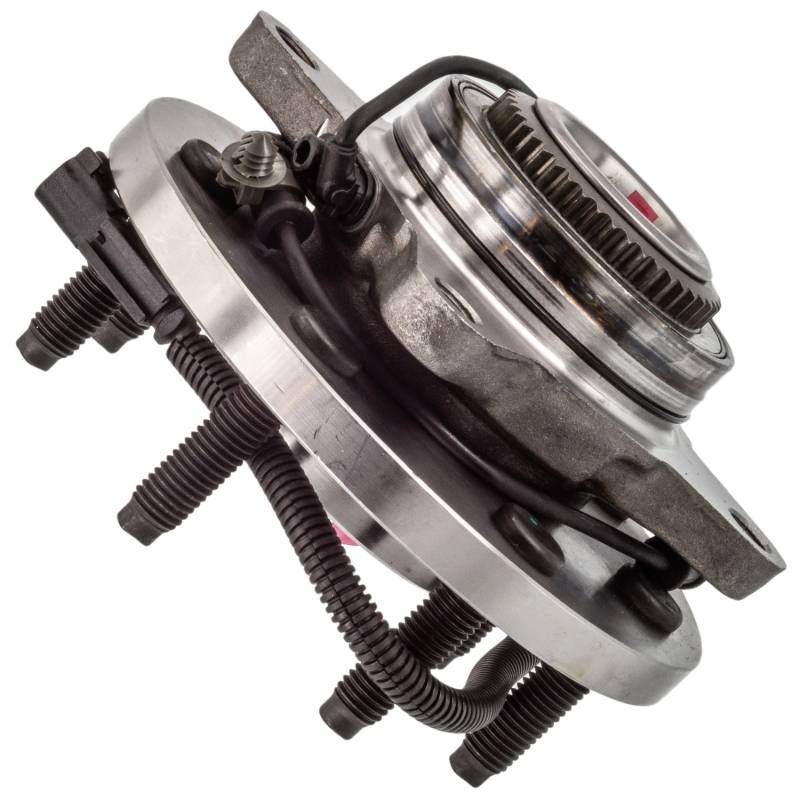

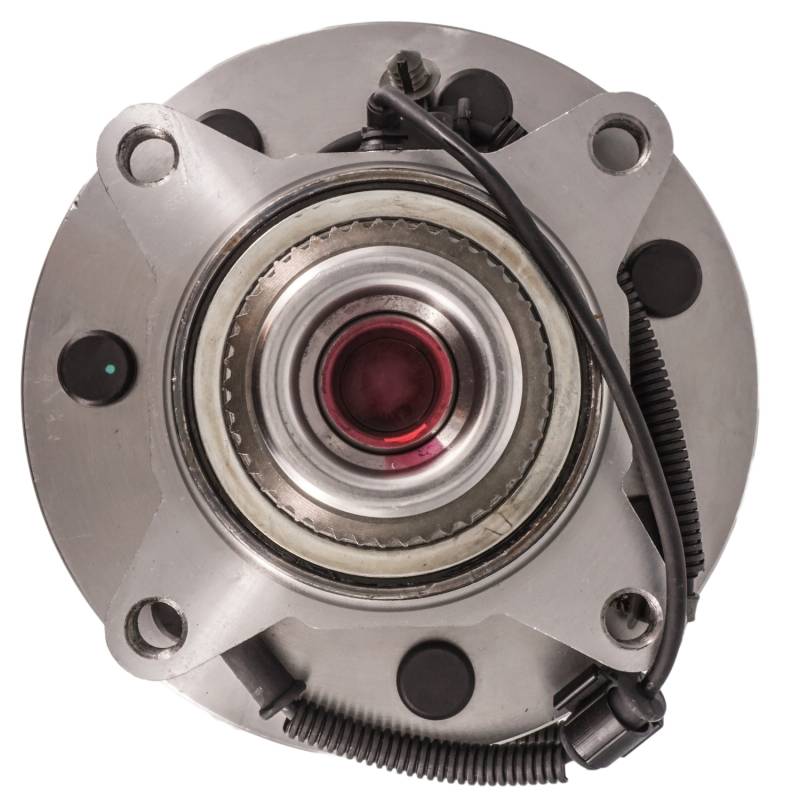

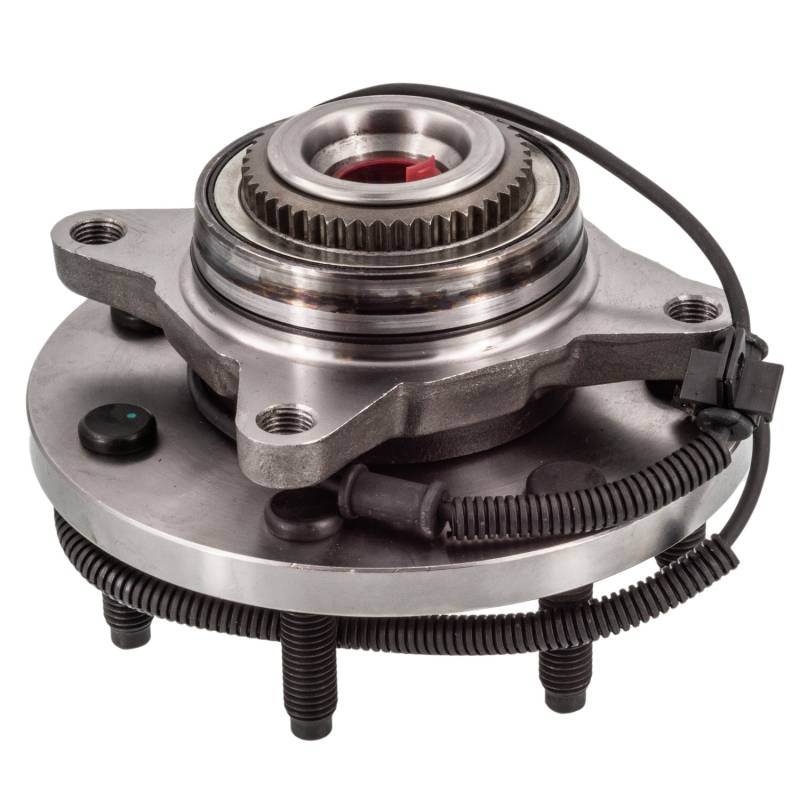

New Hub Assembly Compatible With Ford F-150 2011 2012 2013 2014 By Part Numbers Pt513326 Sp550221

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

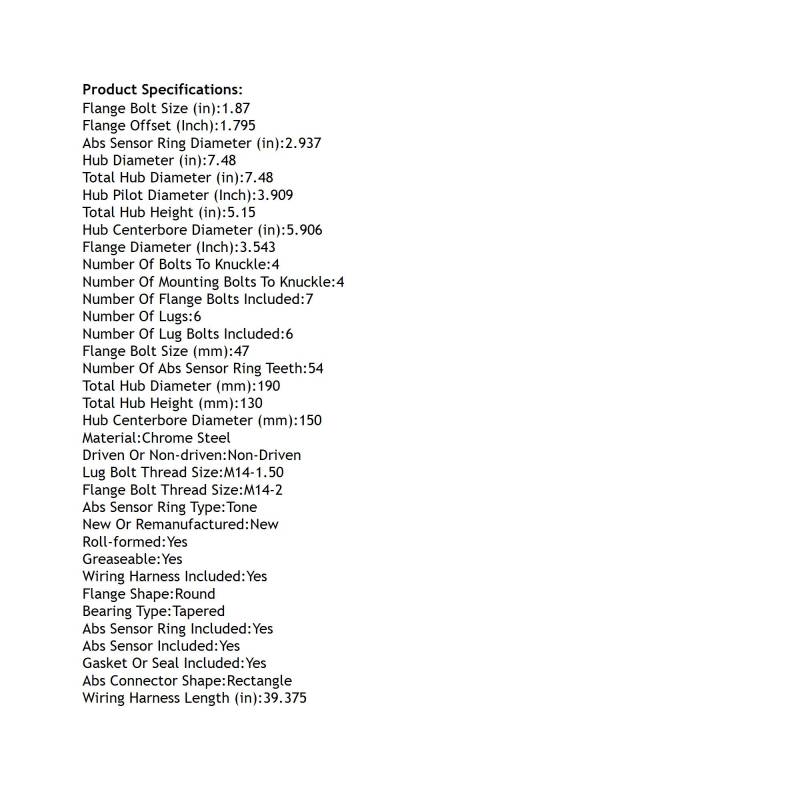

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.937
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.87
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 1.795
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.906
HUB CENTERBORE DIAMETER (MM): 150
HUB DIAMETER (IN): 7.48
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 7
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 7.48
TOTAL HUB DIAMETER (MM): 190
TOTAL HUB HEIGHT (IN): 5.15
TOTAL HUB HEIGHT (MM): 130
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 39.375

REPLACES:
AUTOPART INTERNATIONAL: 1411-480986
BCA: WE61850
CENTRIC PARTS: 40265040
FORD: CL3Z 1104 K
GSP: 114326
MEVOTECH: MB40304
MOOG HUB ASSEMBLIES: 513326
MOTORCRAFT: HUB348 PT513326
NAPA: PBR930801

APPLICATIONS:
FORD F-150 (2011-2014)
