New Hub Assembly Compatible With Ford F-350 Super Duty 2008 2009 2010 By Part Numbers Sp940204

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

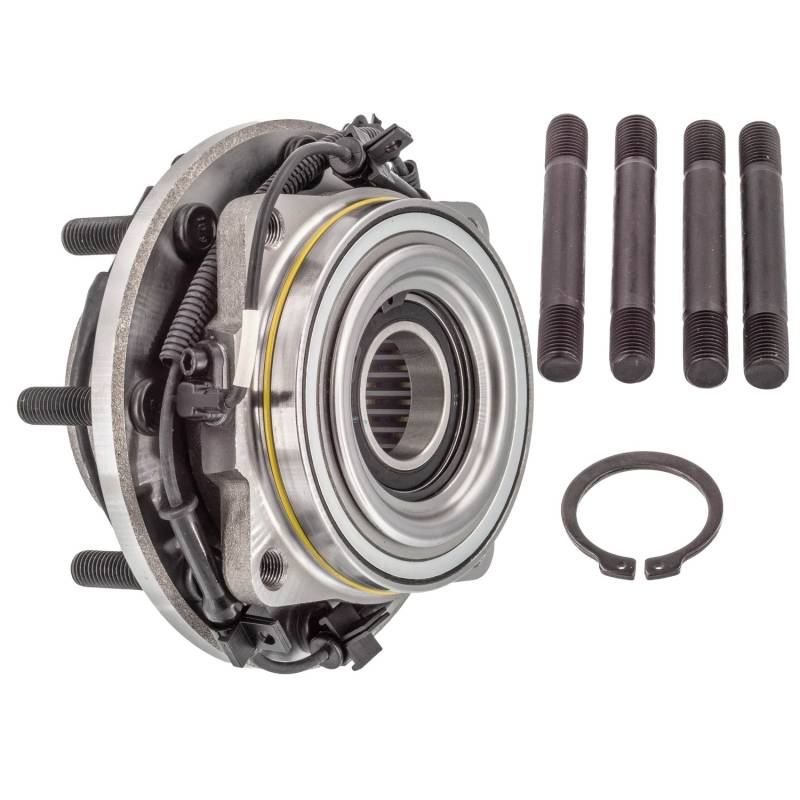

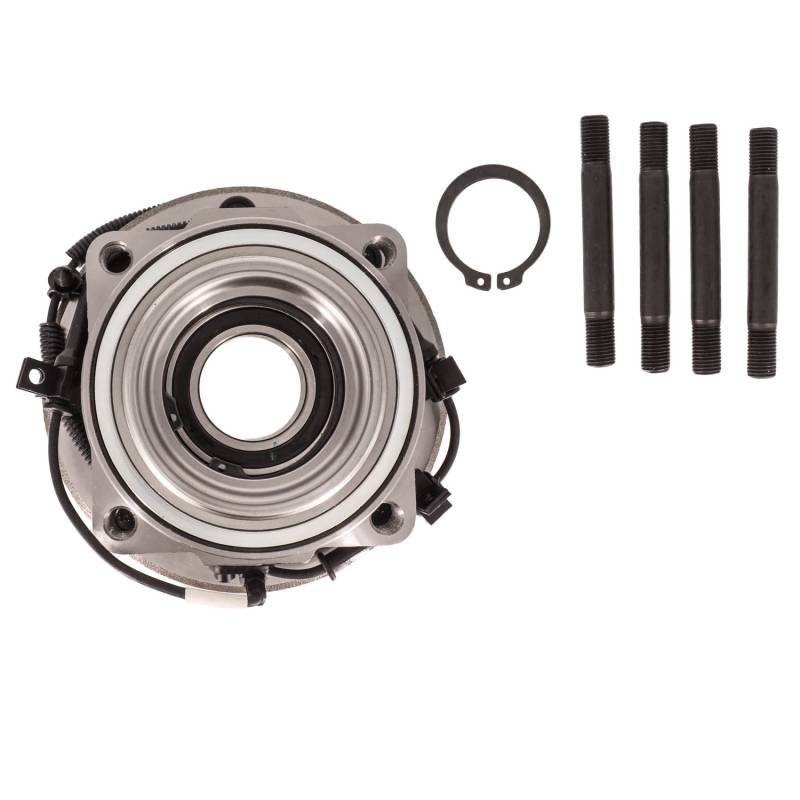

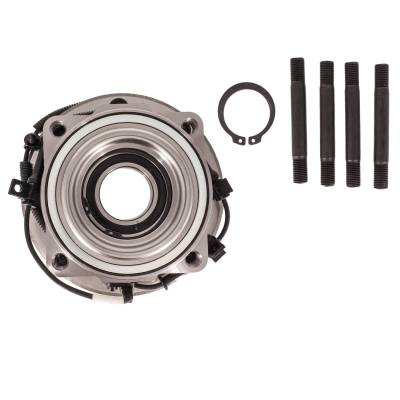

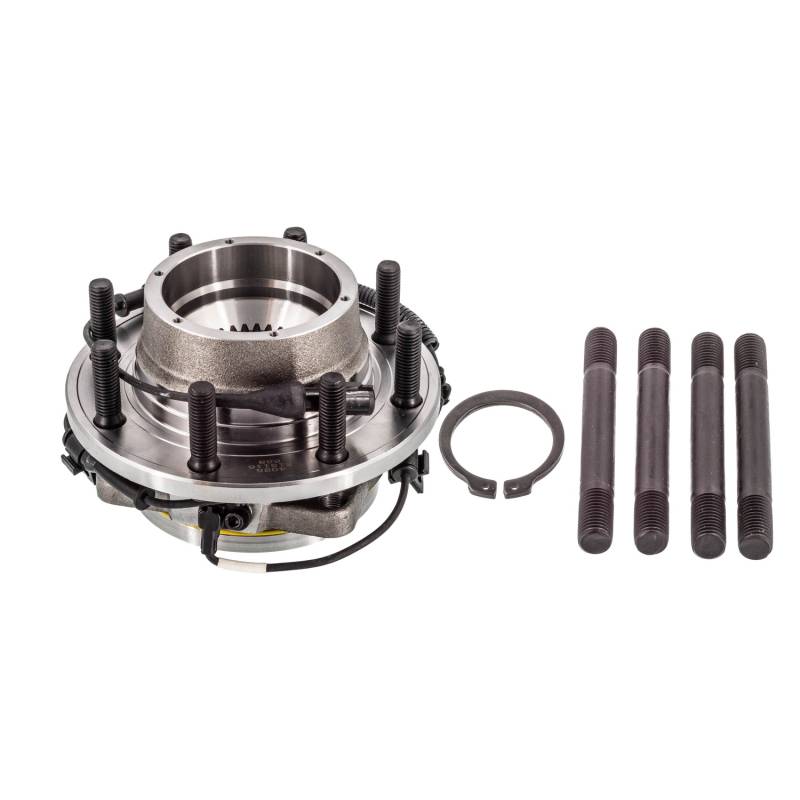

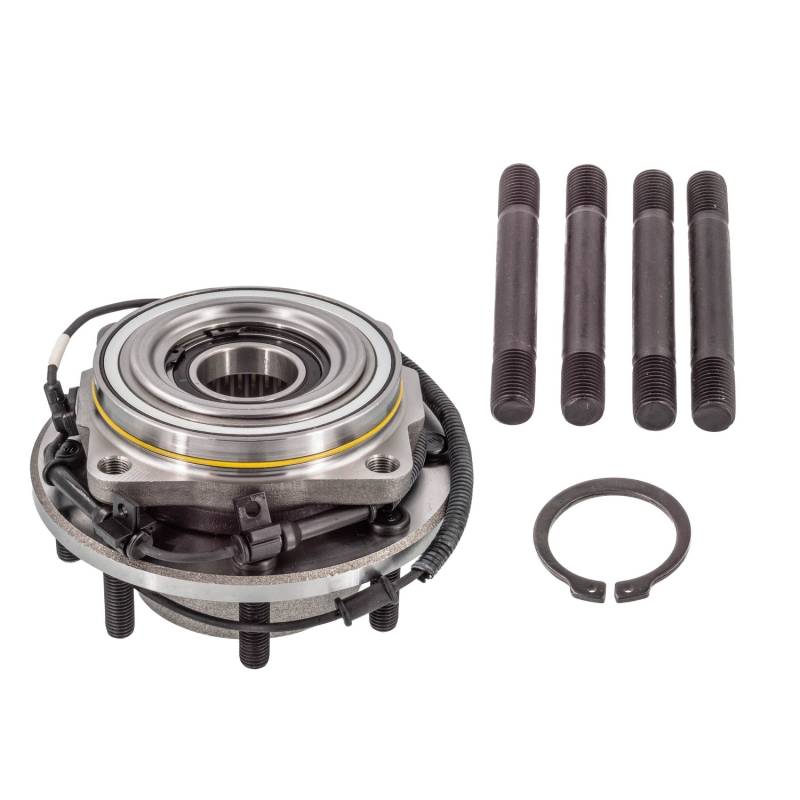

PRODUCT TYPE: HUB ASSEMBLY

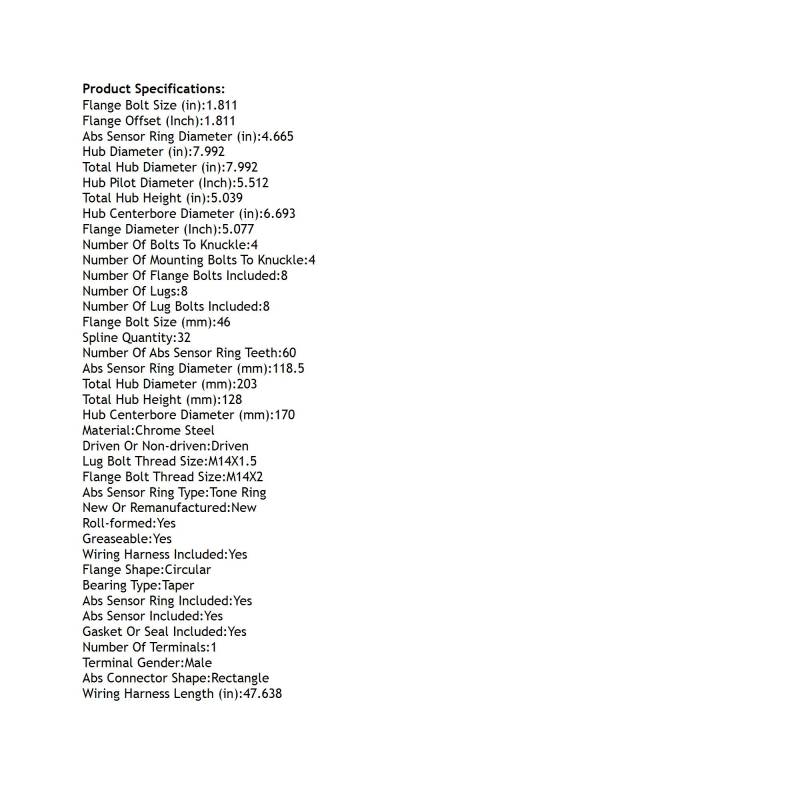

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.665
ABS SENSOR RING DIAMETER (MM): 118.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.811
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 5.077
FLANGE OFFSET (INCH): 1.811
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.693
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.992
HUB PILOT DIAMETER (INCH): 5.512
LUG BOLT THREAD SIZE: M14X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.992
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 5.039
TOTAL HUB HEIGHT (MM): 128
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.638

REPLACES:
AUTOPART INTERNATIONAL: 1411-420412
BCA: WE61404
CENTRIC PARTS: 40265031
FAG US: 102164
FORD: AC3Z 1104 E
GSP: 126116
MEVOTECH: H515116
MOOG HUB ASSEMBLIES: 515116
MOTORCRAFT: HUB157
NAPA: PBR930796

APPLICATIONS:
FORD F-350 SUPER DUTY (2008-2010)
