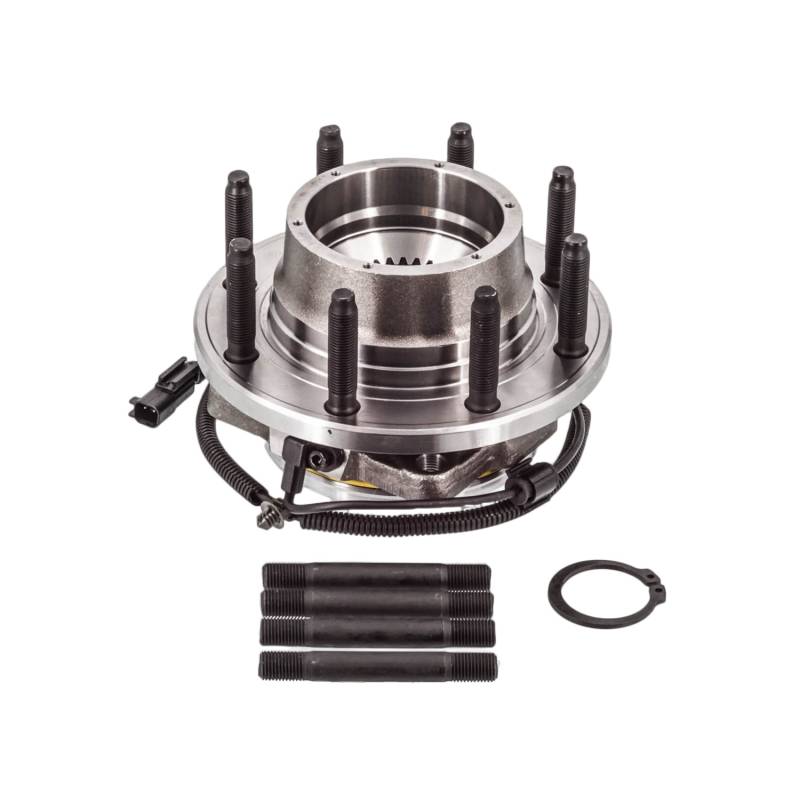

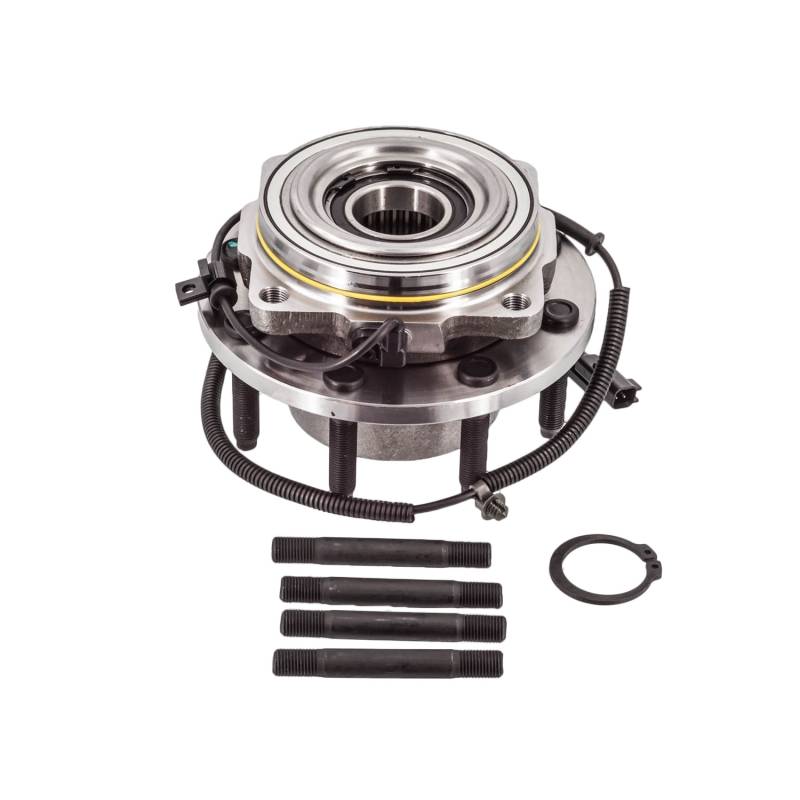

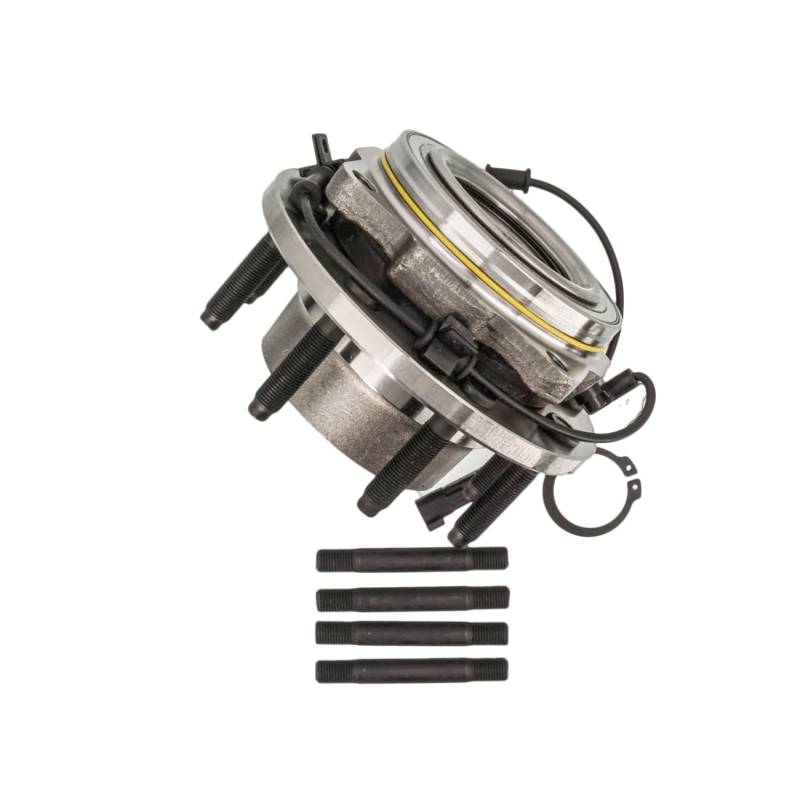

New Hub Assembly Compatible With Ford F-250 Super Duty F-350 Super Duty 6.2L 6.7L 2011 2012 2013

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

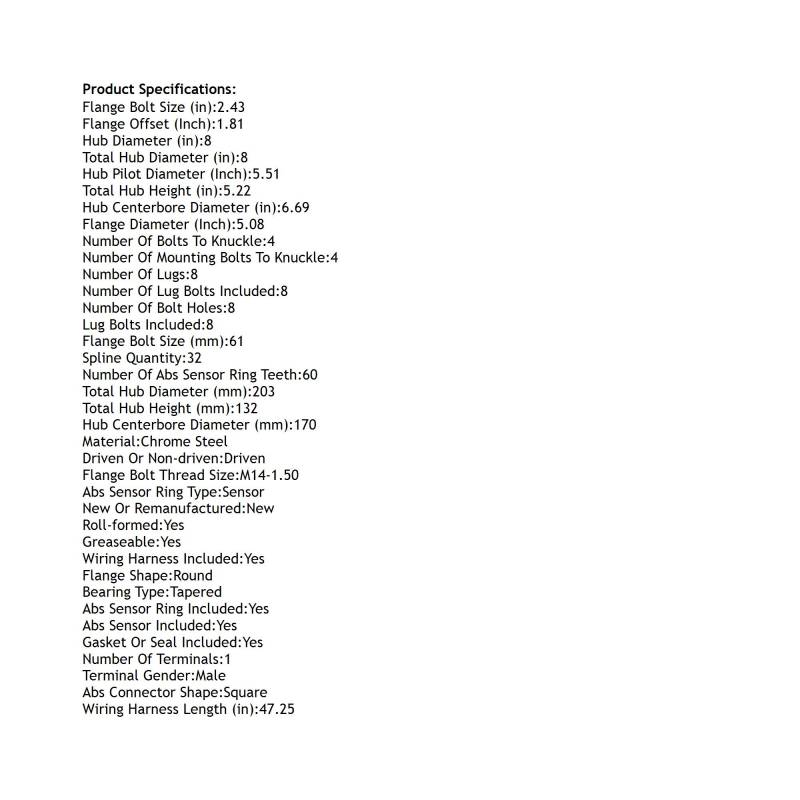

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.43
FLANGE BOLT SIZE (MM): 61
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 5.08
FLANGE OFFSET (INCH): 1.81
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 8
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 8
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 5.22
TOTAL HUB HEIGHT (MM): 132
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.25

REPLACES:
AUTOPART INTERNATIONAL: 1411-480978
BCA: WE60626
CENTRIC PARTS: 40265035
FAG US: 102244
FORD: DC3Z 1104 J DC3Z1104A
GSP: 116130
MEVOTECH: MB40306
MOOG HUB ASSEMBLIES: 515130
MOTORCRAFT: HUB212 HUB327 HUB402 PT515130 BC3Z1109D DC3Z1104A
NAPA: PBR930793

APPLICATIONS:
FORD F-250 SUPER DUTY (2011-2016)
FORD F-350 SUPER DUTY (2011-2016)
