THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

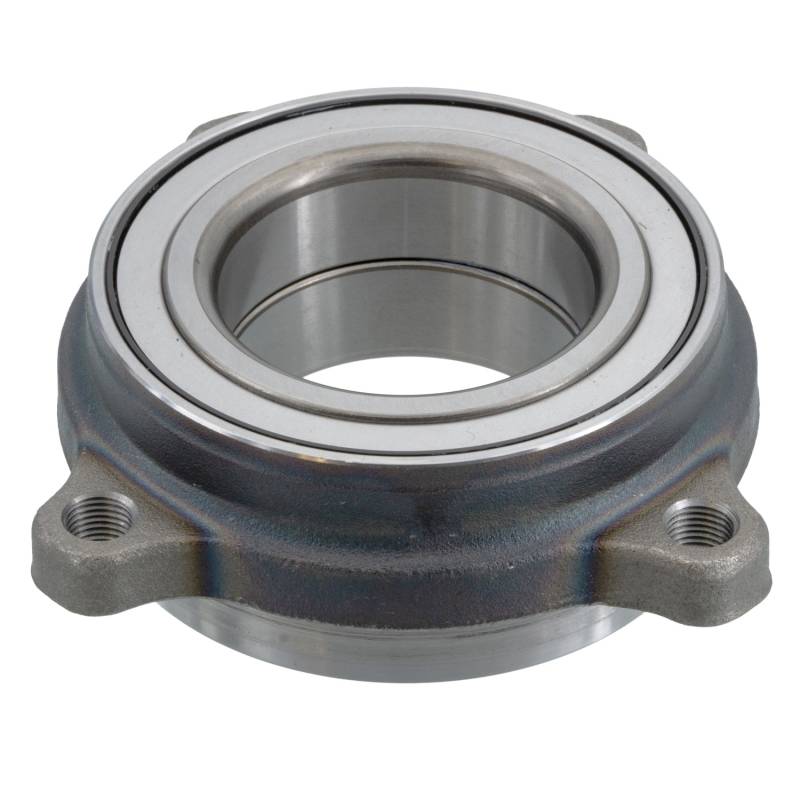

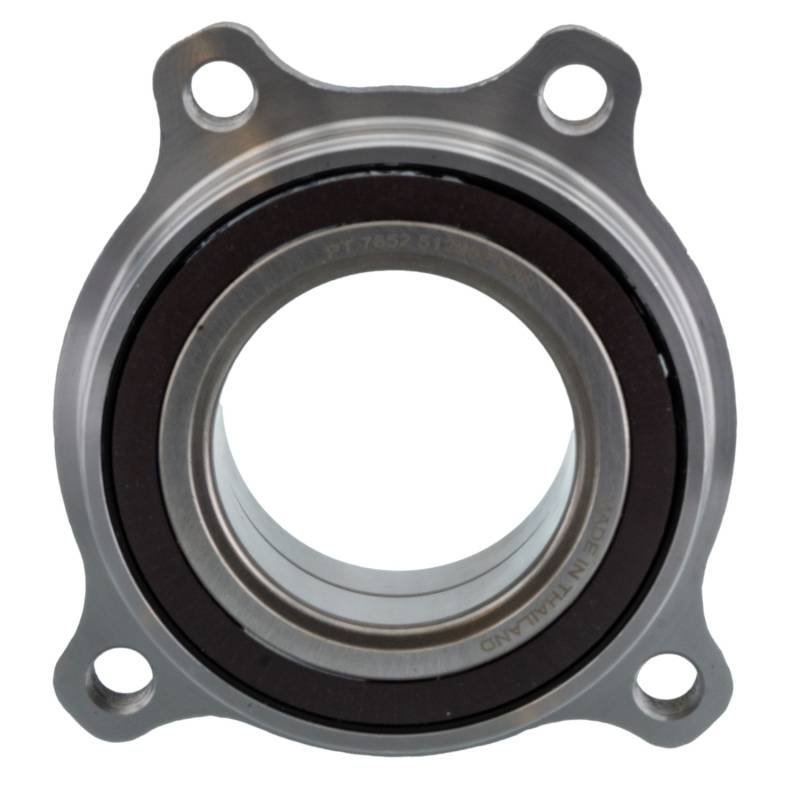

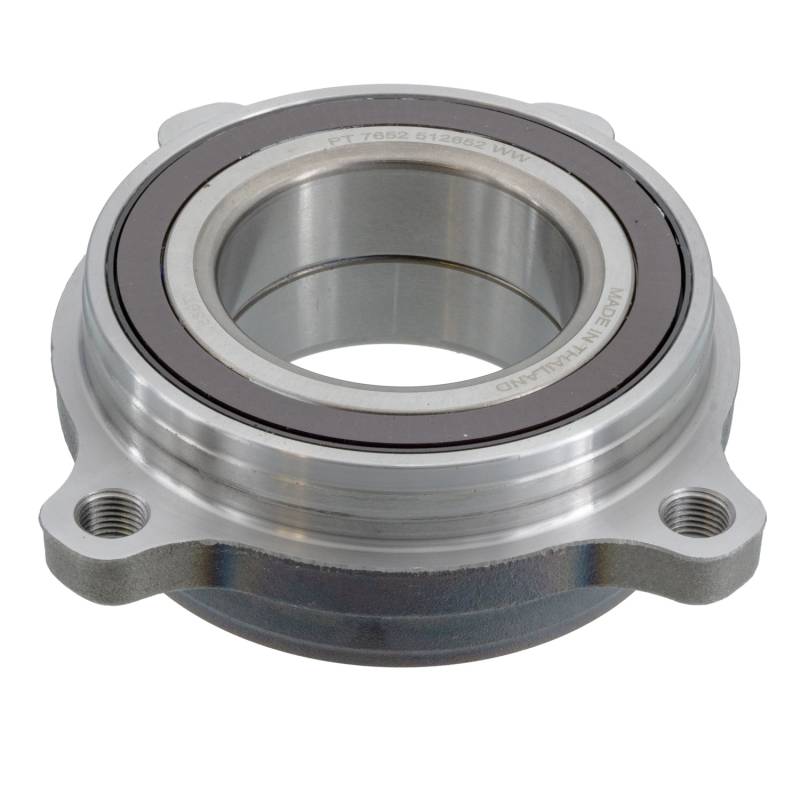

PRODUCT TYPE: HUB ASSEMBLY

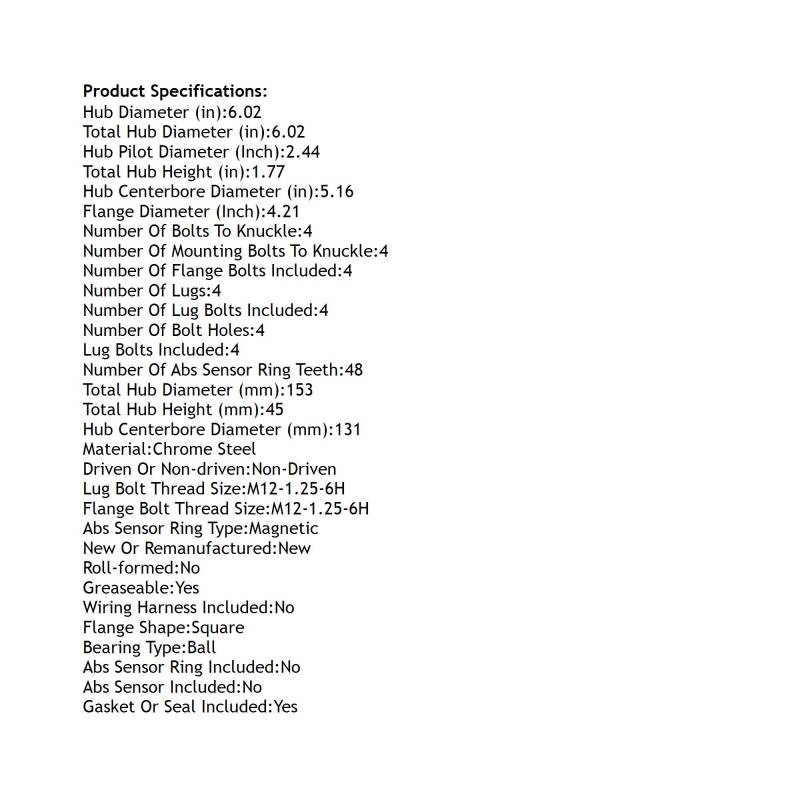

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M12-1.25-6H
FLANGE DIAMETER (INCH): 4.21
FLANGE SHAPE: SQUARE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.16
HUB CENTERBORE DIAMETER (MM): 131
HUB DIAMETER (IN): 6.02
HUB PILOT DIAMETER (INCH): 2.44
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.02
TOTAL HUB DIAMETER (MM): 153
TOTAL HUB HEIGHT (IN): 1.77
TOTAL HUB HEIGHT (MM): 45
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1410-633059
MOOG HUB ASSEMBLIES: 512652
APPLICATIONS:
AUDI Q7 (2017-2023)
AUDI Q8 (2019-2023)
AUDI E-TRON QUATTRO (2019-2023)
AUDI RS Q8 (2020-2023)
AUDI SQ8 (2020-2023)
AUDI E-TRON SPORTBACK (2020-2023)
AUDI E-TRON S SPORTBACK (2022-2023)
AUDI E-TRON S (2022-2023)
AUDI SQ7 (2023-2023)
