New Hub Assembly Compatible With Toyota Tundra 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

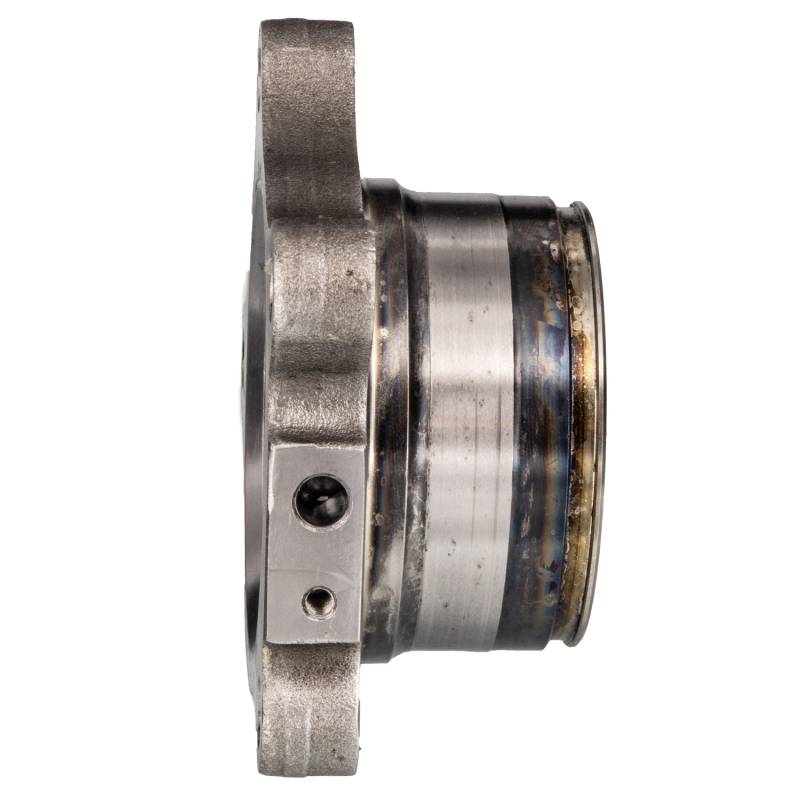

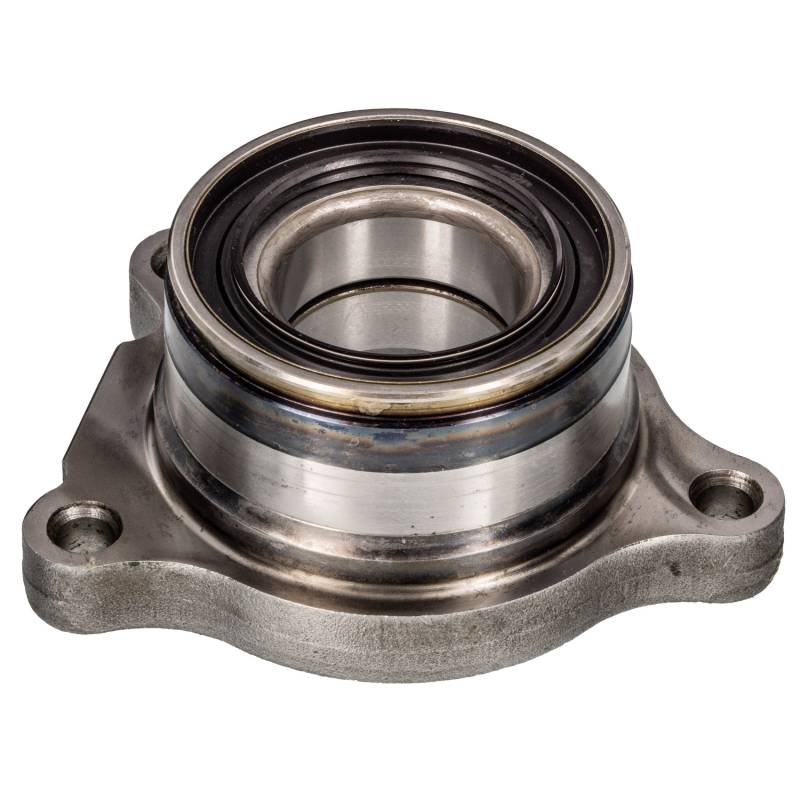

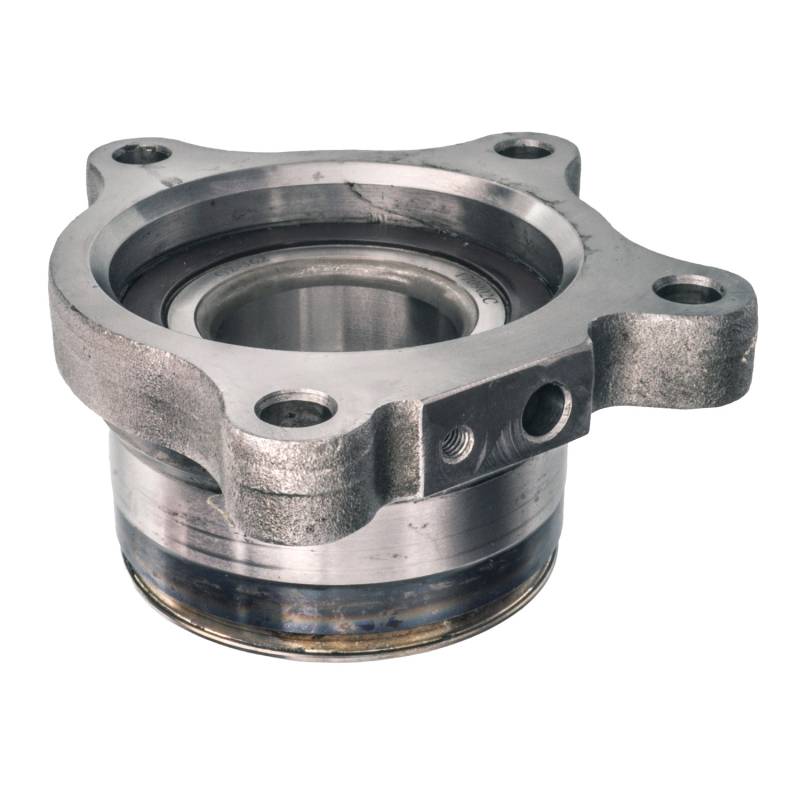

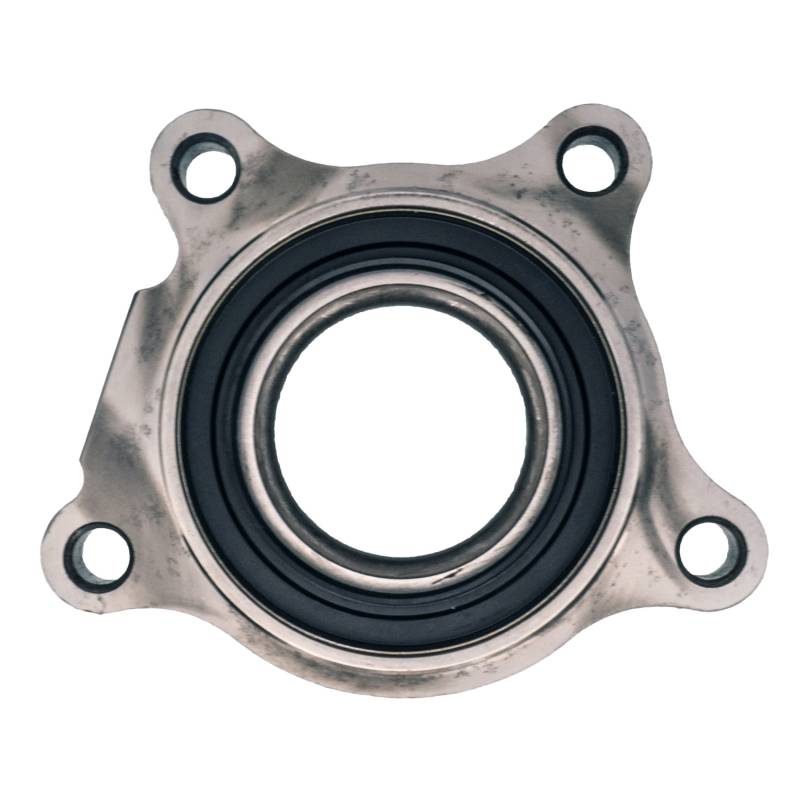

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

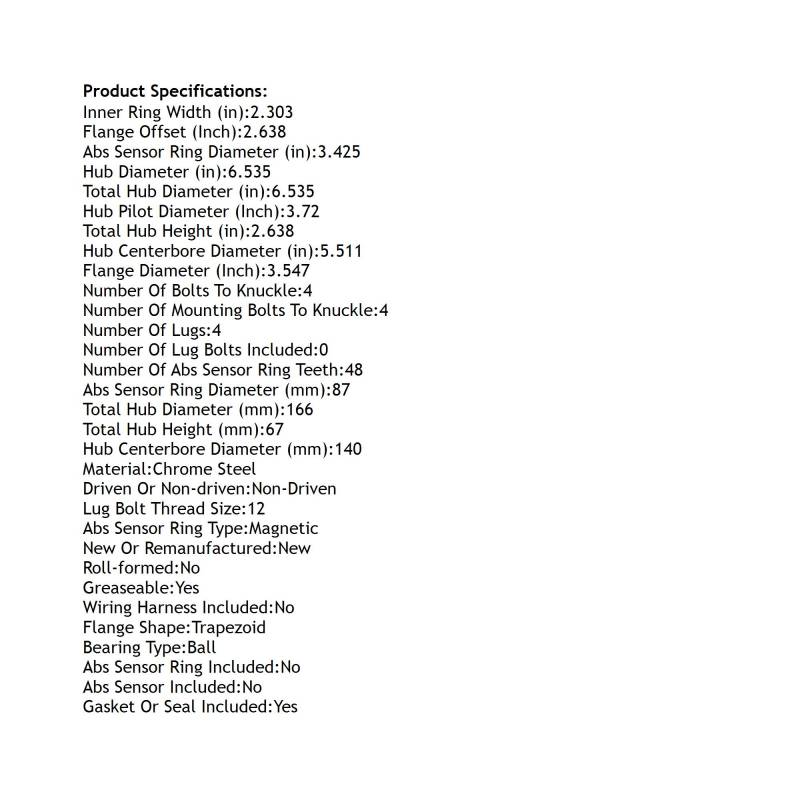

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 3.425
ABS SENSOR RING DIAMETER (MM): 87
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE DIAMETER (INCH): 3.547
FLANGE OFFSET (INCH): 2.638
FLANGE SHAPE: TRAPEZOID
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.511
HUB CENTERBORE DIAMETER (MM): 140
HUB DIAMETER (IN): 6.535
HUB PILOT DIAMETER (INCH): 3.72
INNER RING WIDTH (IN): 2.303
LUG BOLT THREAD SIZE: 12
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.535
TOTAL HUB DIAMETER (MM): 166
TOTAL HUB HEIGHT (IN): 2.638
TOTAL HUB HEIGHT (MM): 67
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512352
SKF: BR930617
TIMKEN: BM500016
AUTOPART INTERNATIONAL: 1411-258935
BCA: WE61487
BECK/ARNLEY: 051-4184
CENTRIC PARTS: 40544015
FAG US: 102535
GSP: 493352
MEVOTECH: H512351
MOOG HUB ASSEMBLIES: 512352

APPLICATIONS:
TOYOTA TUNDRA (2007-2021)
